Intake Manifold Removal Note

  1. Remove the MAP sensor/IAT sensor No.2. (See MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR/INTAKE AIR TEMPERATURE (IAT) SENSOR NO.2 REMOVAL/INSTALLATION ).
  2. Disconnect the harness clip from the intake manifold as shown in the figure.

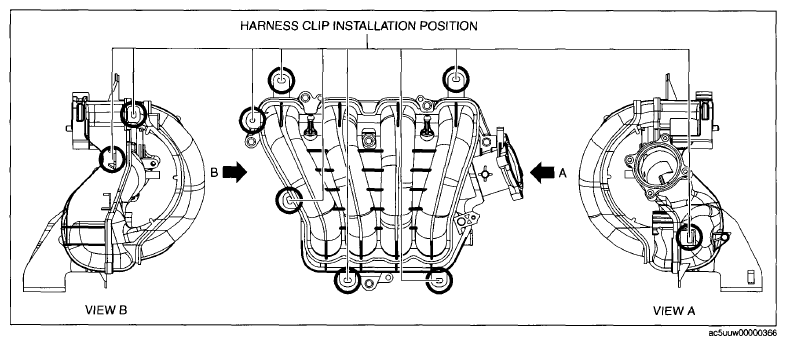

    Fig 1: Identifying Harness Clip Installation Position
    G09074401
  3. Remove the intake manifold.
