Starting System Location Index

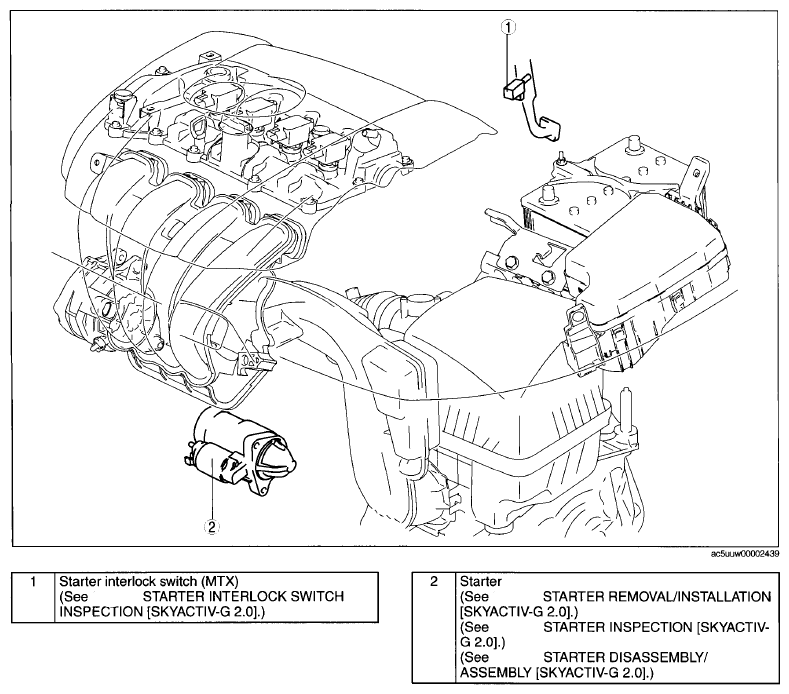

Fig 1: Identifying Starter Interlock Switch (MTX) And Starter

G09074509
