Relay Location

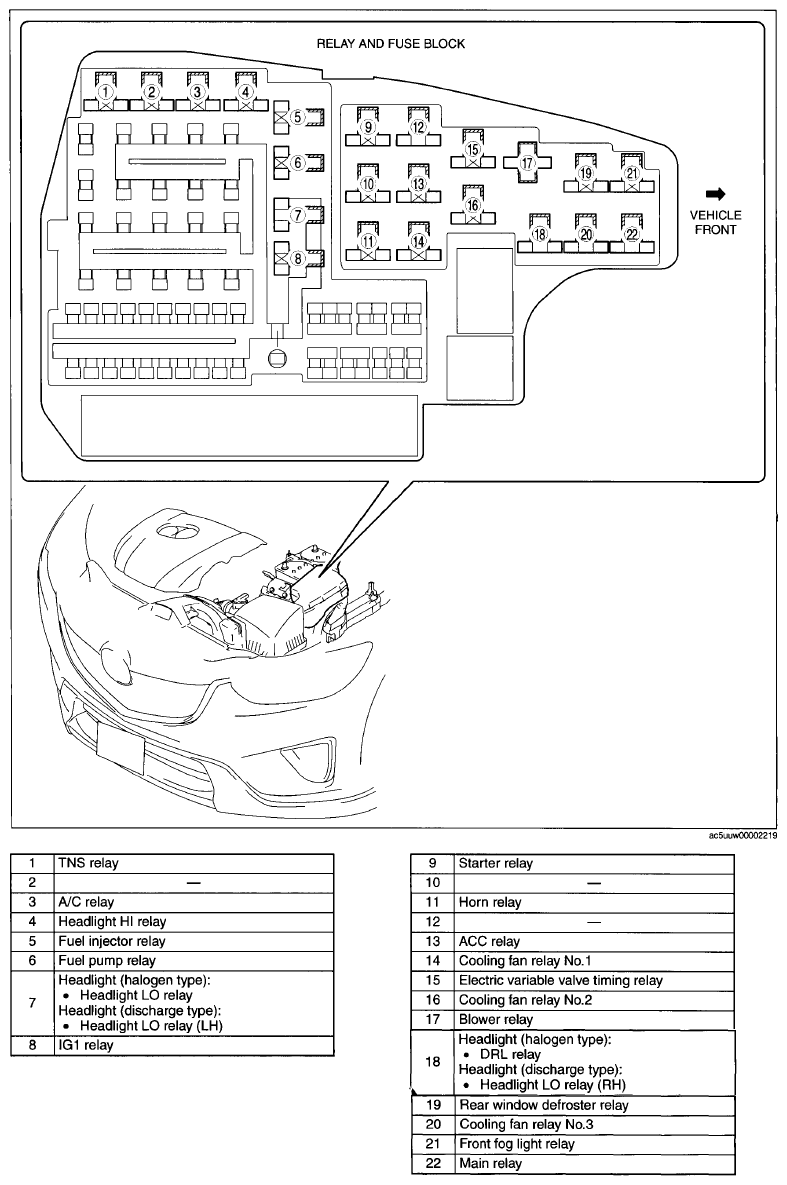

Fig 1: Identifying Relay And Fuse Block Relays

Courtesy of MAZDA MOTORS CORP.

ENGINE ROOM RELAY AND FUSE BLOCK RELAY IDENTIFICATION

RELAY DESCRIPTION
TNS Relay
A/C Relay
Headlaght Hi Relay
Fuel Injector Relay
Fuel Pump Relay
Headlight Lo Relay
IG1 Relay
Starter Relay
Horn Relay
ACC Relay
Cooling Fan Relay No. 1
Electric Variable Valve Timing Relay
Cooling Fan Relay No. 2
Blower Relay
DRL Relay
Rear Window Defroster Relay
Cooling Fan Relay No. 3
Front Fog Light Relay
Main Relay
