Keyless Receiver Removal/Installation

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0] ).
  2. Remove the following parts:
    1. Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION ).
    2. Trunk side trim (LH) (See TRUNK SIDE TRIM REMOVAL/INSTALLATION ).
  3. Disconnect the connector.
  4. Remove the bolts.
  5. Remove the keyless receiver.
  6. Install in the reverse order of removal.

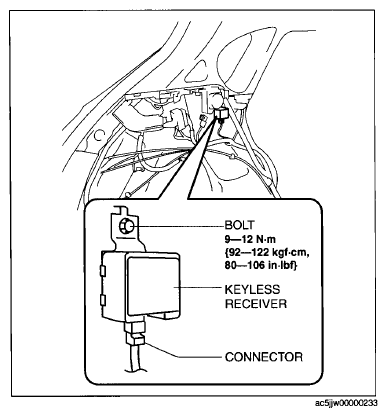

    Fig 1: Keyless Receiver, Connector And Bolt With Torque Specifications
    G09077091
