Vehicle harness-side connector

The viewing direction of vehicle harness-side connectors is from the harness side.

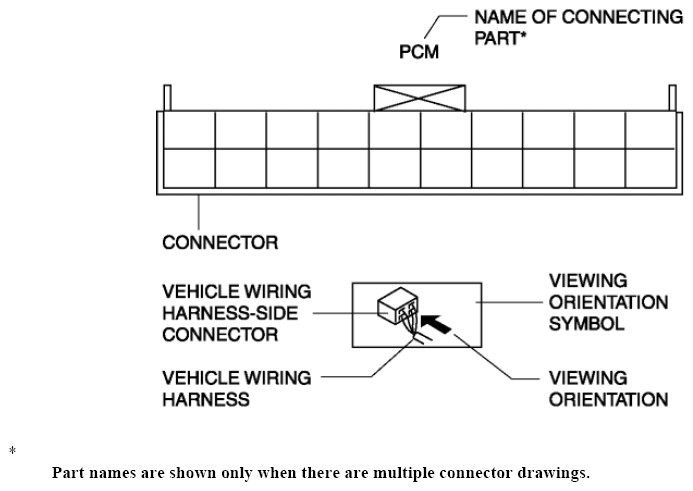

Fig 1: Identifying Vehicle Harness-Side Connector
G08140068

* Part names are shown only when there are multiple connector drawings.
