Automatic Transaxle Control System (FS5A-El)

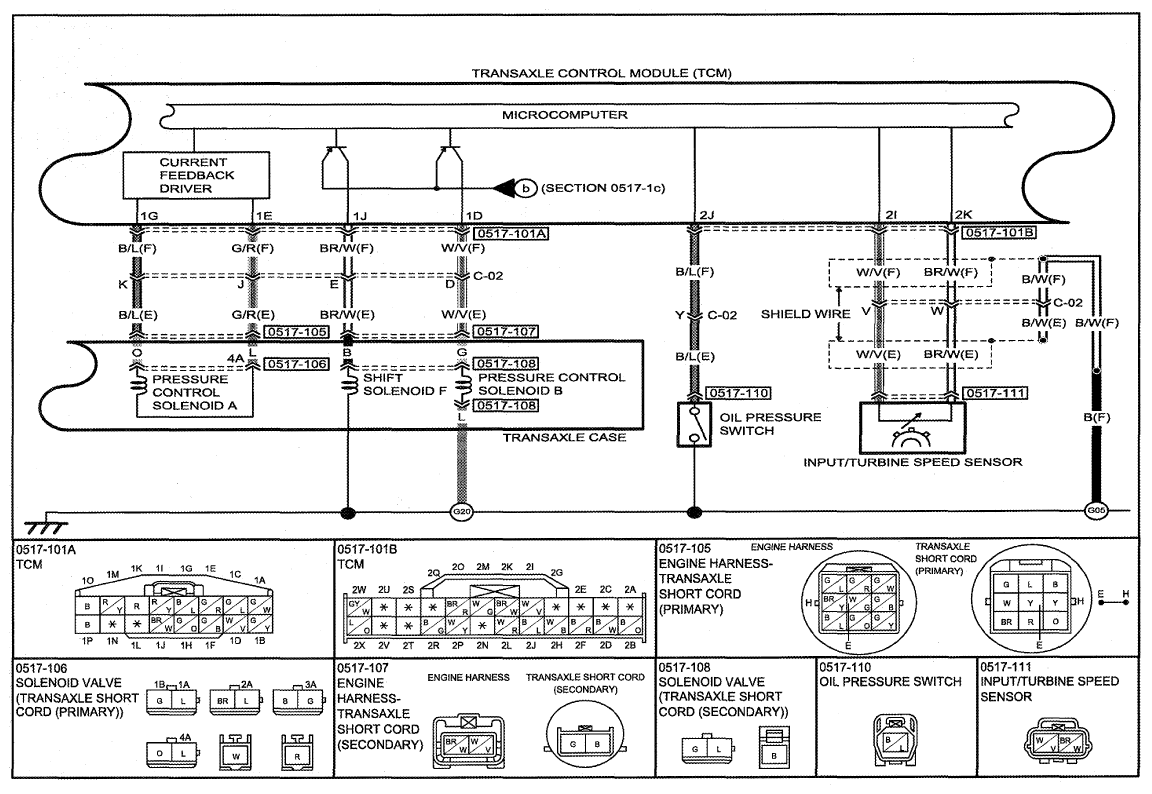

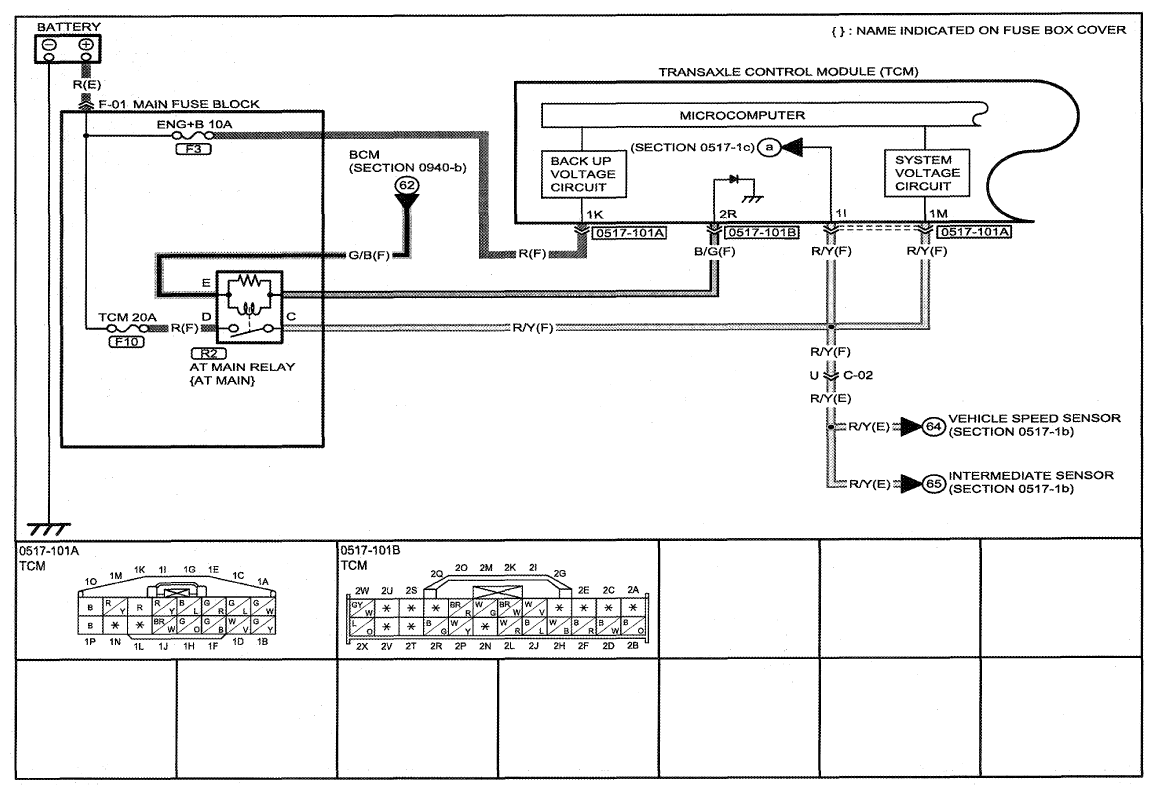

Fig 1: Automatic Transaxle Control System (FS5A-EL) Wiring Diagram (0517-1a); 1 Of 2

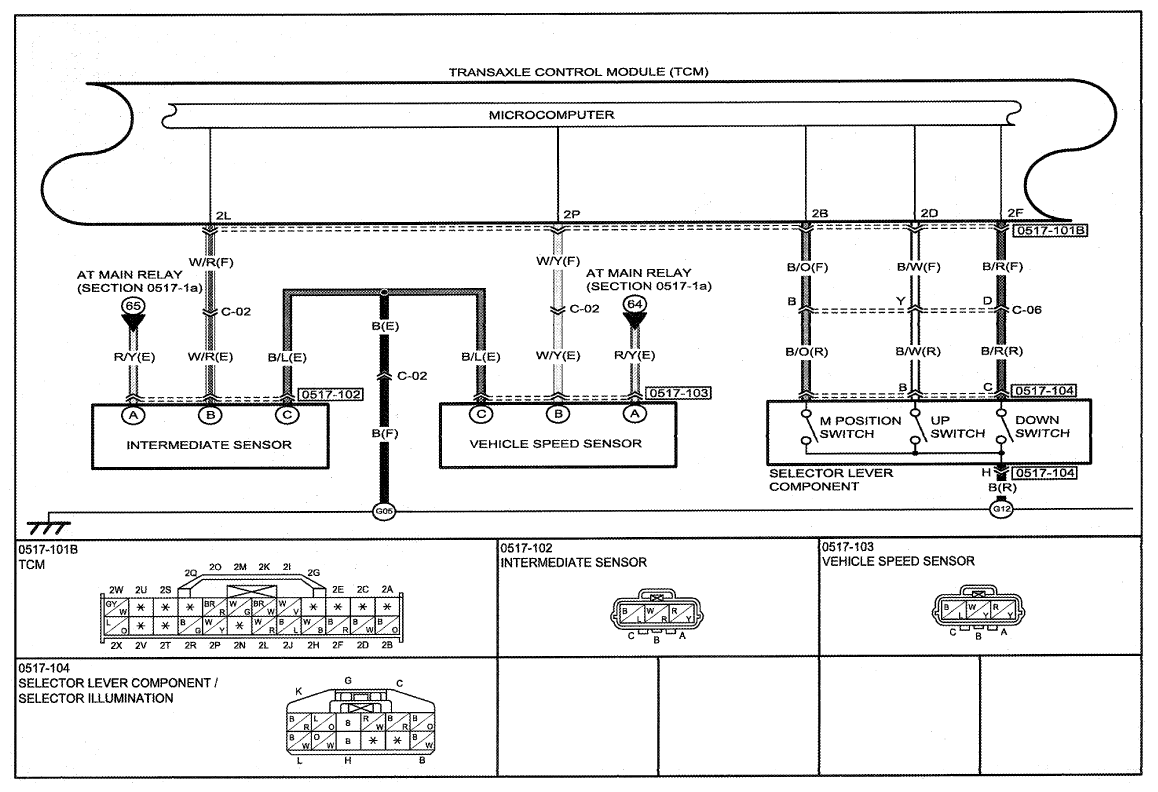

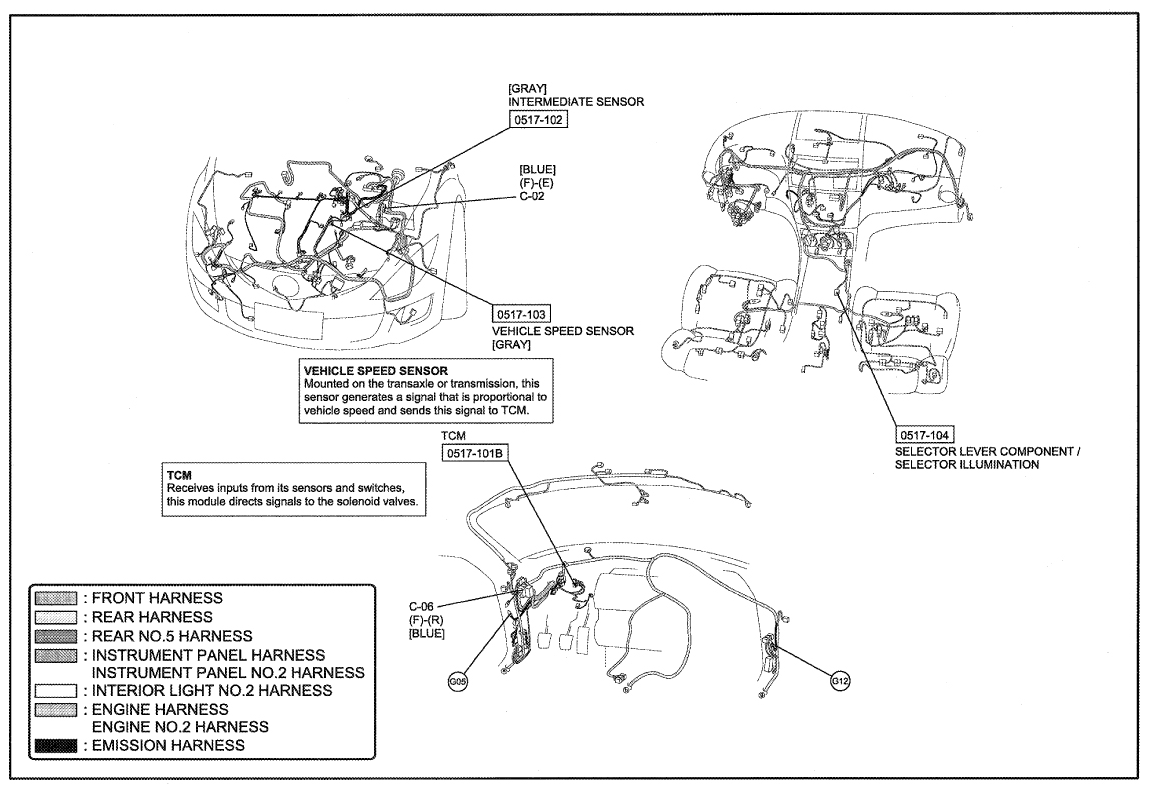

Fig 2: Automatic Transaxle Control System (FS5A-EL) Wiring Diagram (0517-1a); 2 Of 2

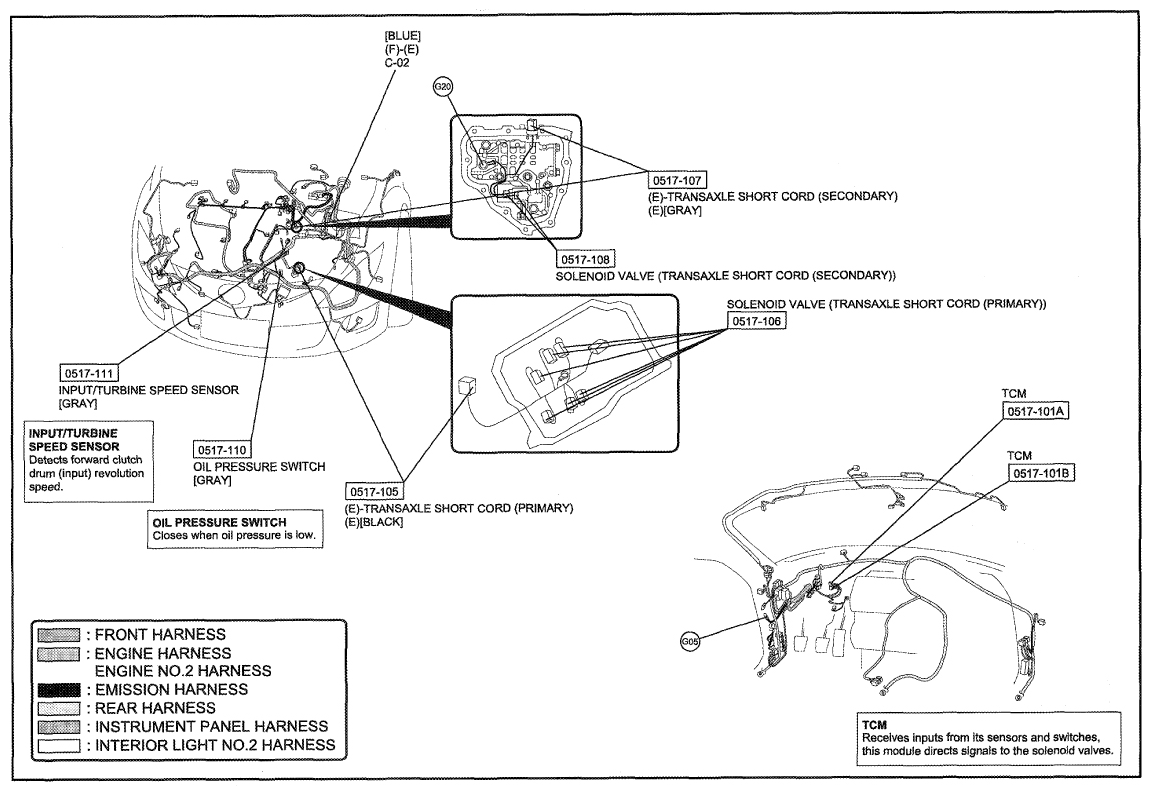

Fig 3: Automatic Transaxle Control System (FS5A-EL) Wiring Diagram (0517-1b); 1 Of 2

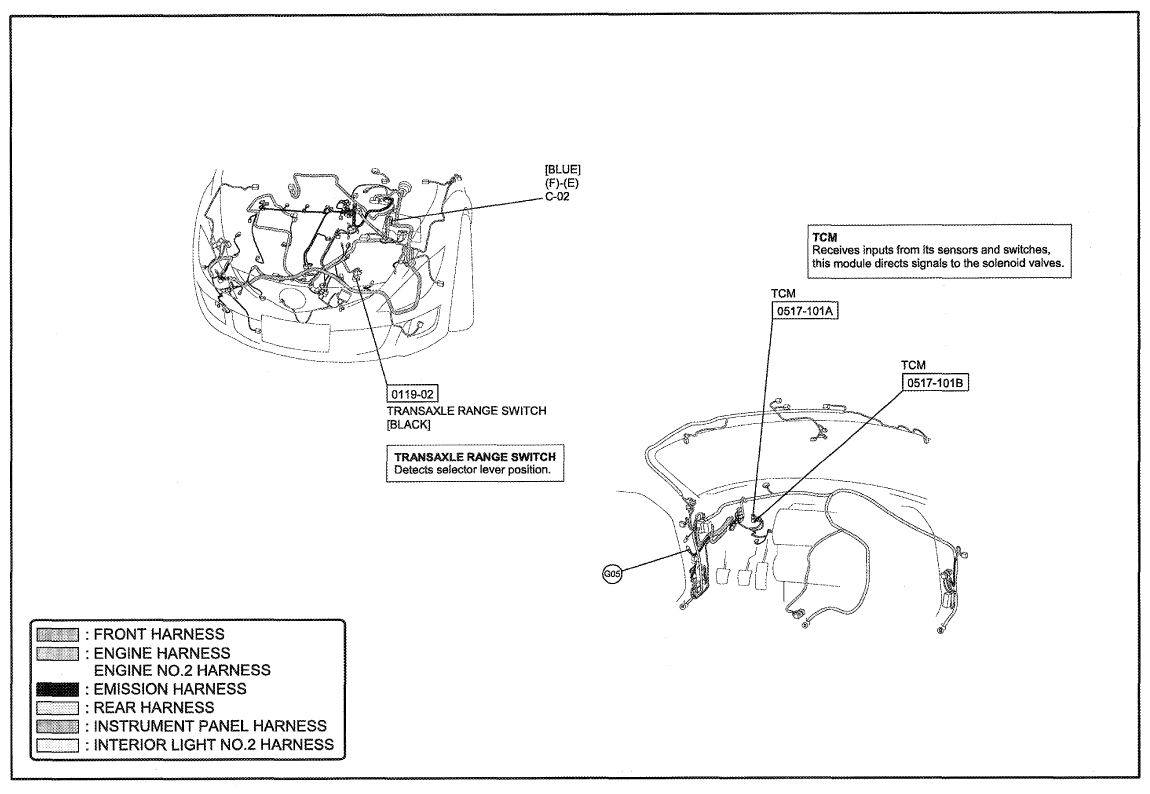

Fig 4: Automatic Transaxle Control System (FS5A-EL) Wiring Diagram (0517-1b); 2 Of 2

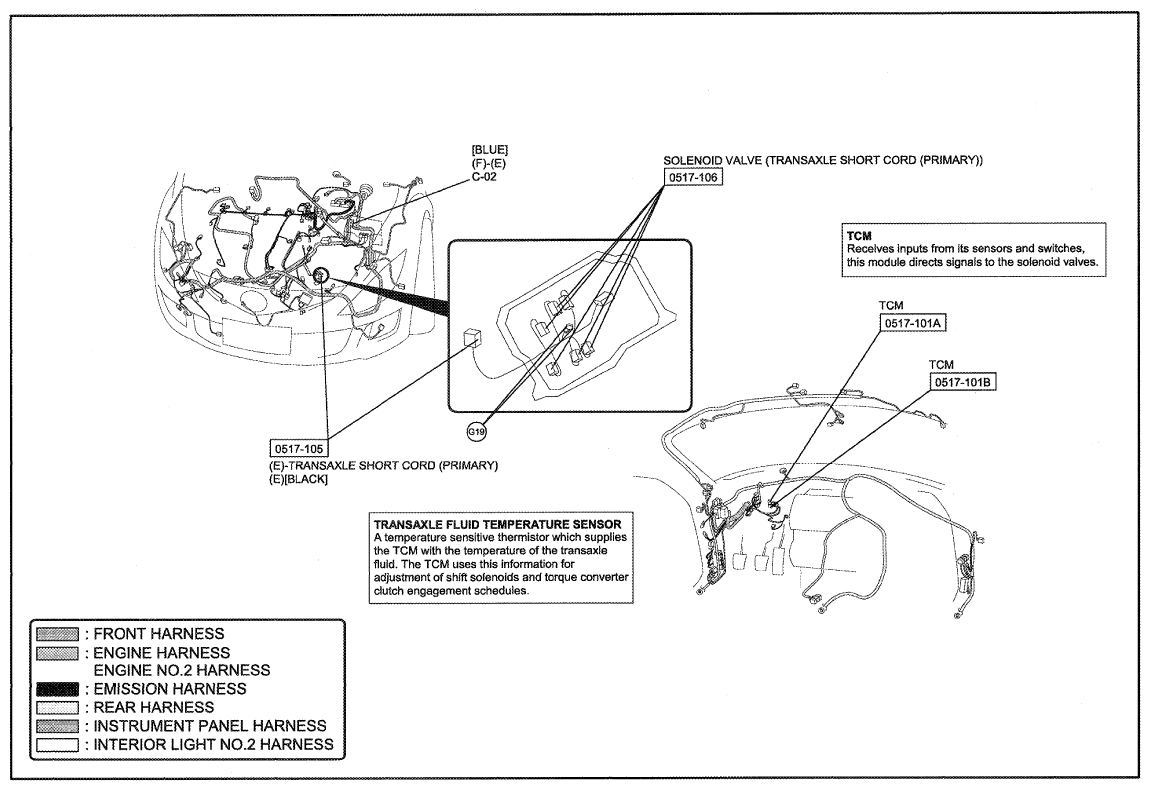

Fig 5: Automatic Transaxle Control System (FS5A-EL) Wiring Diagram (0517-1c); 1 Of 2

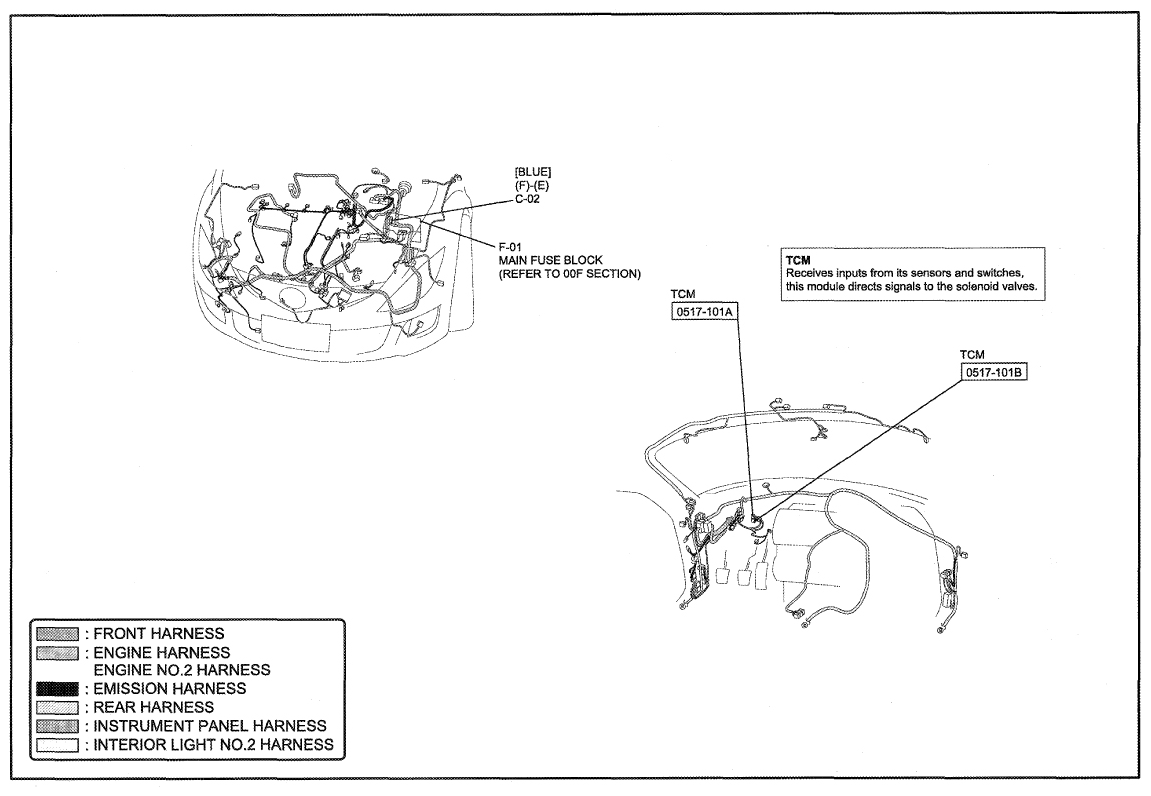

Fig 6: Automatic Transaxle Control System (FS5A-EL) Wiring Diagram (0517-1c); 2 Of 2

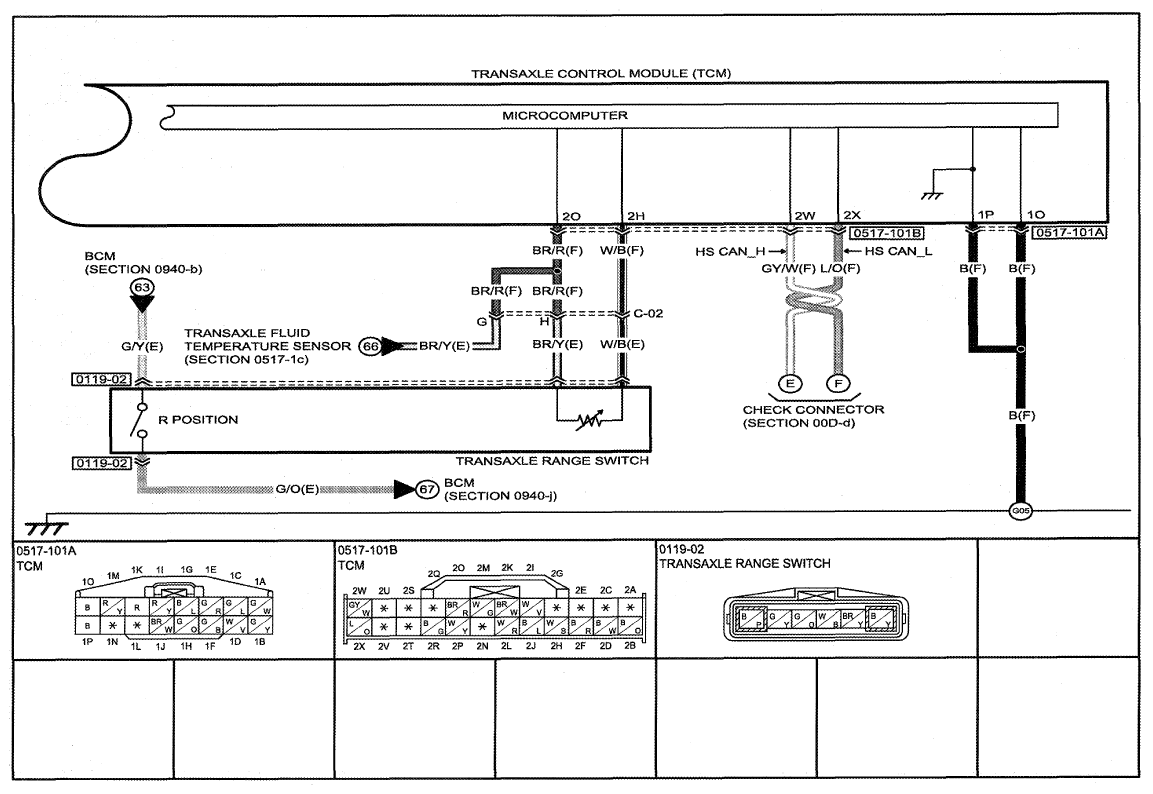

Fig 7: Automatic Transaxle Control System (FS5A-EL) Wiring Diagram (0517-1d); 1 Of 2

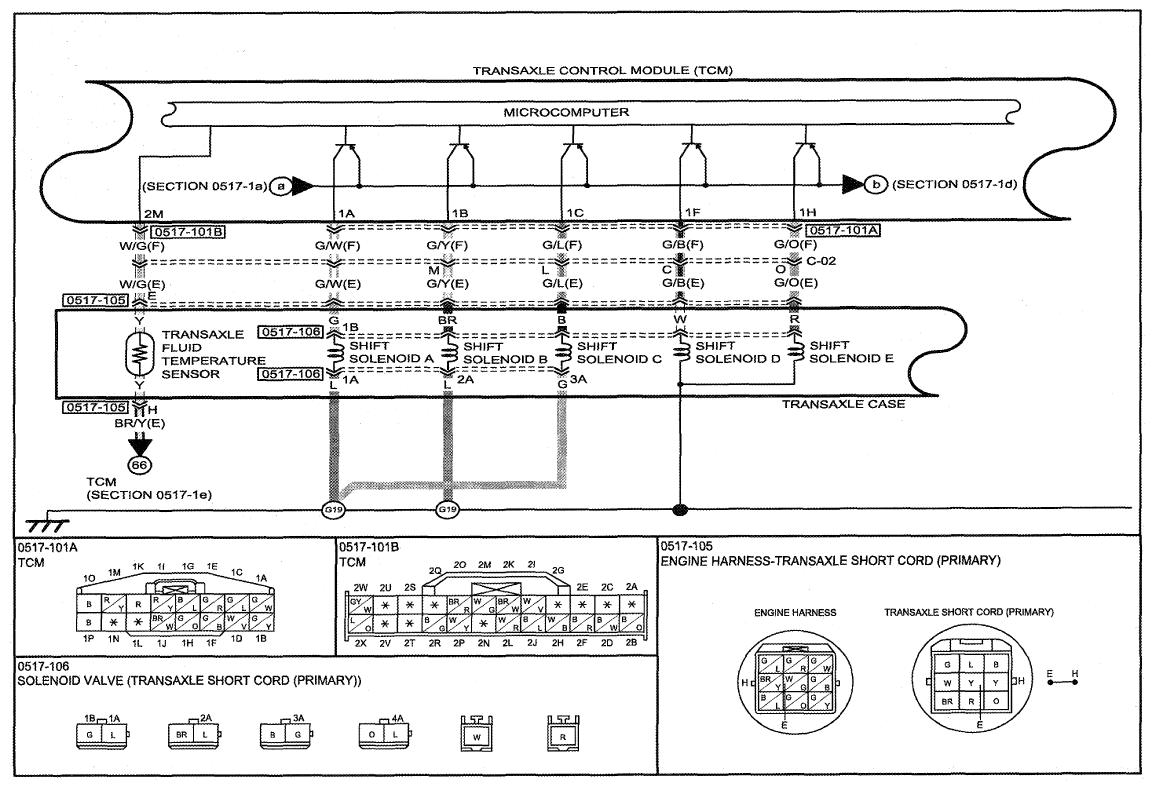

Fig 8: Automatic Transaxle Control System (FS5A-EL) Wiring Diagram (0517-1d); 2 Of 2

Fig 9: Automatic Transaxle Control System (FS5A-EL) Wiring Diagram (0517-1e); 1 Of 2

Fig 10: Automatic Transaxle Control System (FS5A-EL) Wiring Diagram (0517-1e); 2 Of 2
