Automatic Transaxle Control System (AY6A-El)

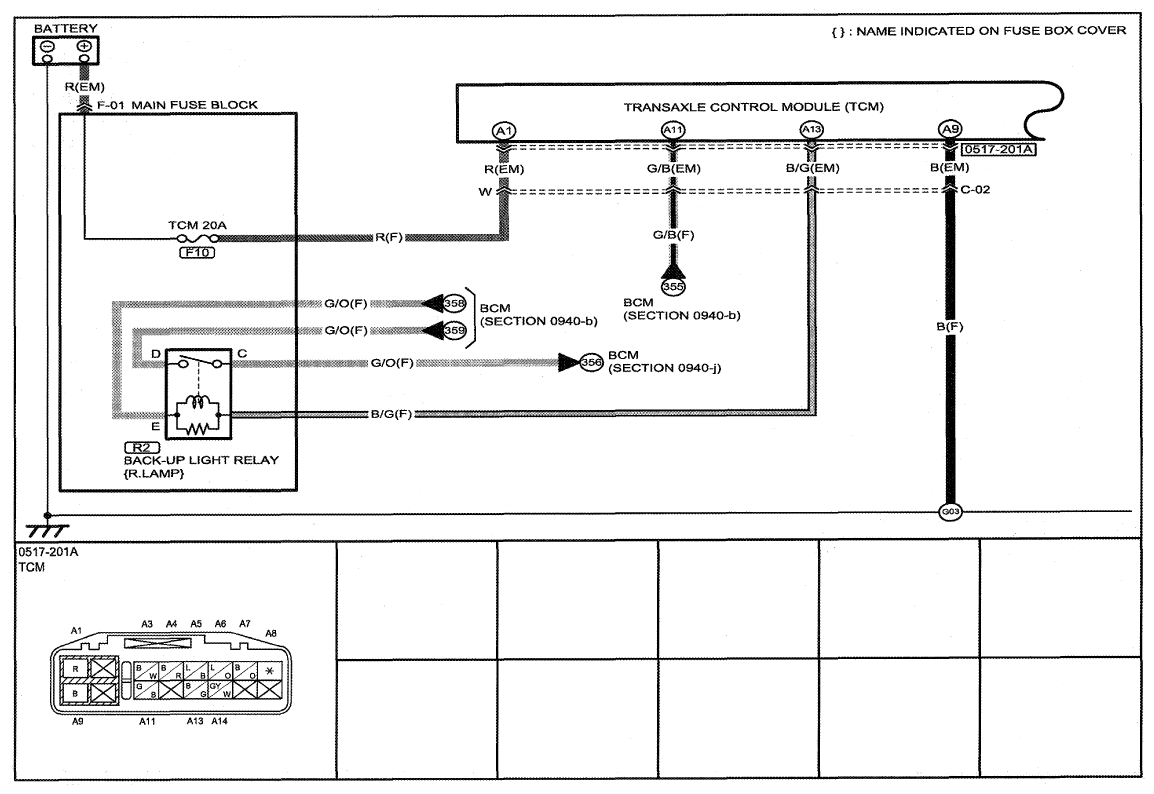

Fig 1: Automatic Transaxle Control System (AY6A-EL) Wiring Diagram (0517-2a); 1 Of 2

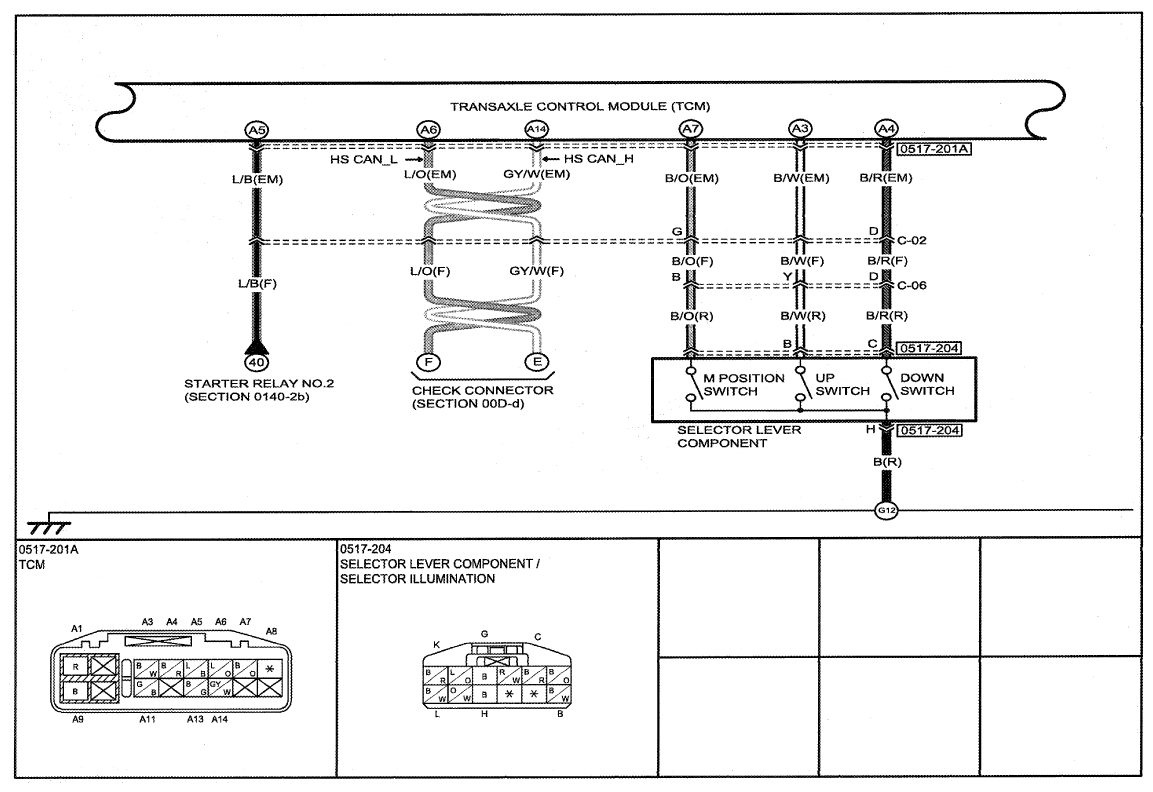

Fig 2: Automatic Transaxle Control System (AY6A-EL) Wiring Diagram (0517-2a); 2 Of 2

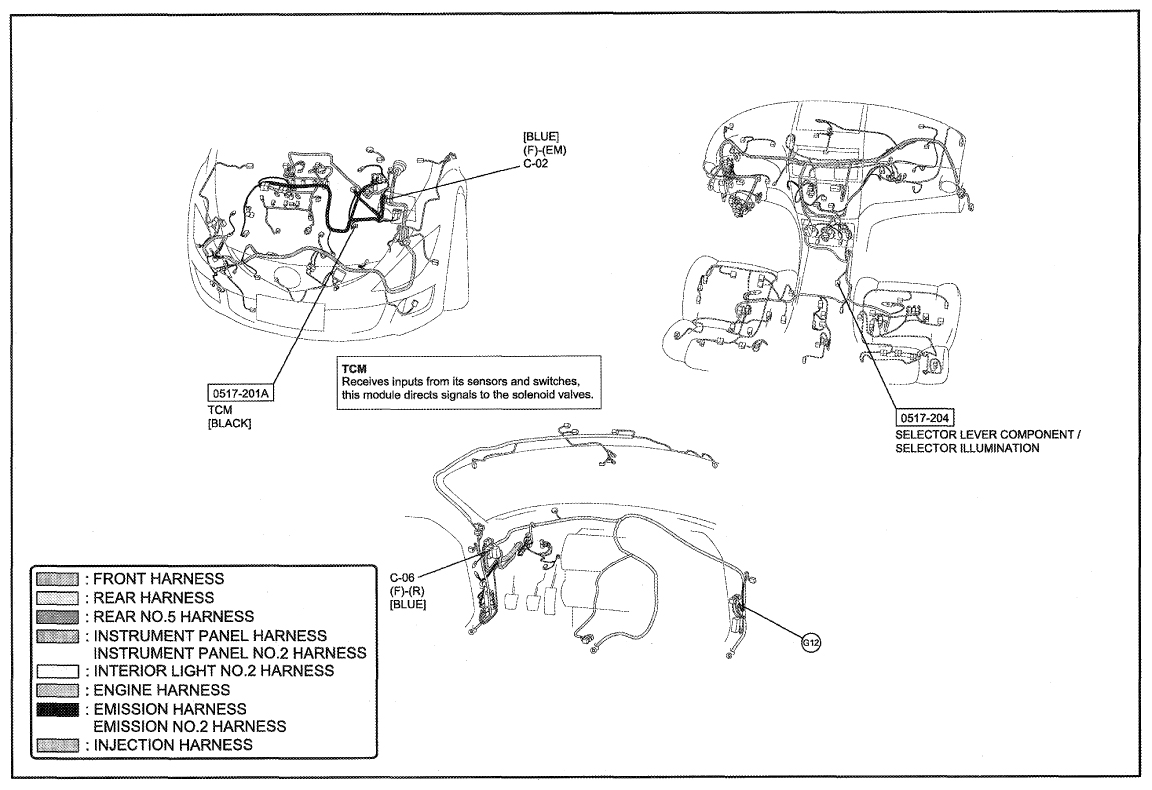

Fig 3: Automatic Transaxle Control System (AY6A-EL) Wiring Diagram (0517-2b); 1 Of 2

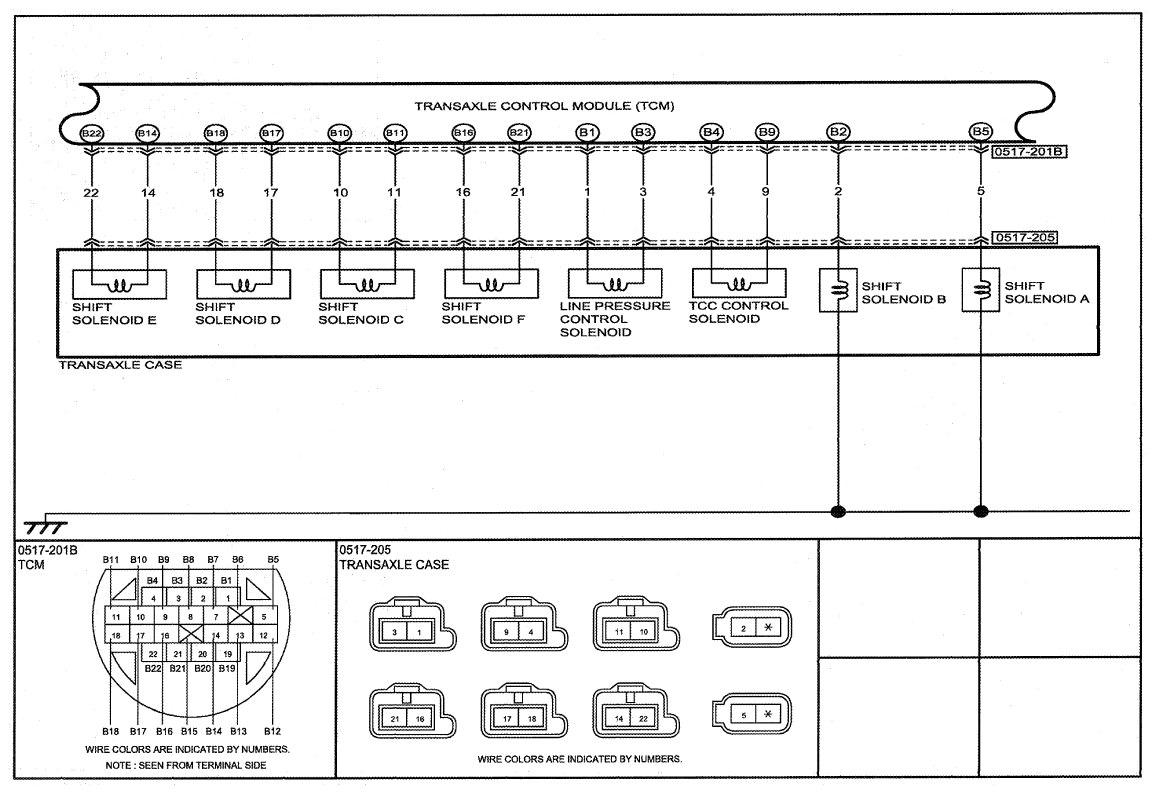

Fig 4: Automatic Transaxle Control System (AY6A-EL) Wiring Diagram (0517-2b); 2 Of 2

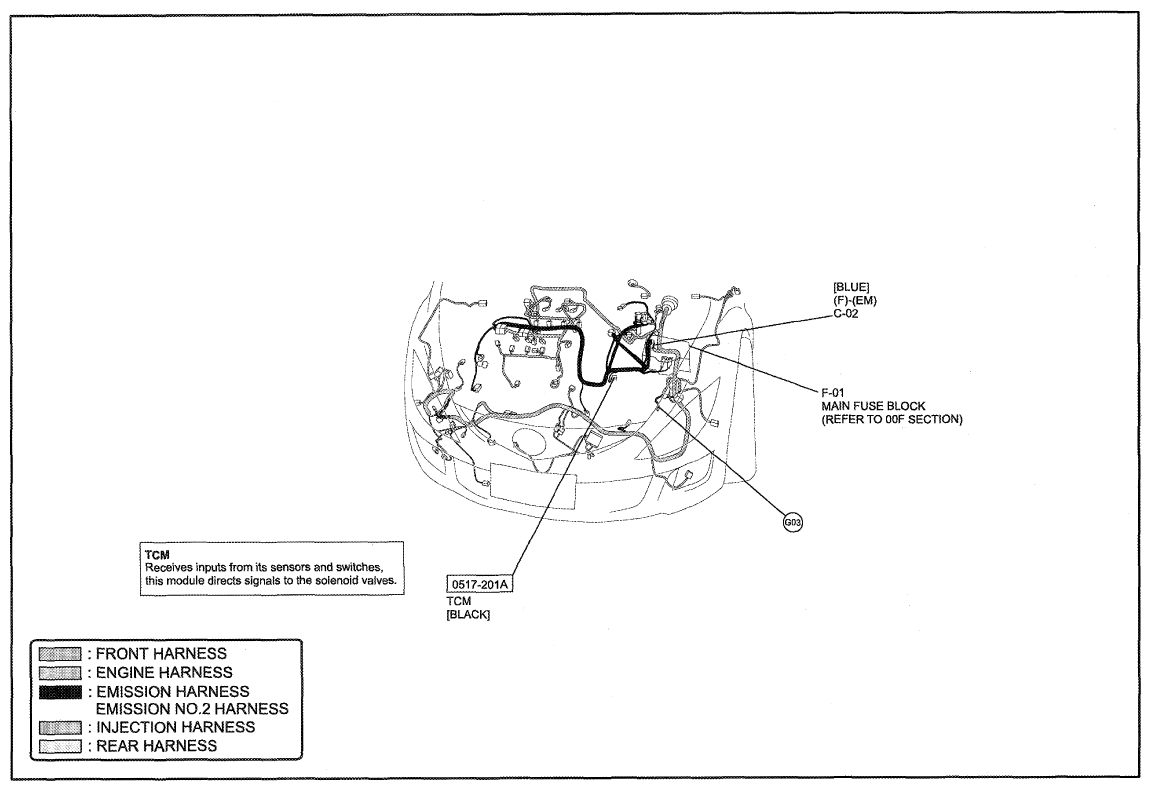

Fig 5: Automatic Transaxle Control System (AY6A-EL) Wiring Diagram (0517-2c); 1 Of 2

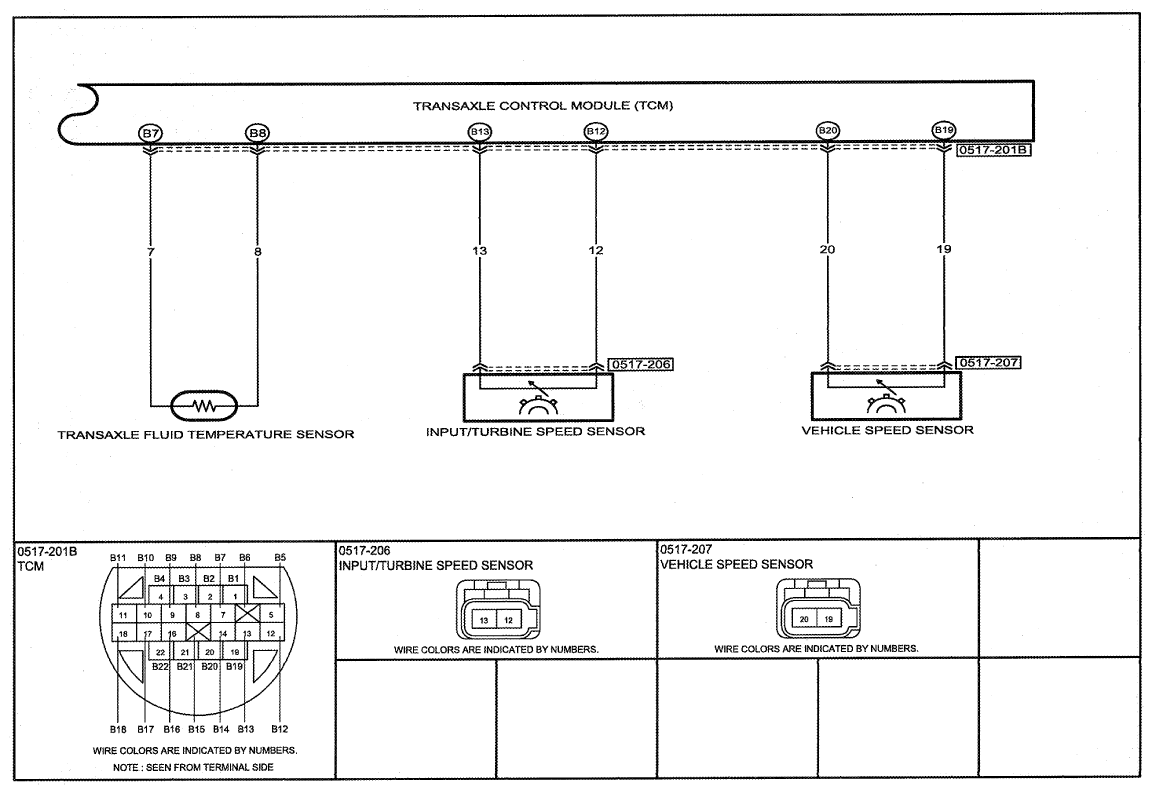

Fig 6: Automatic Transaxle Control System (AY6A-EL) Wiring Diagram (0517-2c); 2 Of 2

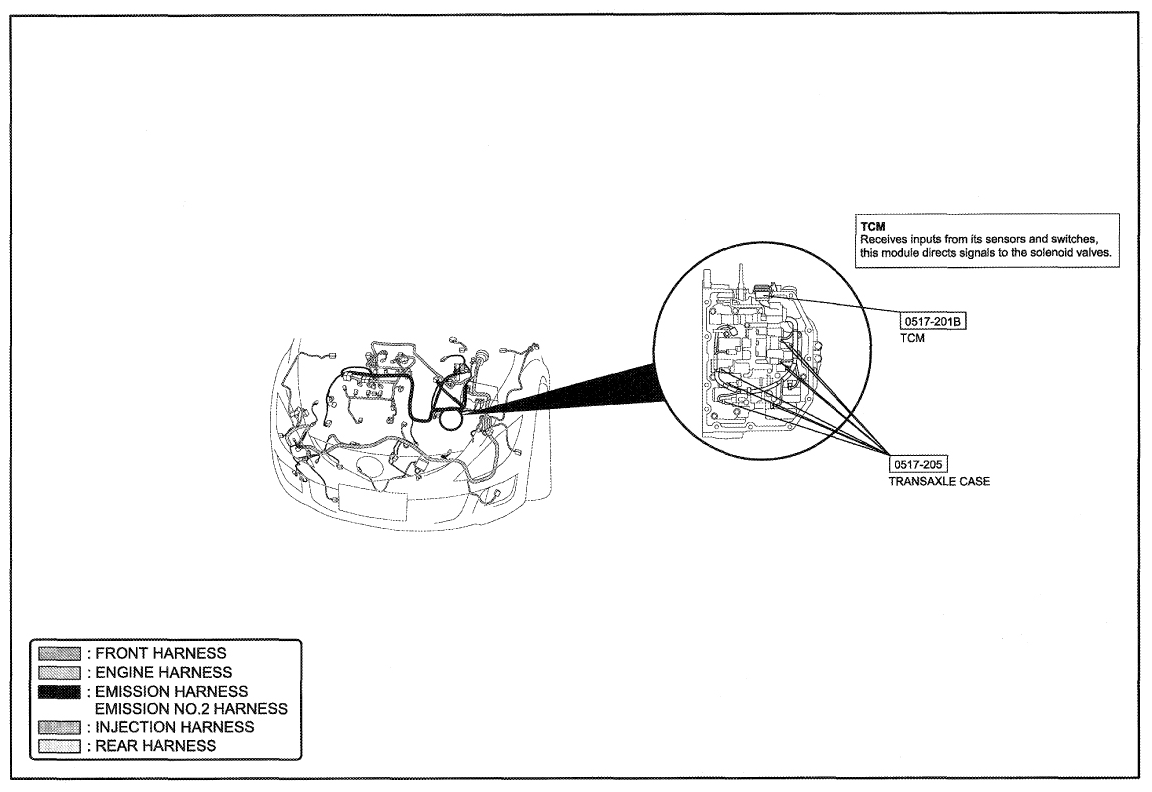

Fig 7: Automatic Transaxle Control System (AY6A-EL) Wiring Diagram (0517-2d); 1 Of 2

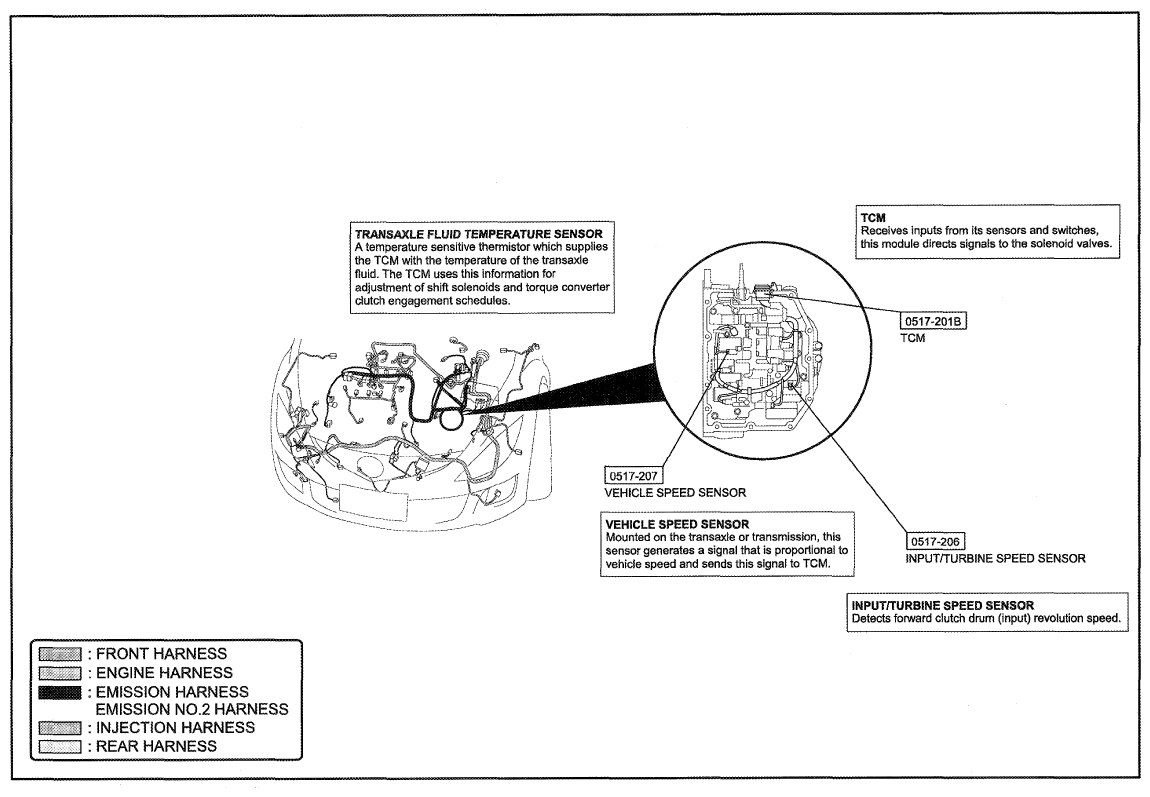

Fig 8: Automatic Transaxle Control System (AY6A-EL) Wiring Diagram (0517-2d); 2 Of 2
