Home >> Mazda >> 2013 >> 6 i Touring >> Repair and Diagnosis >> Quick Lookups >> Wiring Diagrams >> OEM Wiring System >> Power Ground & Common Connector >> Fuse Box

Fuse Box

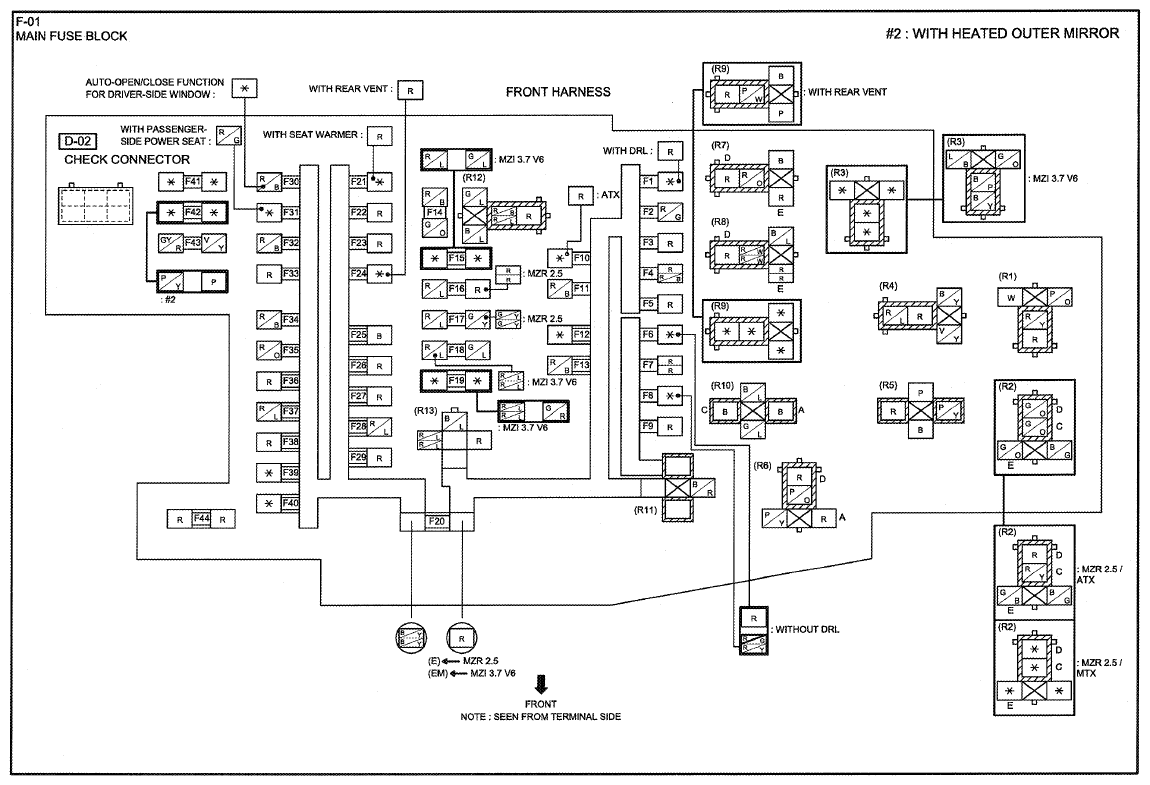

Fig 1: Main Fuse Block - System Diagram

G09120403

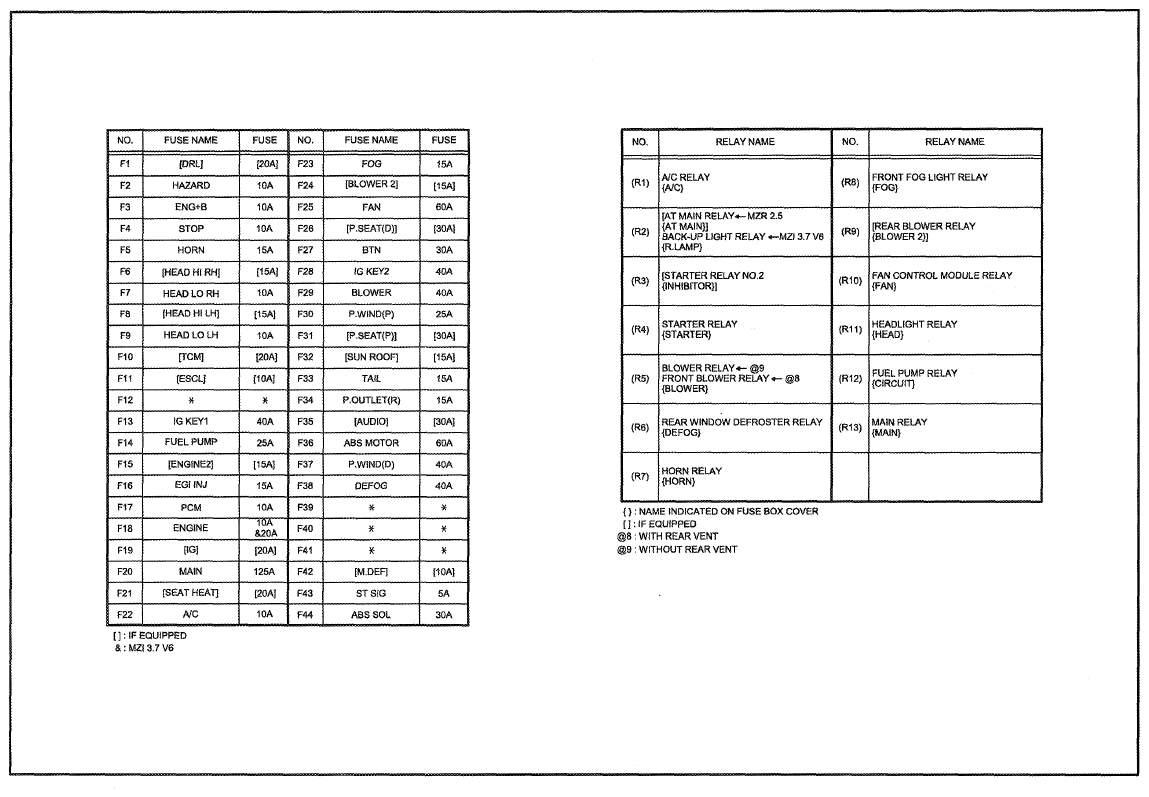

Fig 2: Identifying Fuse Box Legend Description

G09120404

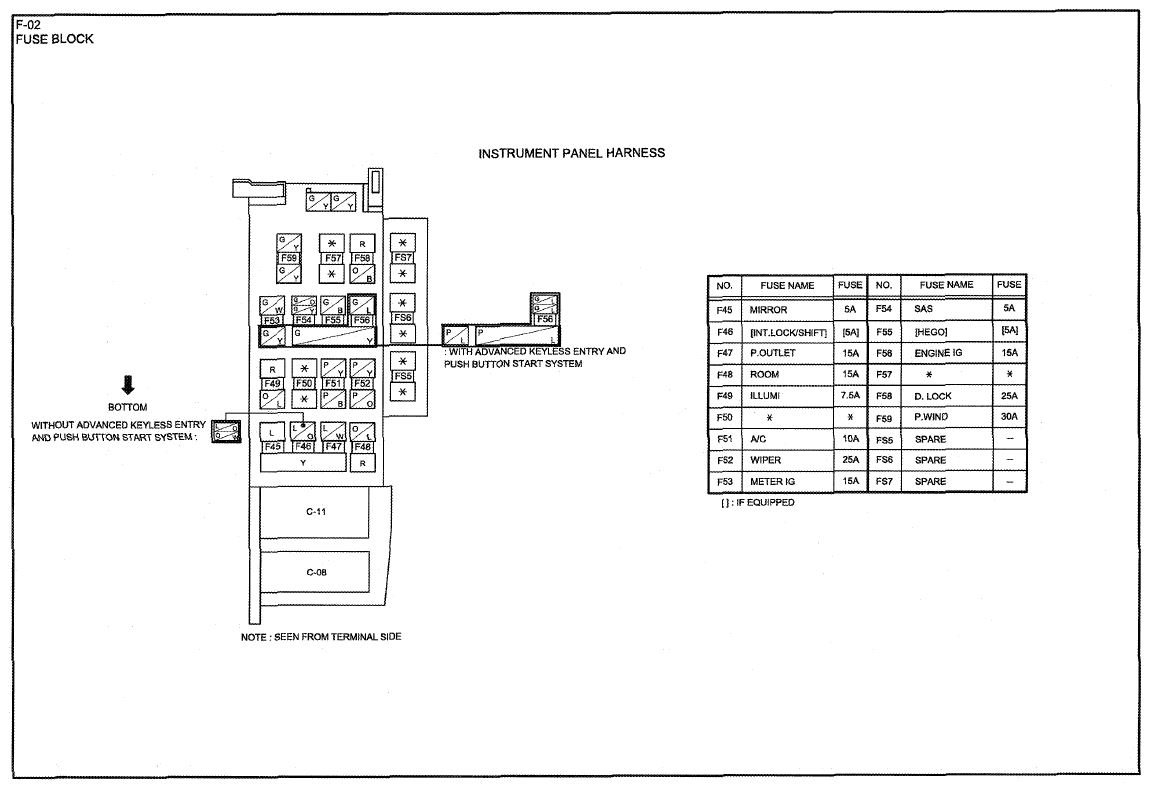

Fig 3: Identifying Fuse Box Legend Description (Instrument Panel Harness)

G09120405
