(Without Advanced Keyless Entry And Push Button Start System)

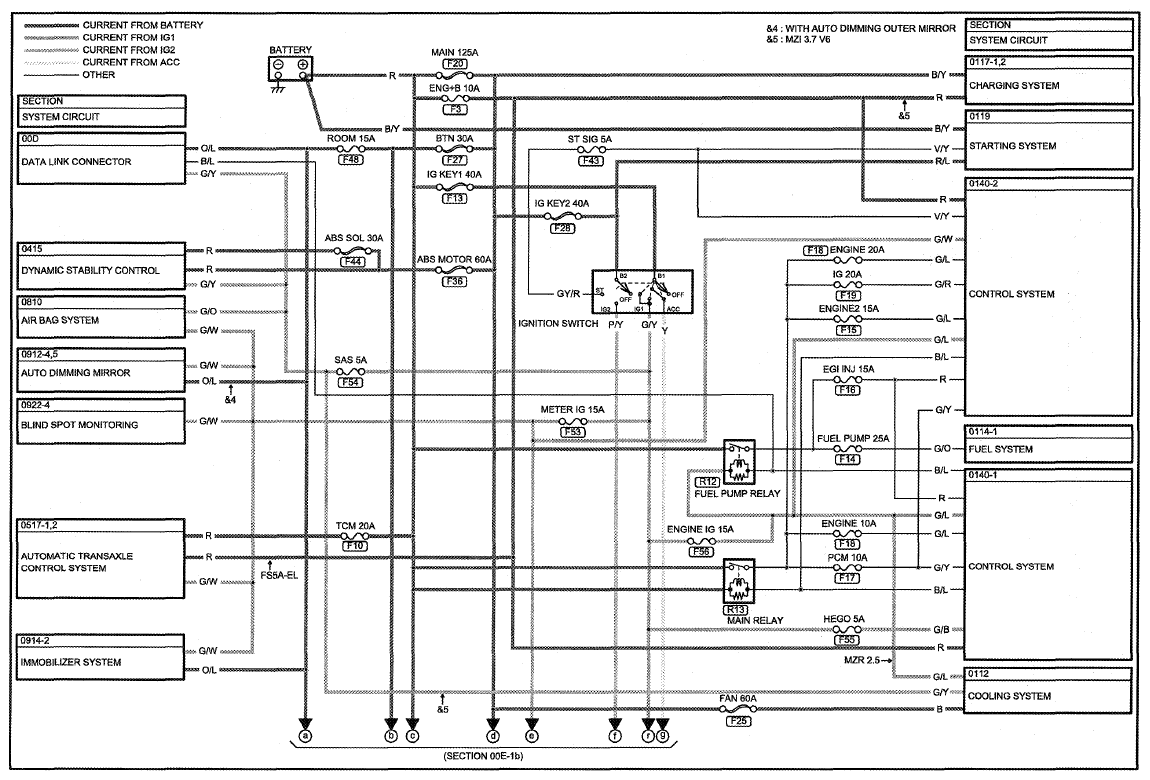

Fig 1: Electrical Wiring Schematic - Without Advanced Keyless Entry And Push Button Start System (00E-1a)

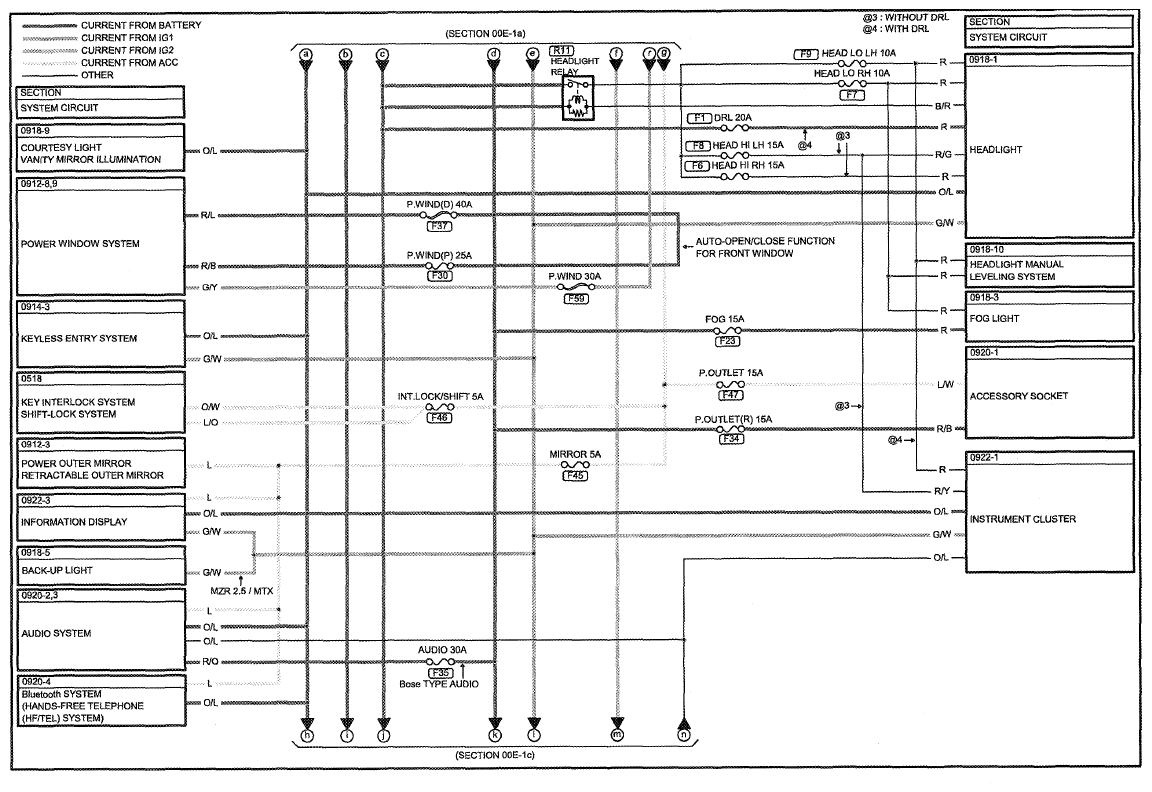

Fig 2: Electrical Wiring Schematic - Without Advanced Keyless Entry And Push Button Start System (00E-1b)

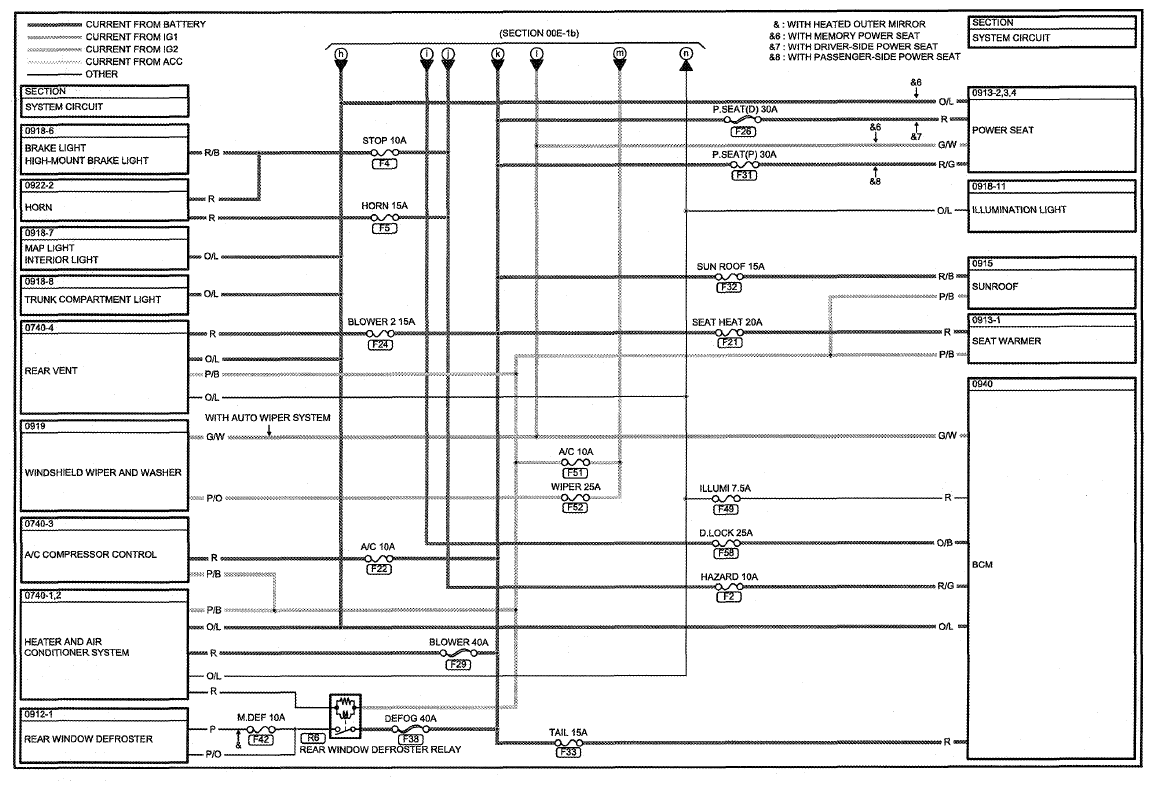

Fig 3: Electrical Wiring Schematic - Without Advanced Keyless Entry And Push Button Start System (00E-1c)
