(With Advanced Keyless Entry And Push Button Start System)

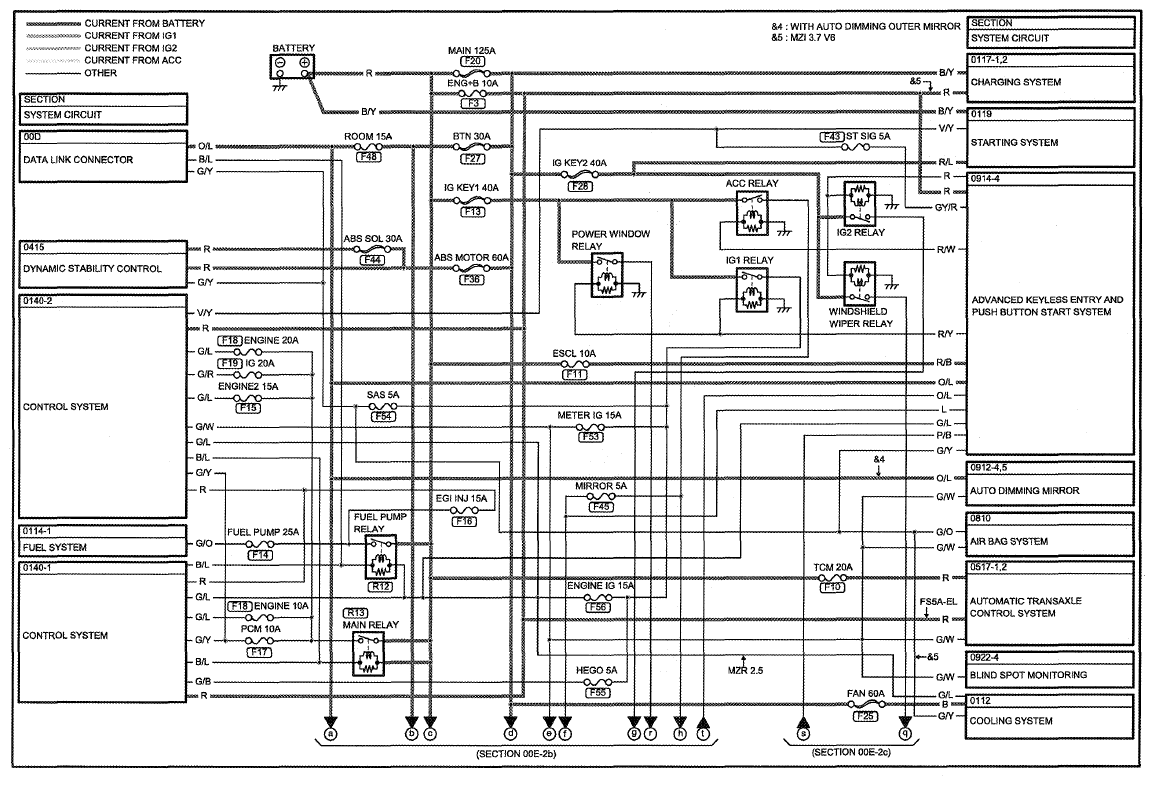

Fig 1: Electrical Wiring Schematic - With Advanced Keyless Entry And Push Button Start System (00E-2a)

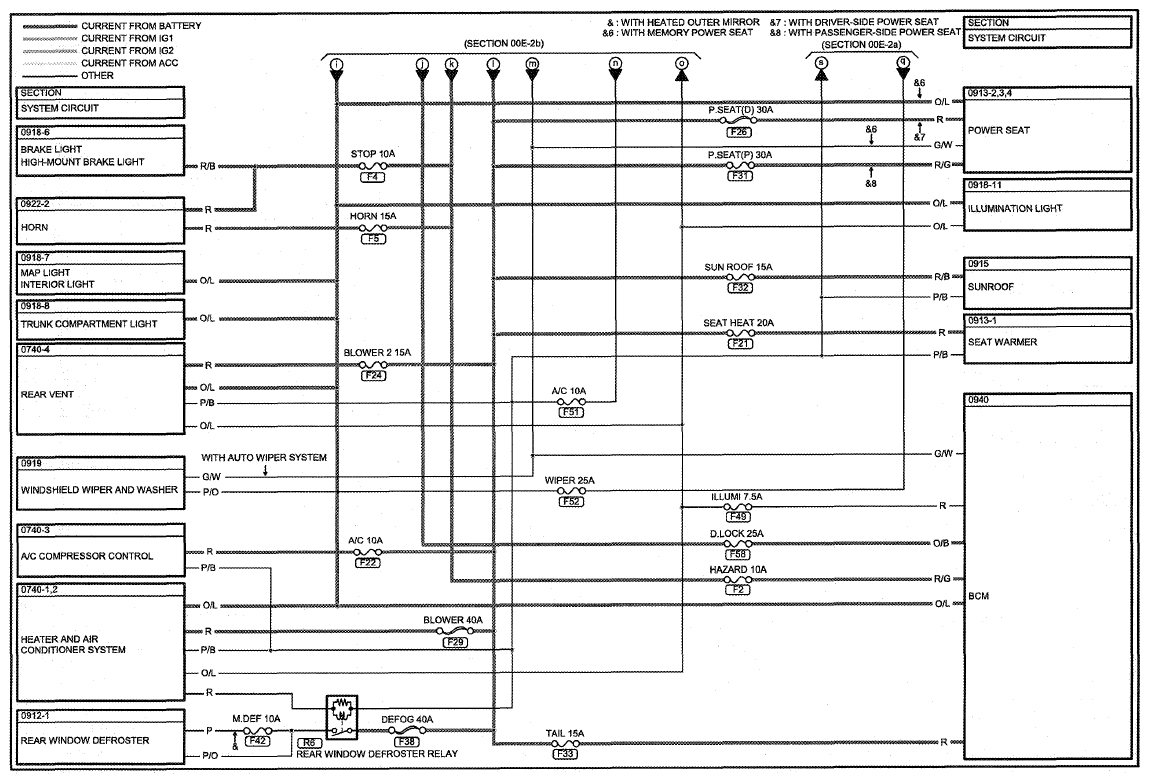

Fig 2: Electrical Wiring Schematic - With Advanced Keyless Entry And Push Button Start System (00E-2b)

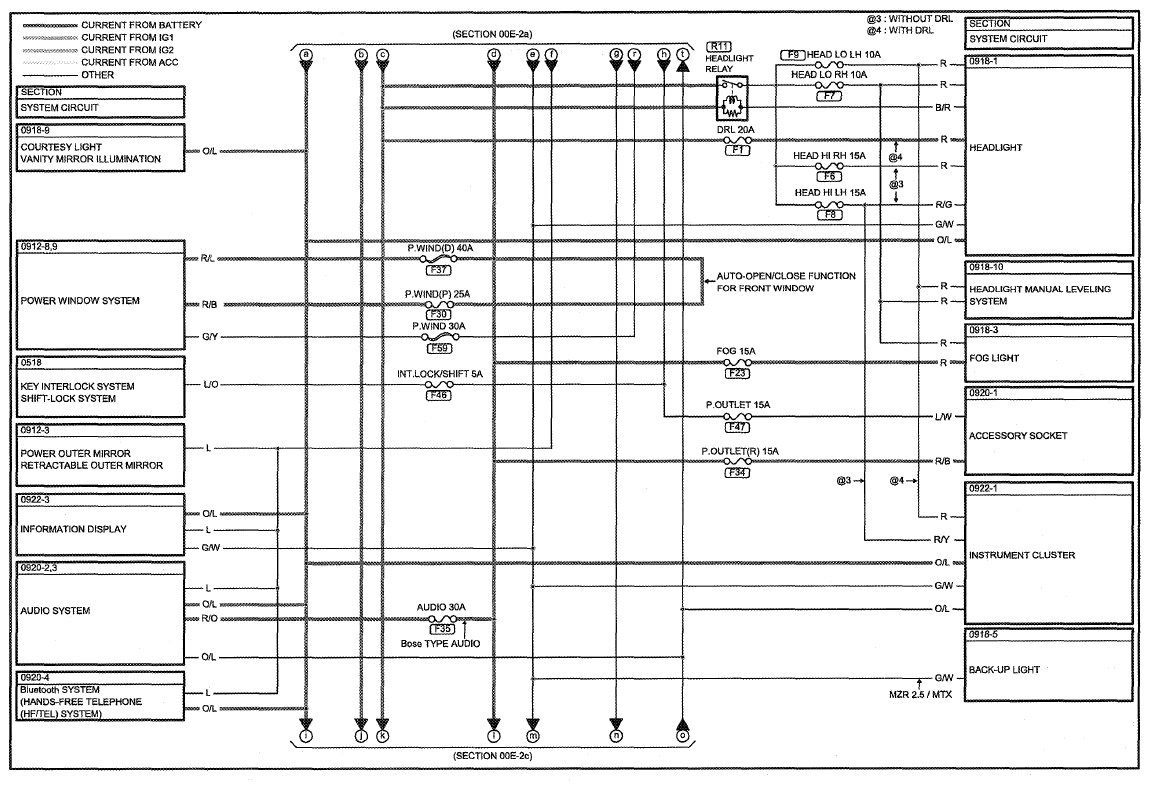

Fig 3: Electrical Wiring Schematic - With Advanced Keyless Entry And Push Button Start System (00E-2c)
