Electrical System General Procedures: Connectors: Fuse: Replacement

When replacing a fuse, be sure to replace it with one of the same capacity. If a fuse fails again, the circuit probably has a short and the wiring should be inspected.
Be sure the negative battery terminal is disconnected before replacing a main fuse.

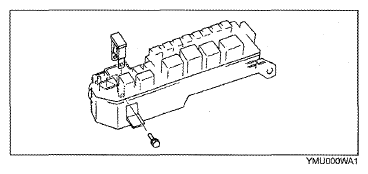

Fig 1: Identifying Fuse And Mounting Bolt
When replacing a pullout fuse, use the fuse puller.

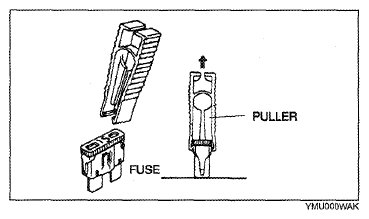

Fig 2: Pulling Out Fuse Using Fuse Pullers
