Control System (MZI 3.7 V6)

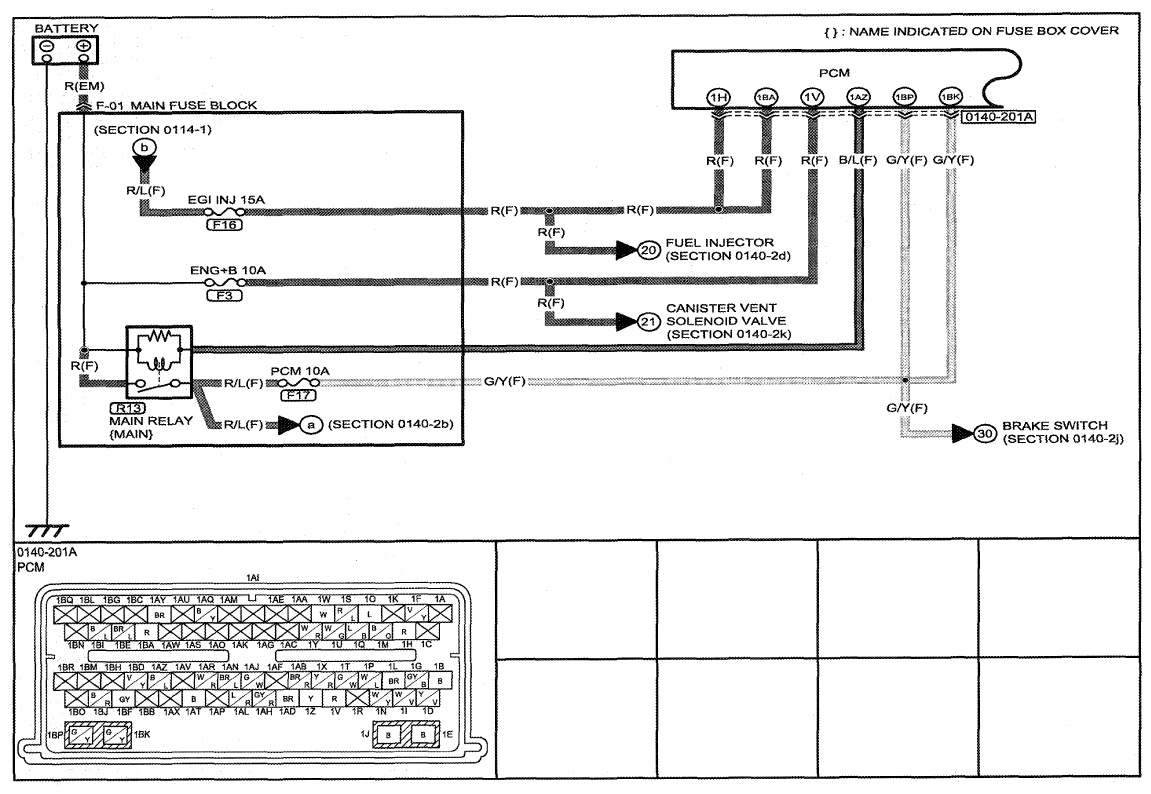

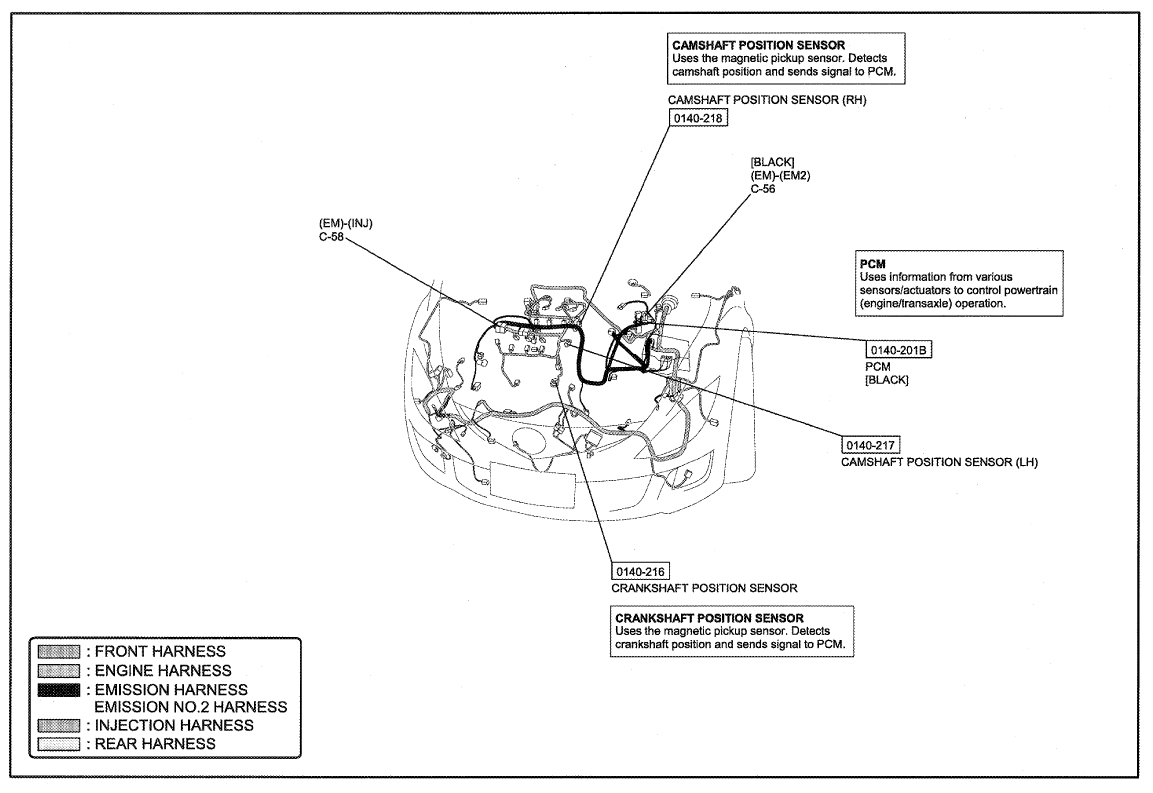

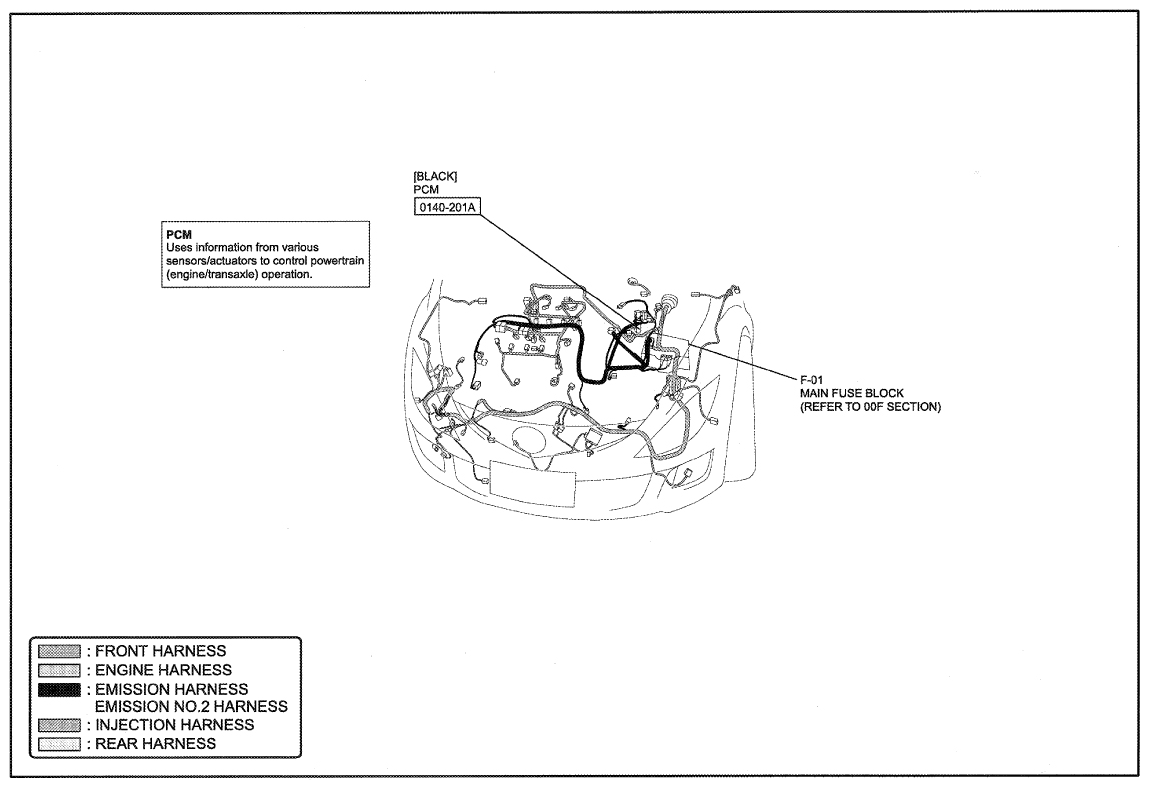

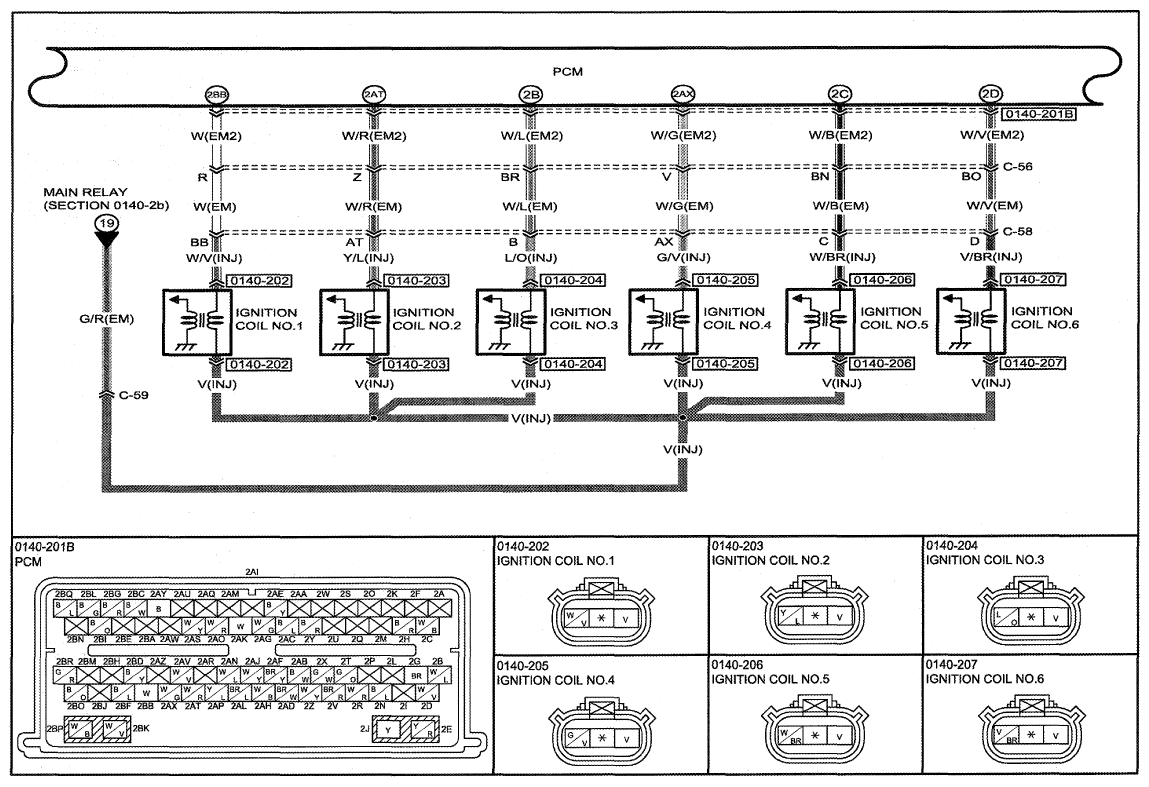

Fig 1: Control System (MZI 3.7 V6) Wiring Diagram (0140-2a); 1 Of 2

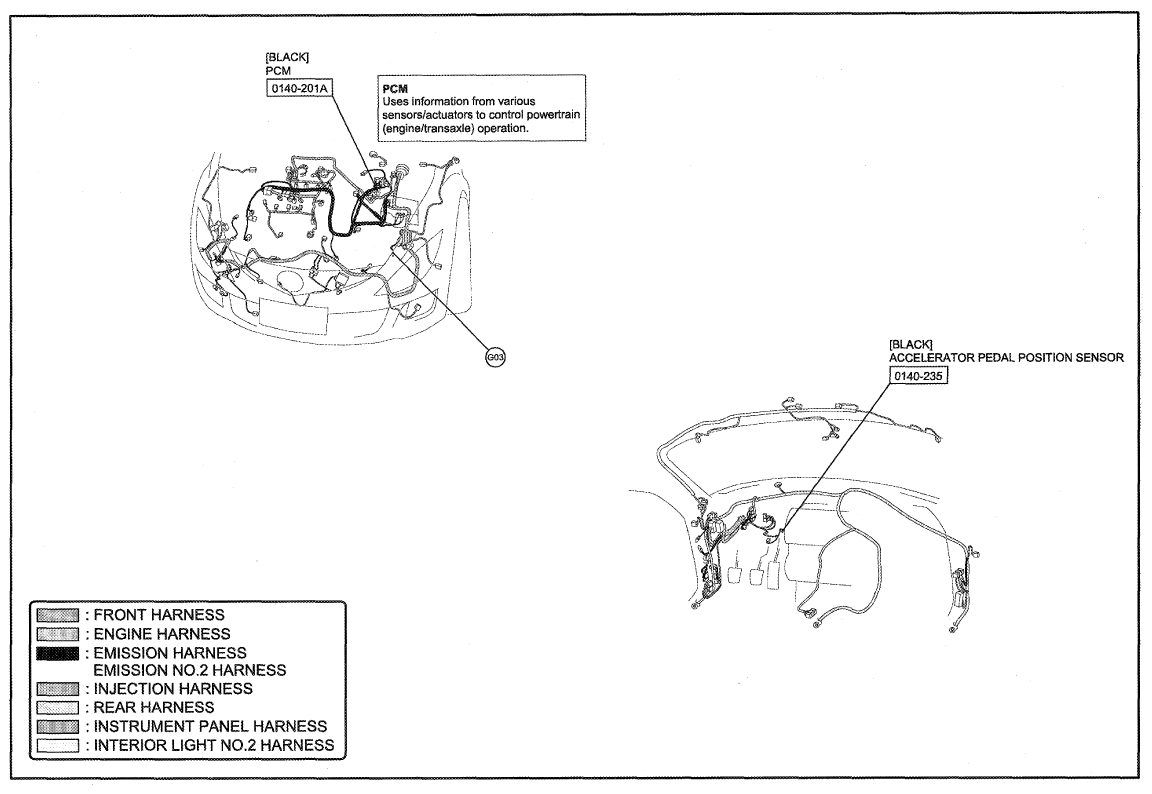

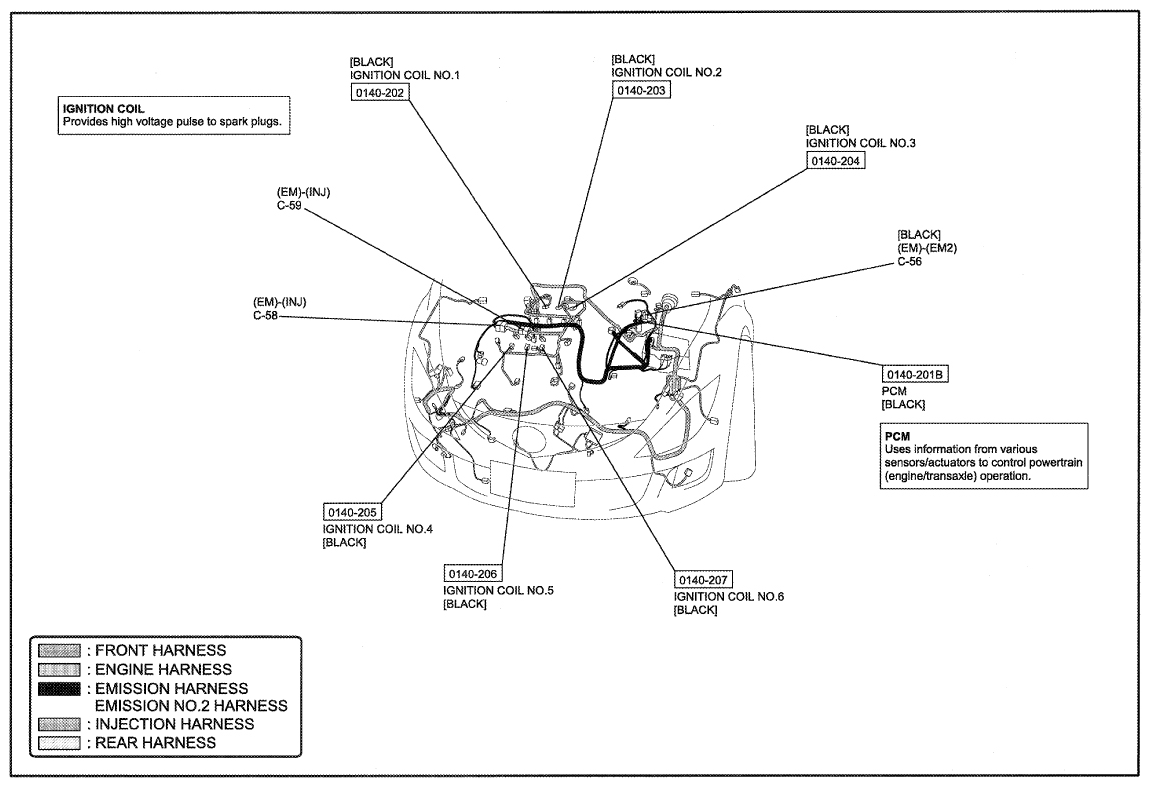

Fig 2: Control System (MZI 3.7 V6) Wiring Diagram (0140-2a); 2 Of 2

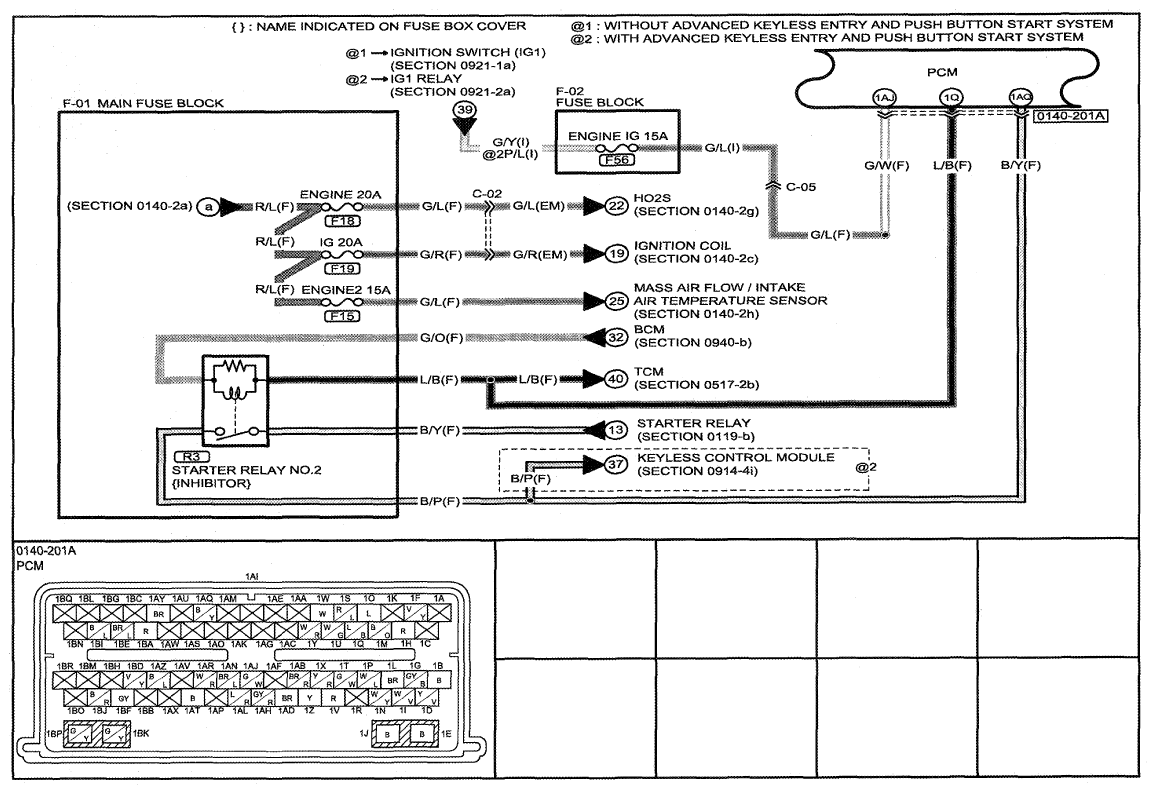

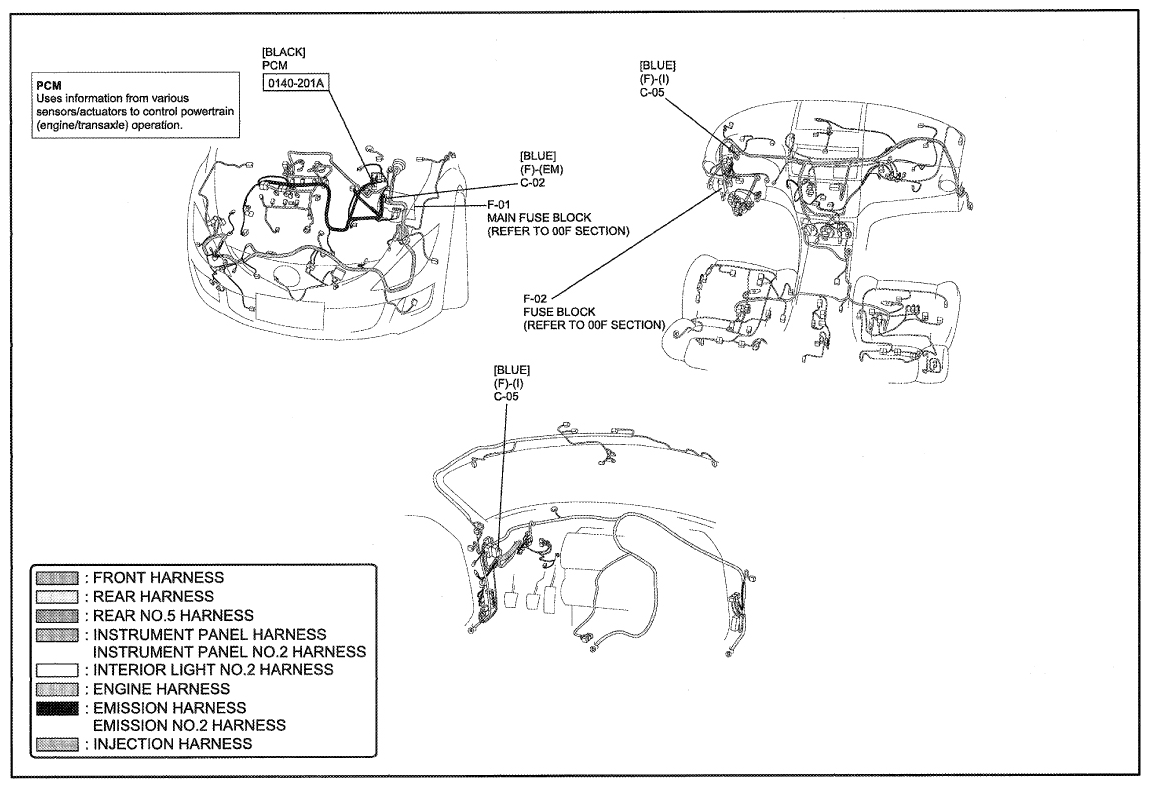

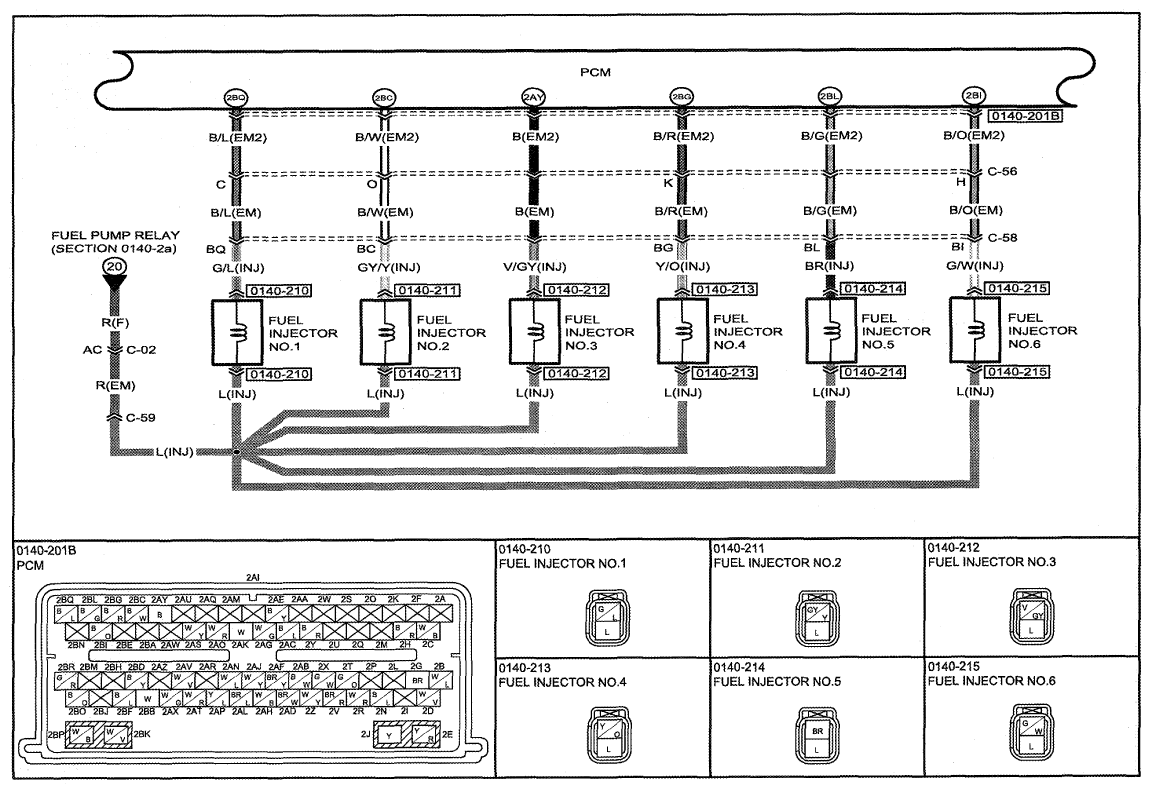

Fig 3: Control System (MZI 3.7 V6) Wiring Diagram (0140-2b); 1 Of 2

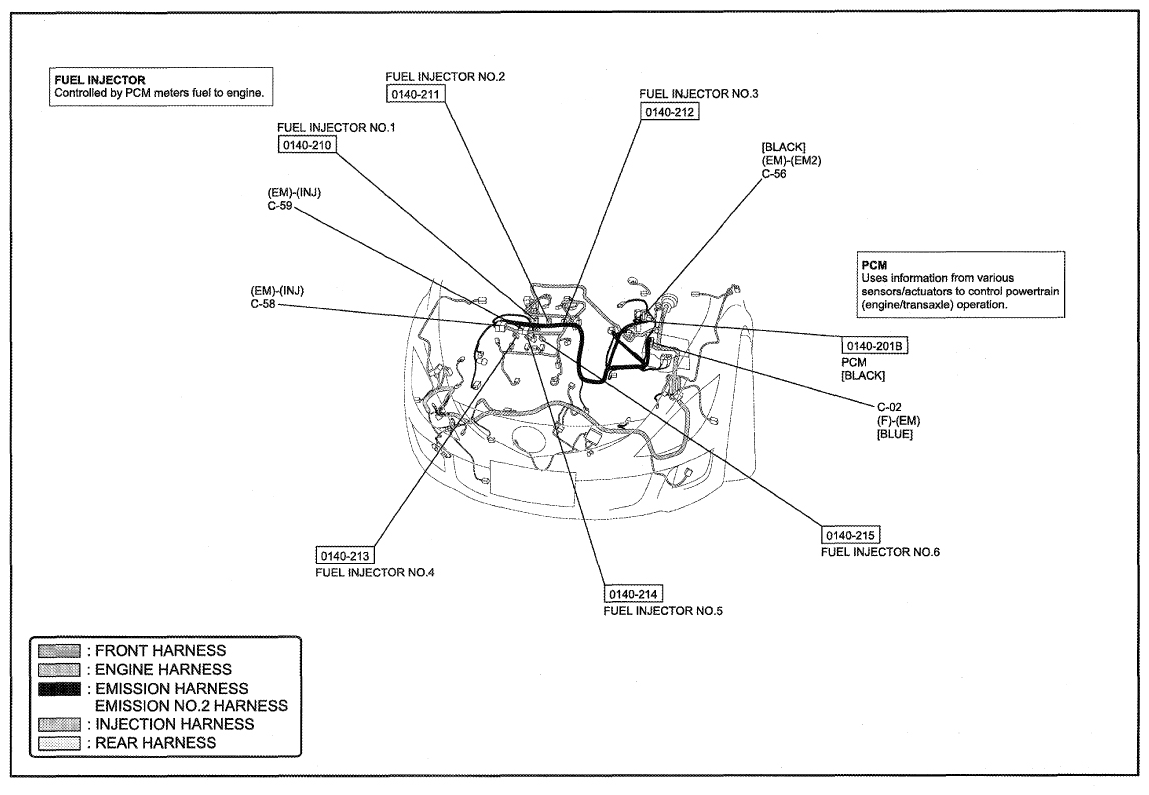

Fig 4: Control System (MZI 3.7 V6) Wiring Diagram (0140-2b); 2 Of 2
Fig 5: Control System (MZI 3.7 V6) Wiring Diagram (0140-2c); 1 Of 2
Fig 6: Control System (MZI 3.7 V6) Wiring Diagram (0140-2c); 2 Of 2

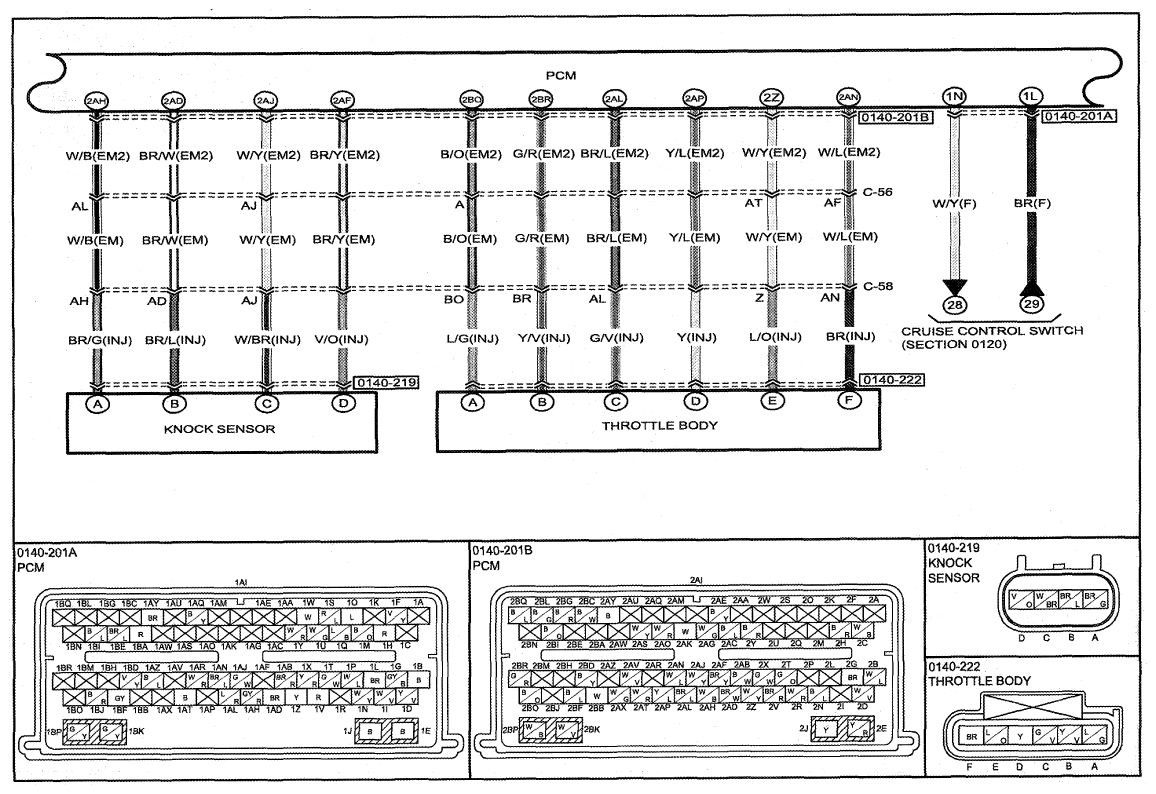

Fig 7: Control System (MZI 3.7 V6) Wiring Diagram (0140-2d); 1 Of 2

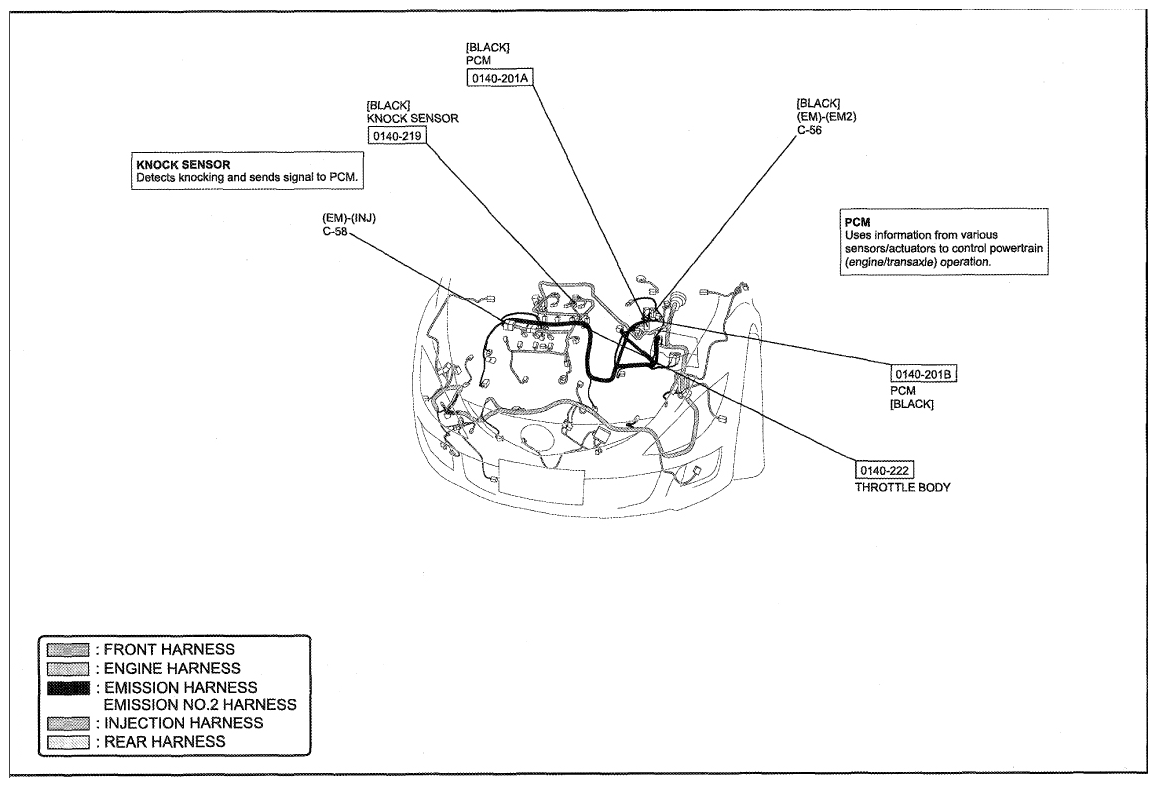

Fig 8: Control System (MZI 3.7 V6) Wiring Diagram (0140-2d); 2 Of 2
Fig 9: Control System (MZI 3.7 V6) Wiring Diagram (0140-2e); 1 Of 2

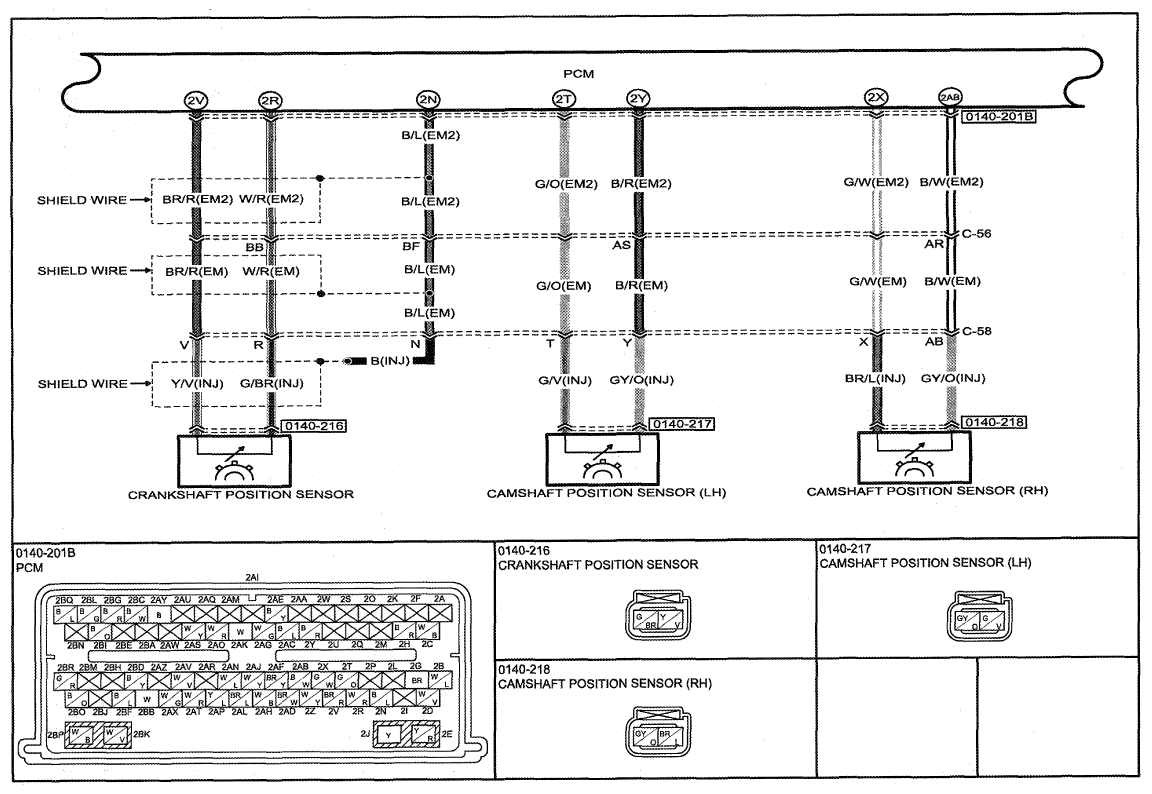

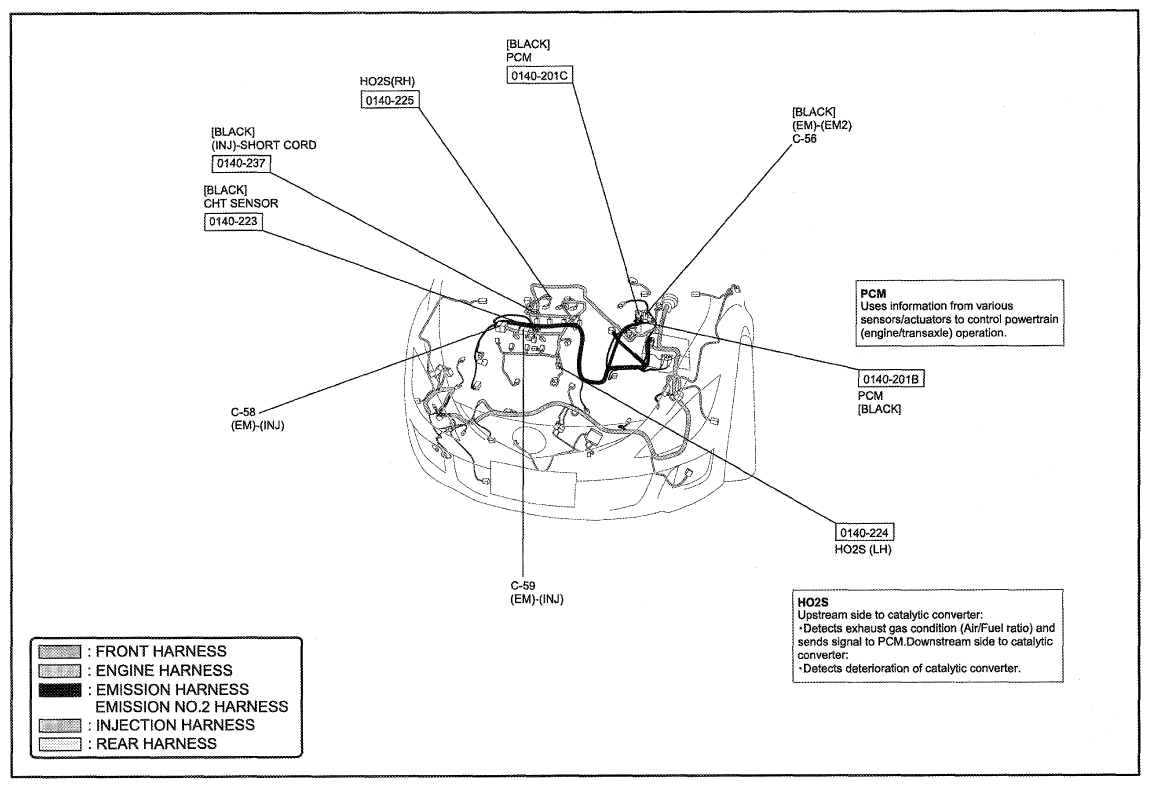

Fig 10: Control System (MZI 3.7 V6) Wiring Diagram (0140-2e); 2 Of 2

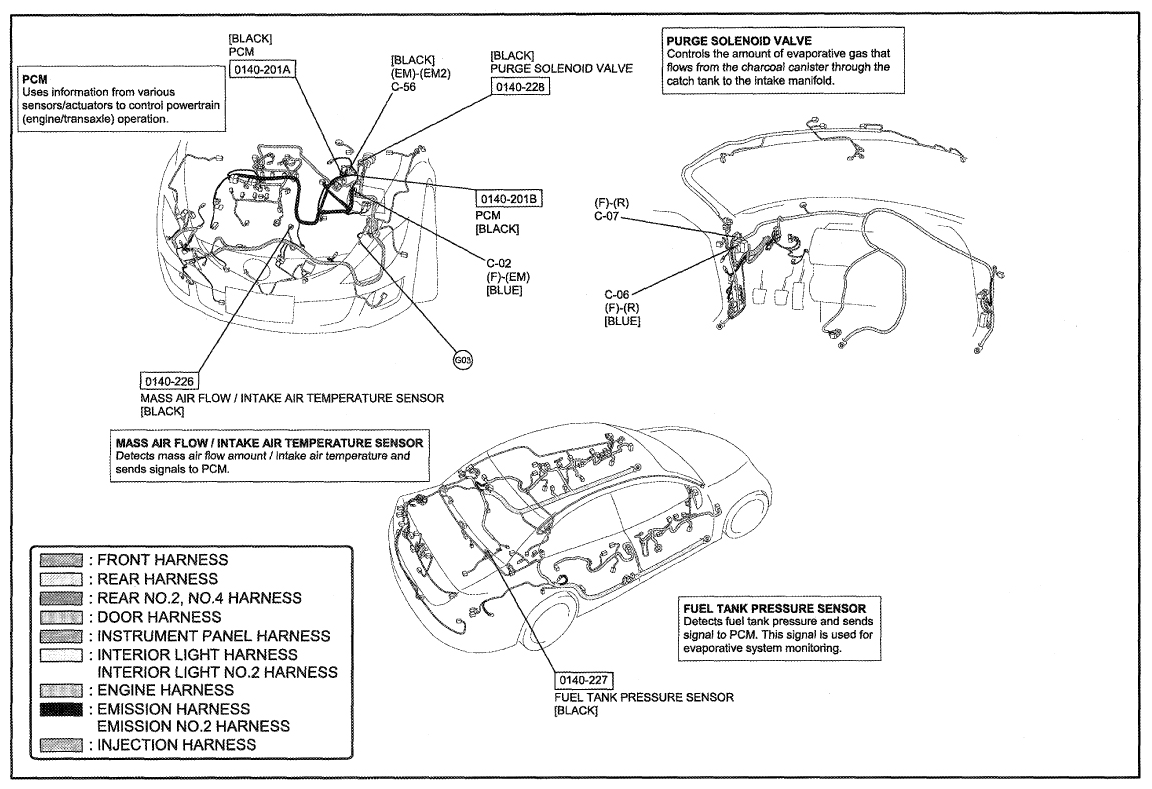

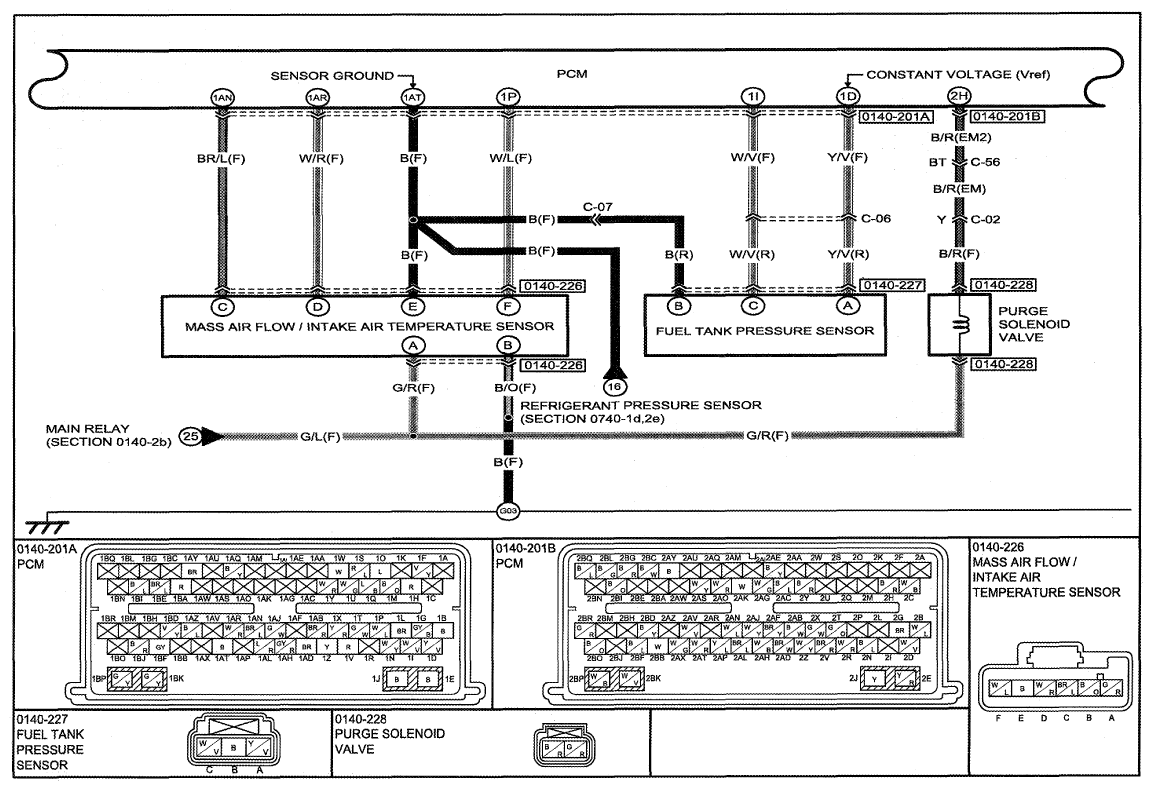

Fig 11: Control System (MZI 3.7 V6) Wiring Diagram (0140-2f); 1 Of 2
Fig 12: Control System (MZI 3.7 V6) Wiring Diagram (0140-2f); 2 Of 2
Fig 13: Control System (MZI 3.7 V6) Wiring Diagram (0140-2g); 1 Of 2
Fig 14: Control System (MZI 3.7 V6) Wiring Diagram (0140-2g); 2 Of 2

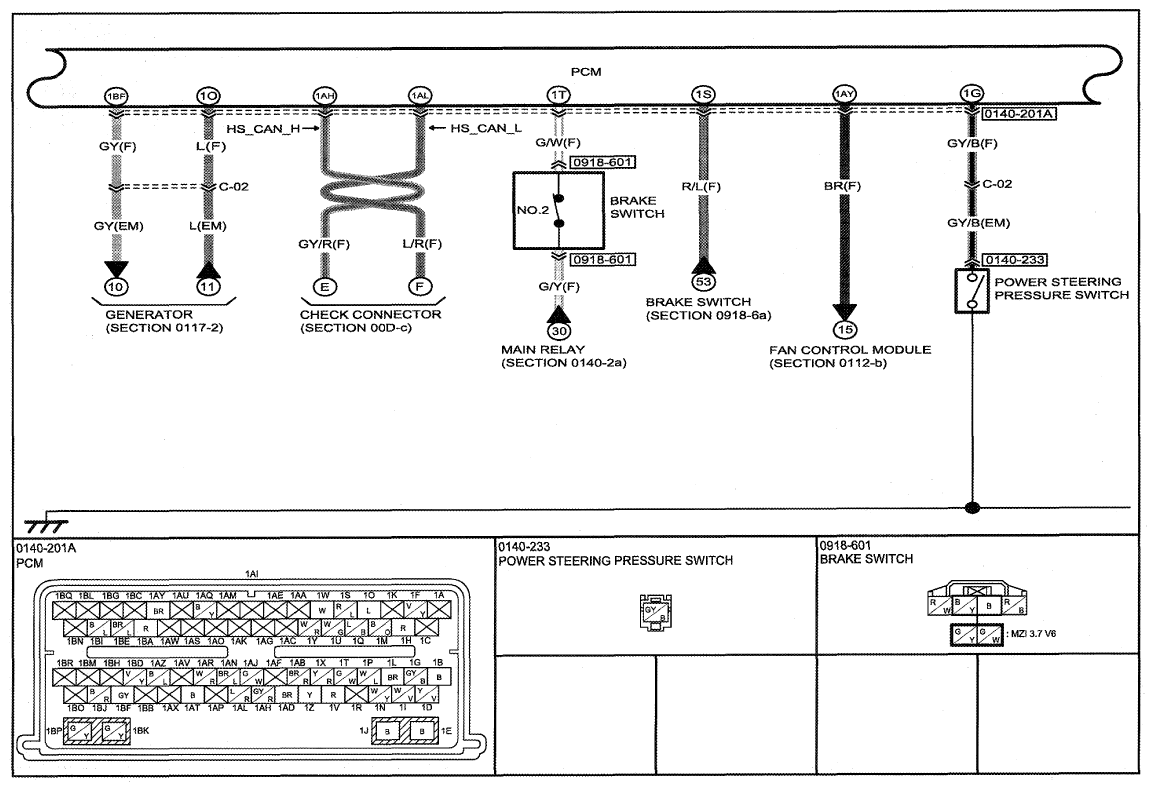

Fig 15: Control System (MZI 3.7 V6) Wiring Diagram (0140-2h); 1 Of 2
Fig 16: Control System (MZI 3.7 V6) Wiring Diagram (0140-2h); 2 Of 2

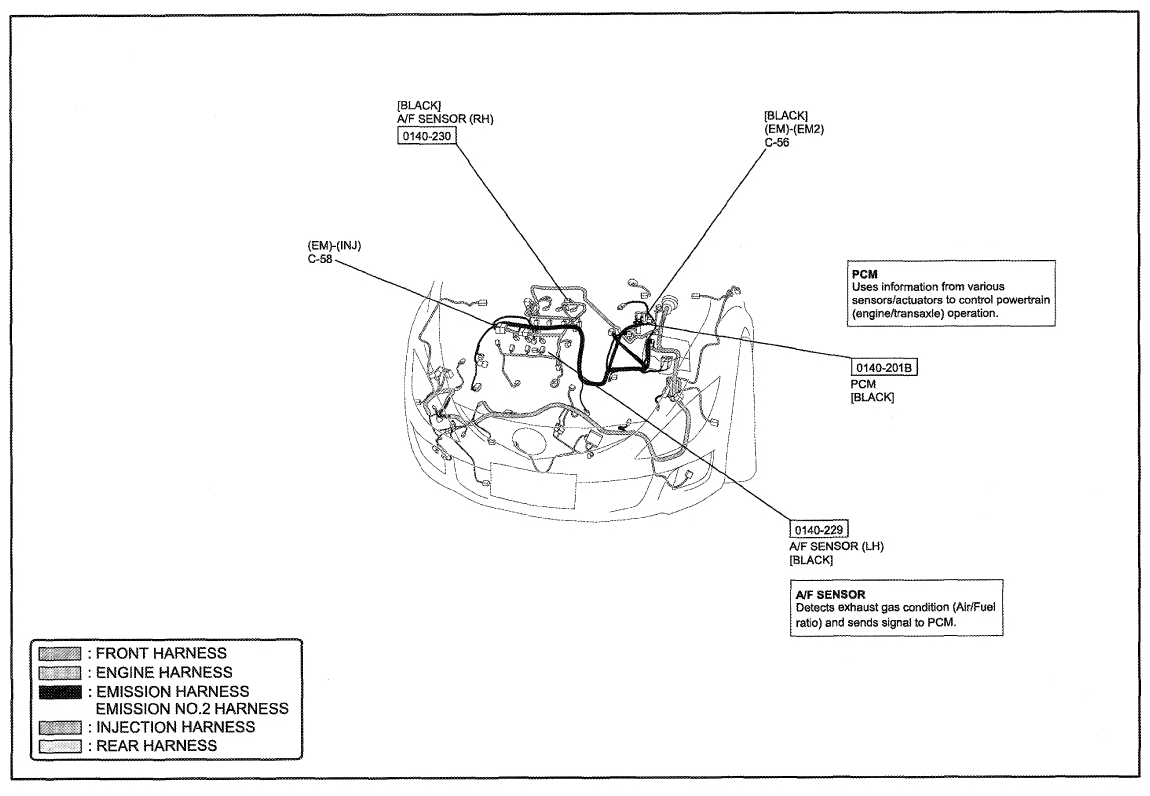

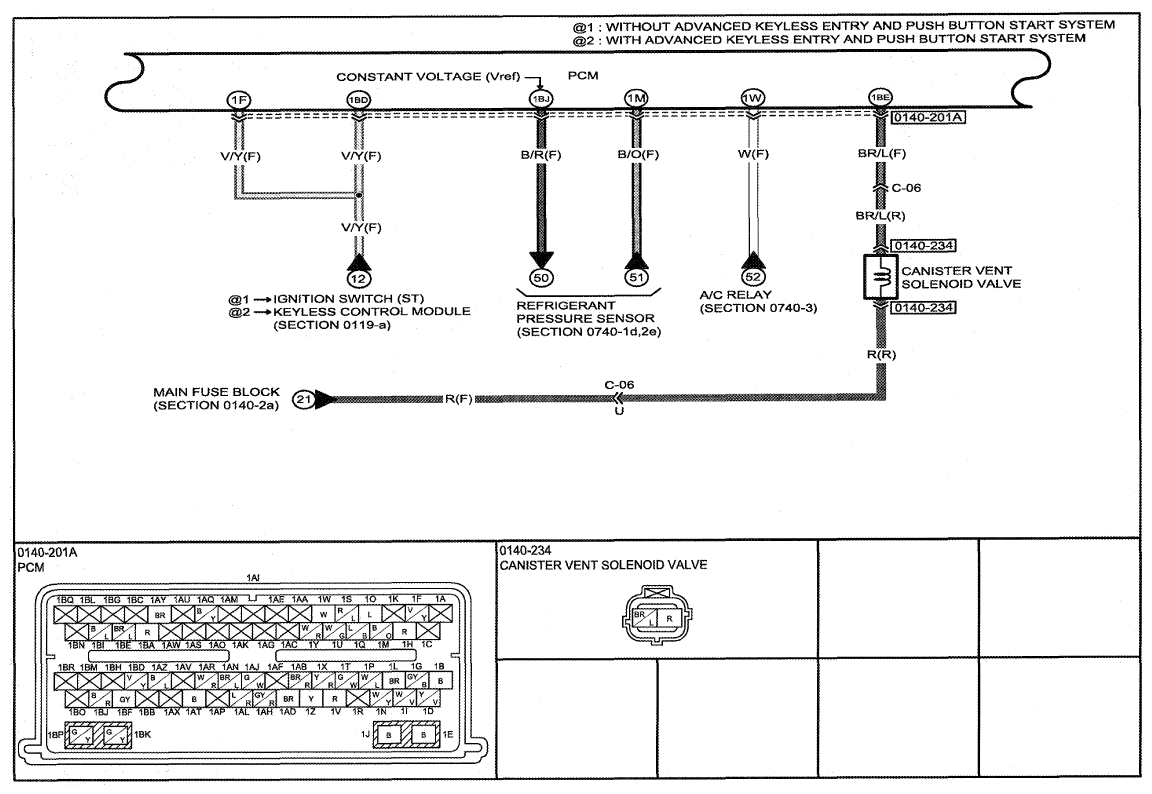

Fig 17: Control System (MZI 3.7 V6) Wiring Diagram (0140-2i); 1 Of 2

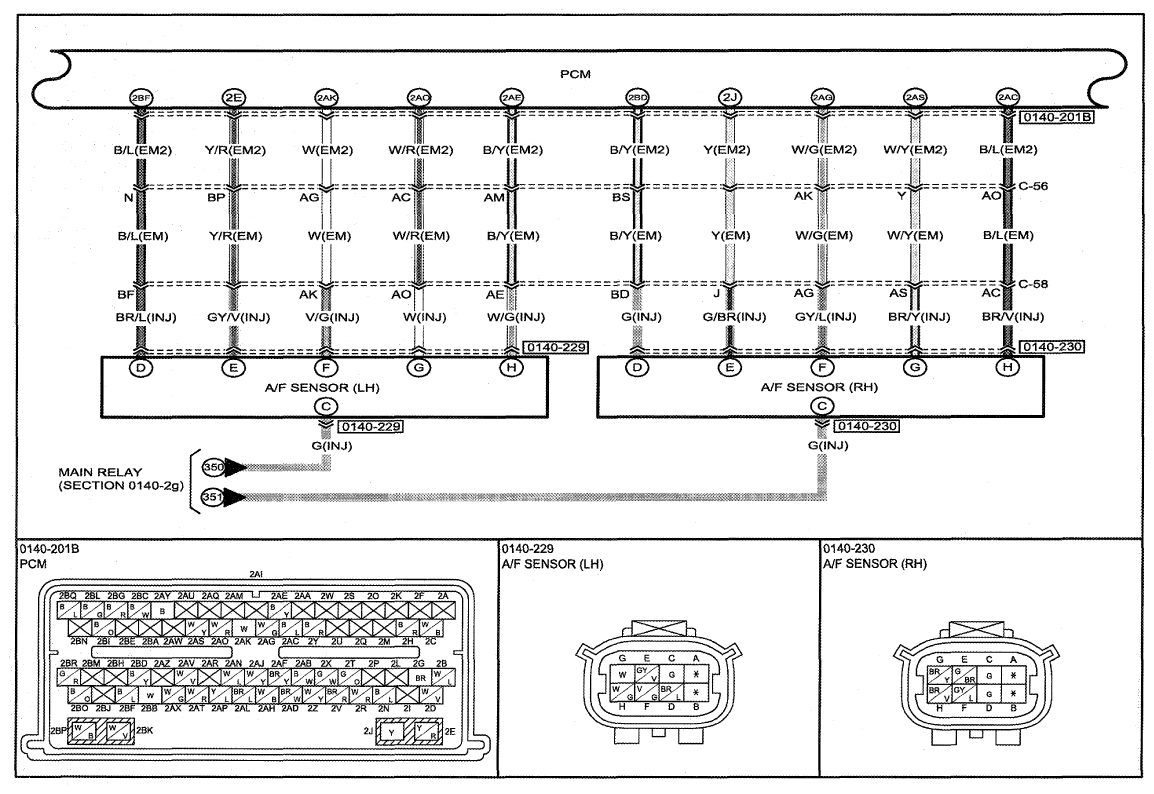

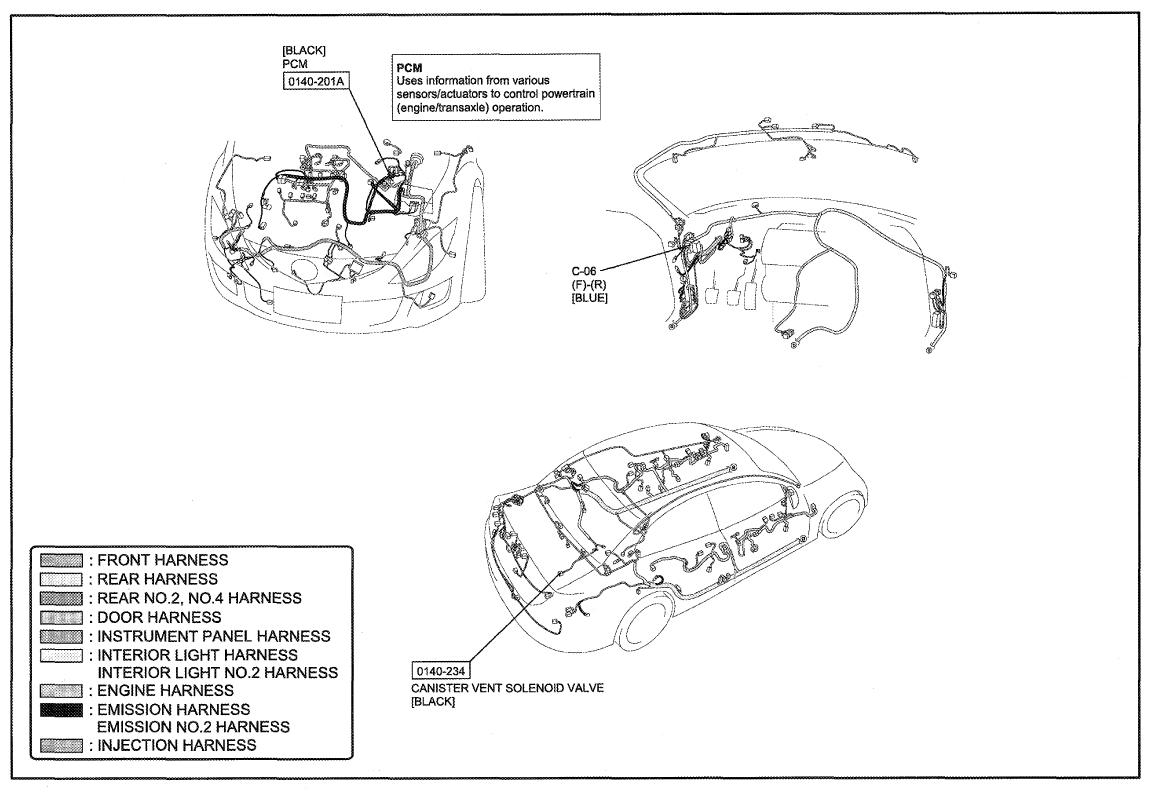

Fig 18: Control System (MZI 3.7 V6) Wiring Diagram (0140-2i); 2 Of 2

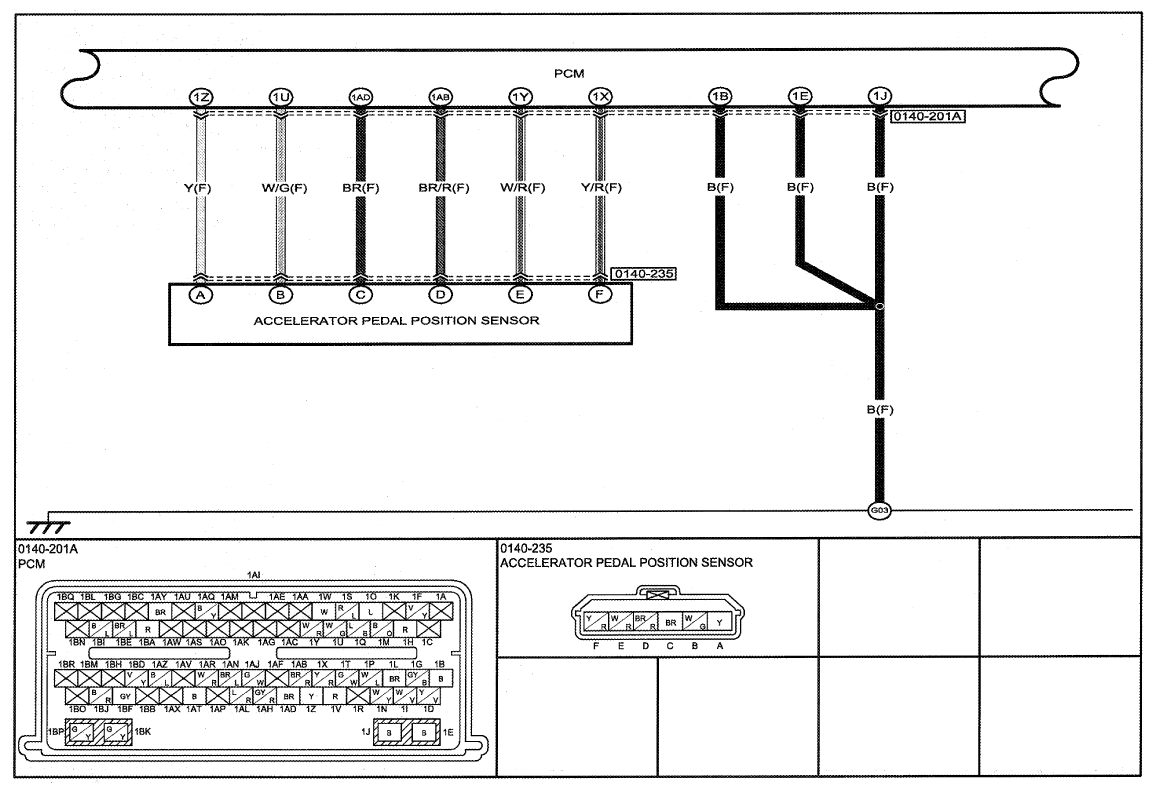

Fig 19: Control System (MZI 3.7 V6) Wiring Diagram (0140-2j); 1 Of 2

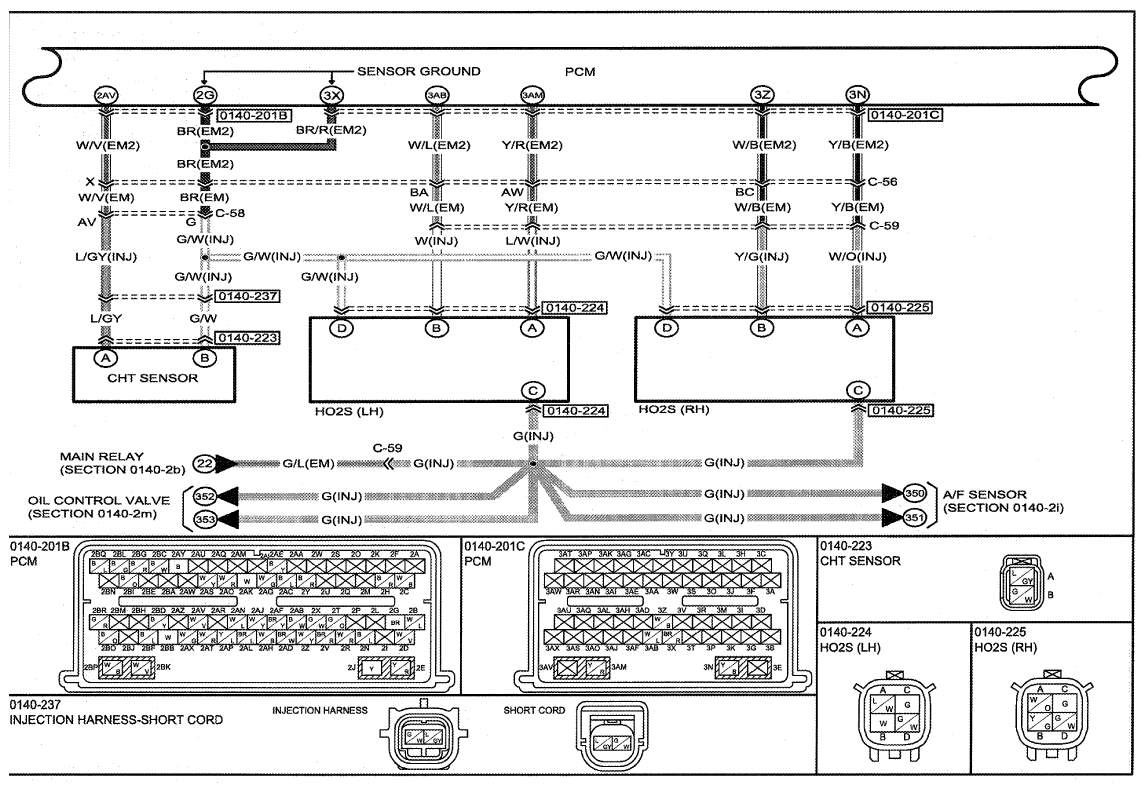

Fig 20: Control System (MZI 3.7 V6) Wiring Diagram (0140-2j); 2 Of 2

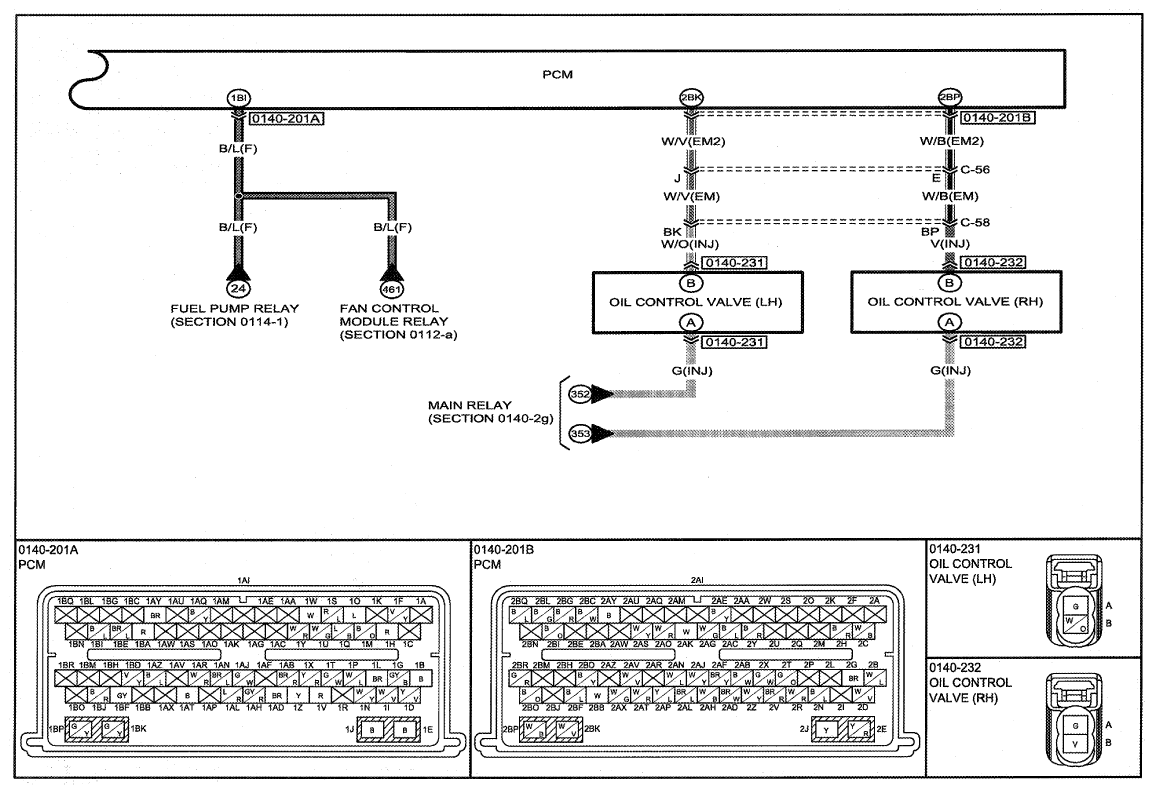

Fig 21: Control System (MZI 3.7 V6) Wiring Diagram (0140-2k); 1 Of 2

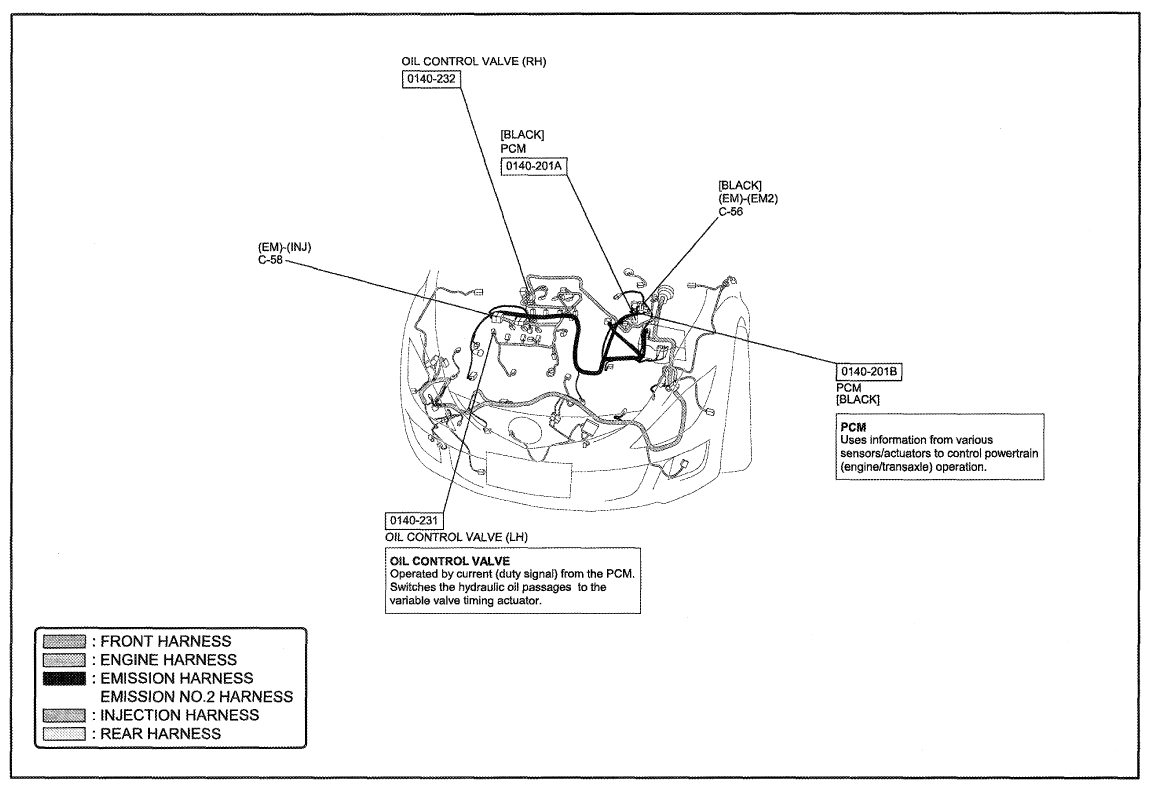

Fig 22: Control System (MZI 3.7 V6) Wiring Diagram (0140-2k); 2 Of 2

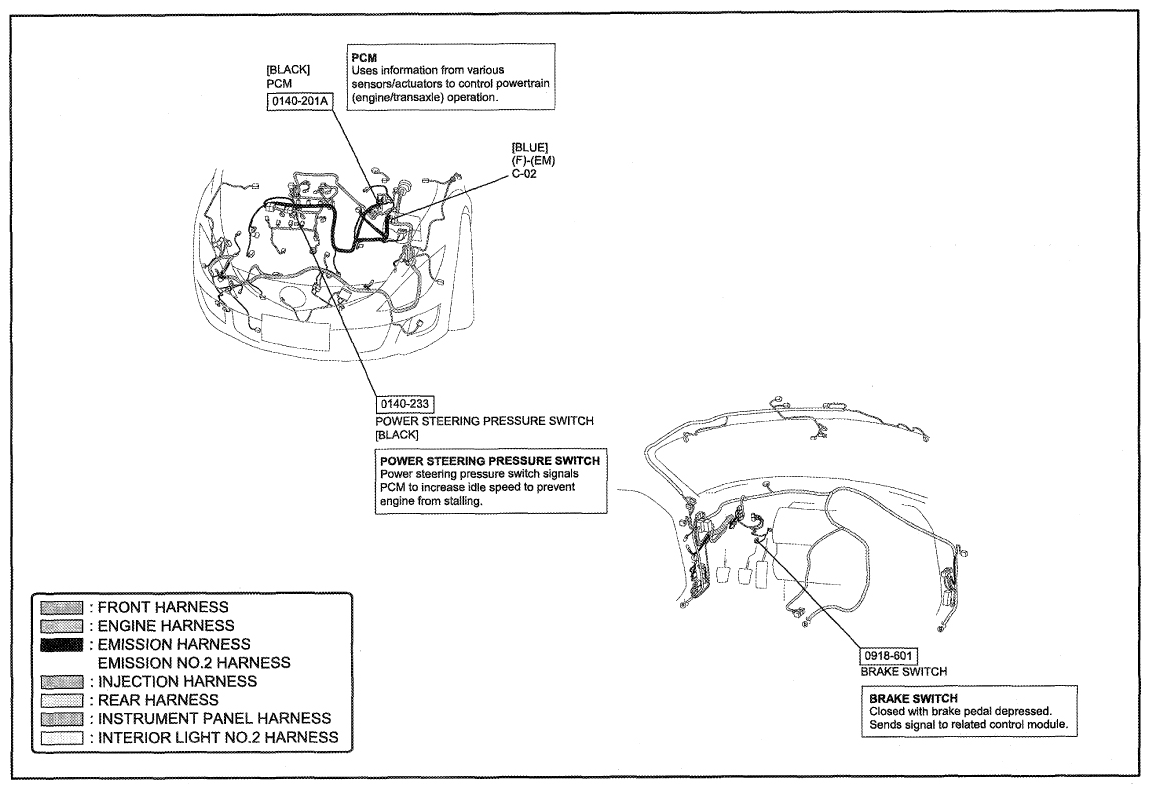

Fig 23: Control System (MZI 3.7 V6) Wiring Diagram (0140-2l); 1 Of 2
Fig 24: Control System (MZI 3.7 V6) Wiring Diagram (0140-2l); 2 Of 2
Fig 25: Control System (MZI 3.7 V6) Wiring Diagram (0140-2m); 1 Of 2
Fig 26: Control System (MZI 3.7 V6) Wiring Diagram (0140-2m); 2 Of 2
