Keyless Entry System (Without Advanced Keyless Entry And Push Button Start System) (Includes TPMS Information)

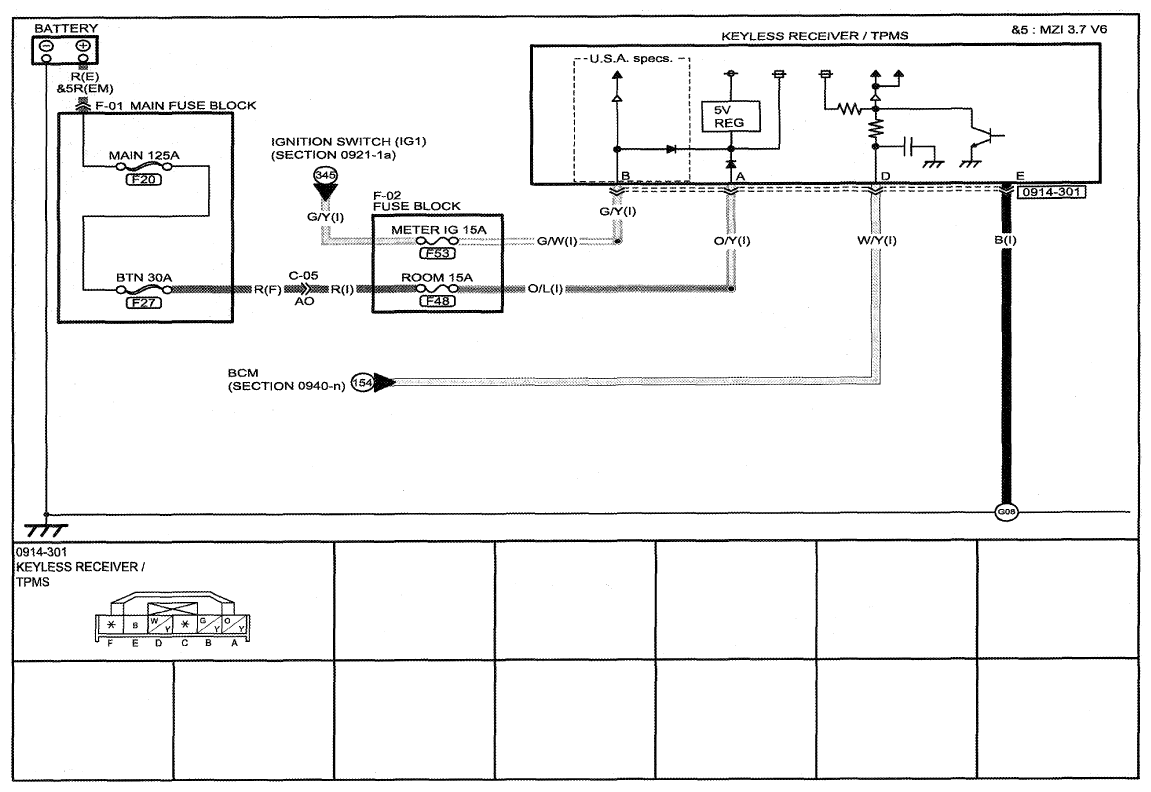

Fig 1: Keyless Entry System (Includes TPMS Information) Wiring Diagram (0914-3); 1 Of 2
G09120658
Fig 2: Keyless Entry System (Includes TPMS Information) Wiring Diagram (0914-3); 2 Of 2
G09120659
