Advanced Keyless Entry And Push Button Start System (Includes TPMS Information)

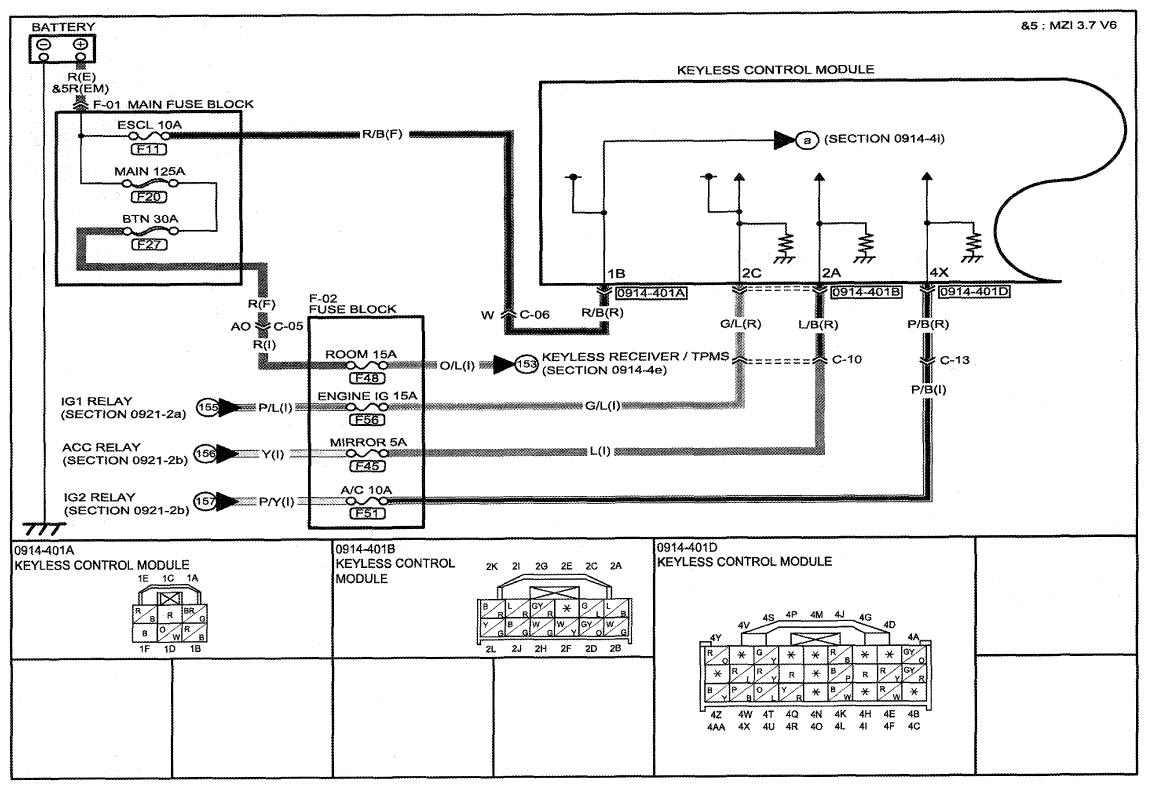

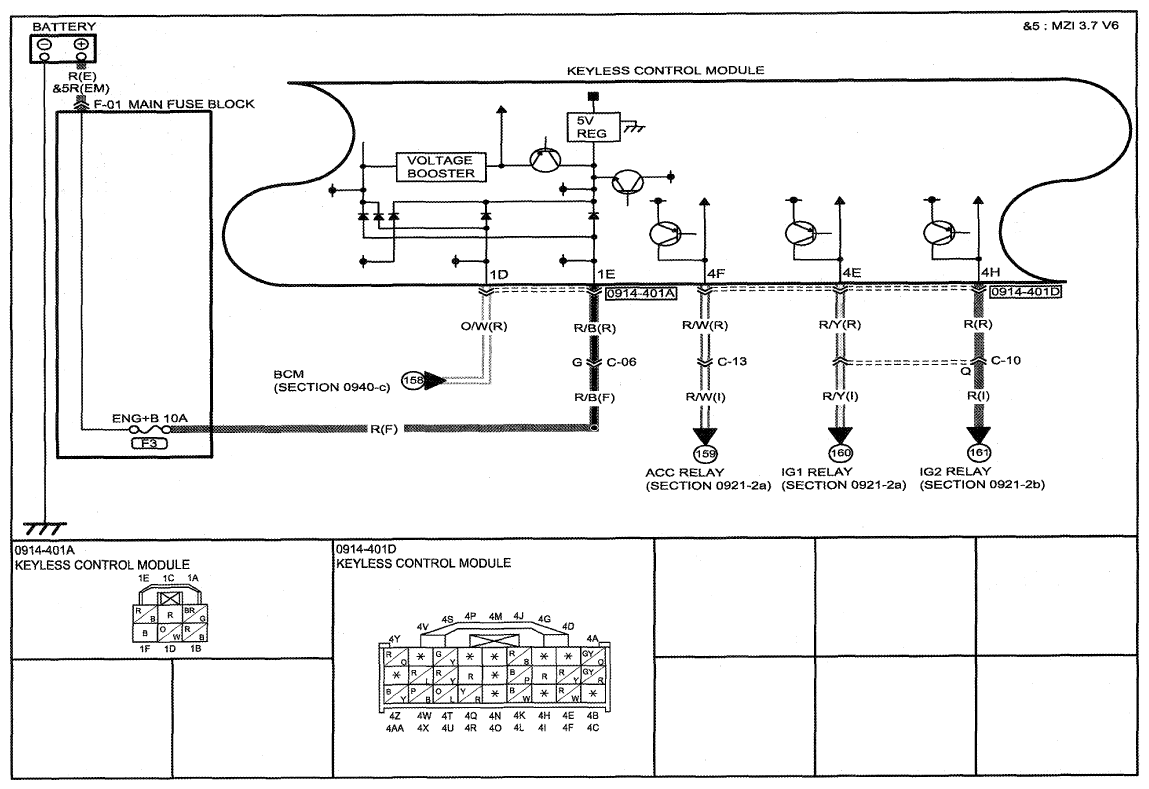

Fig 1: Advanced Keyless Entry And Push Button Start System (Includes TPMS Information) Wiring Diagram (0914-4a); 1 Of 2
Fig 2: Advanced Keyless Entry And Push Button Start System (Includes TPMS Information) Wiring Diagram (0914-4a); 2 Of 2

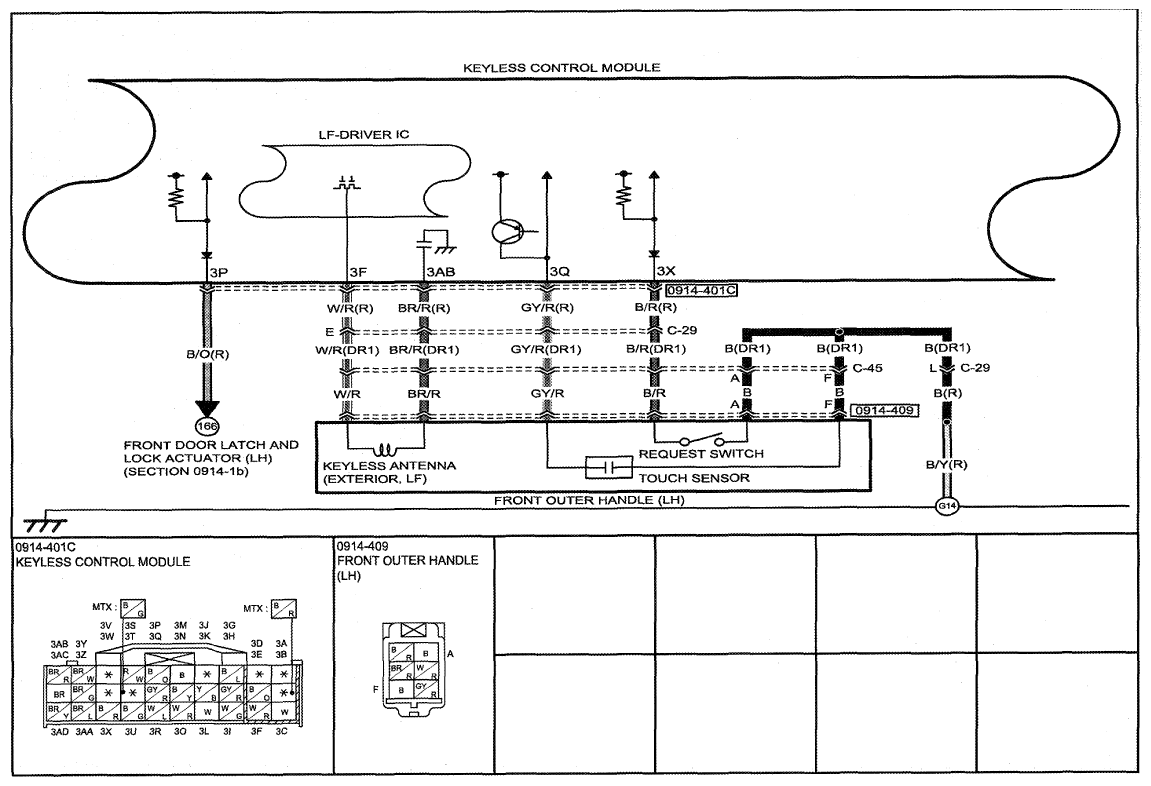

Fig 3: Advanced Keyless Entry And Push Button Start System (Includes TPMS Information) Wiring Diagram (0914-4b); 1 Of 2
Fig 4: Advanced Keyless Entry And Push Button Start System (Includes TPMS Information) Wiring Diagram (0914-4b); 2 Of 2

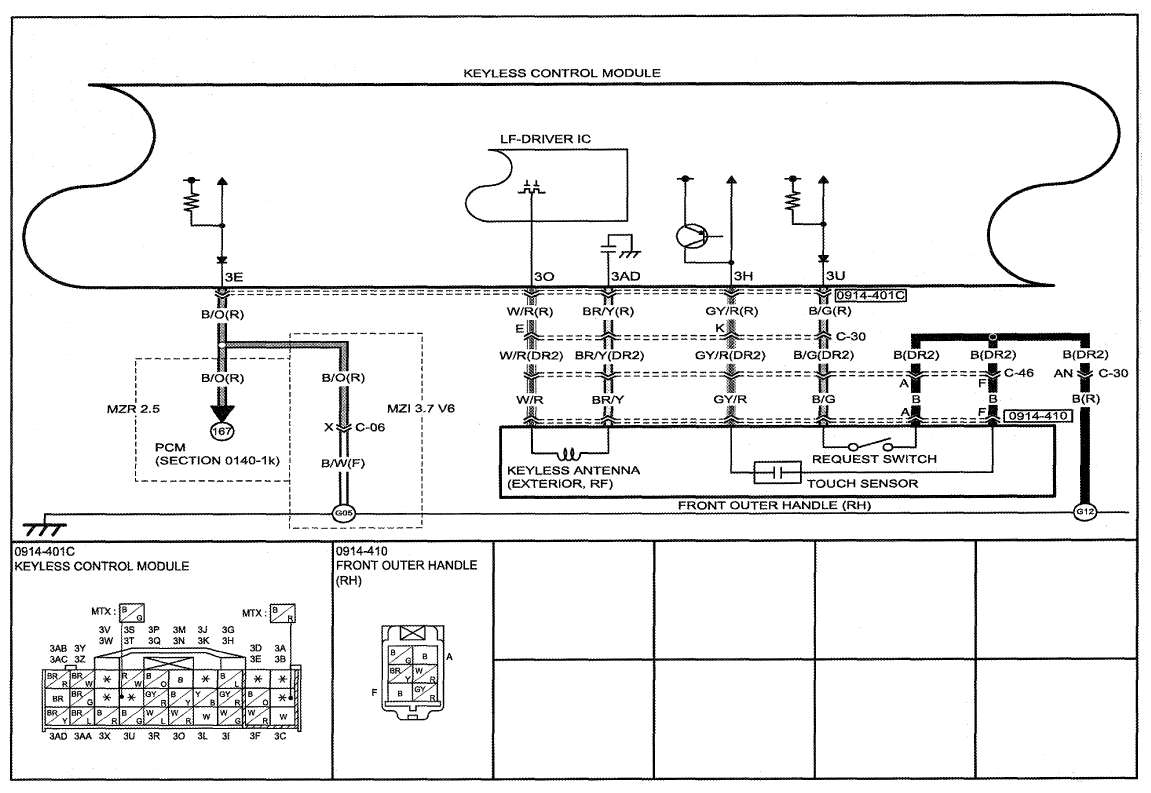

Fig 5: Advanced Keyless Entry And Push Button Start System (Includes TPMS Information) Wiring Diagram (0914-4c); 1 Of 2
Fig 6: Advanced Keyless Entry And Push Button Start System (Includes TPMS Information) Wiring Diagram (0914-4c); 2 Of 2
Fig 7: Advanced Keyless Entry And Push Button Start System (Includes TPMS Information) Wiring Diagram (0914-4d); 1 Of 2
Fig 8: Advanced Keyless Entry And Push Button Start System (Includes TPMS Information) Wiring Diagram (0914-4d); 2 Of 2

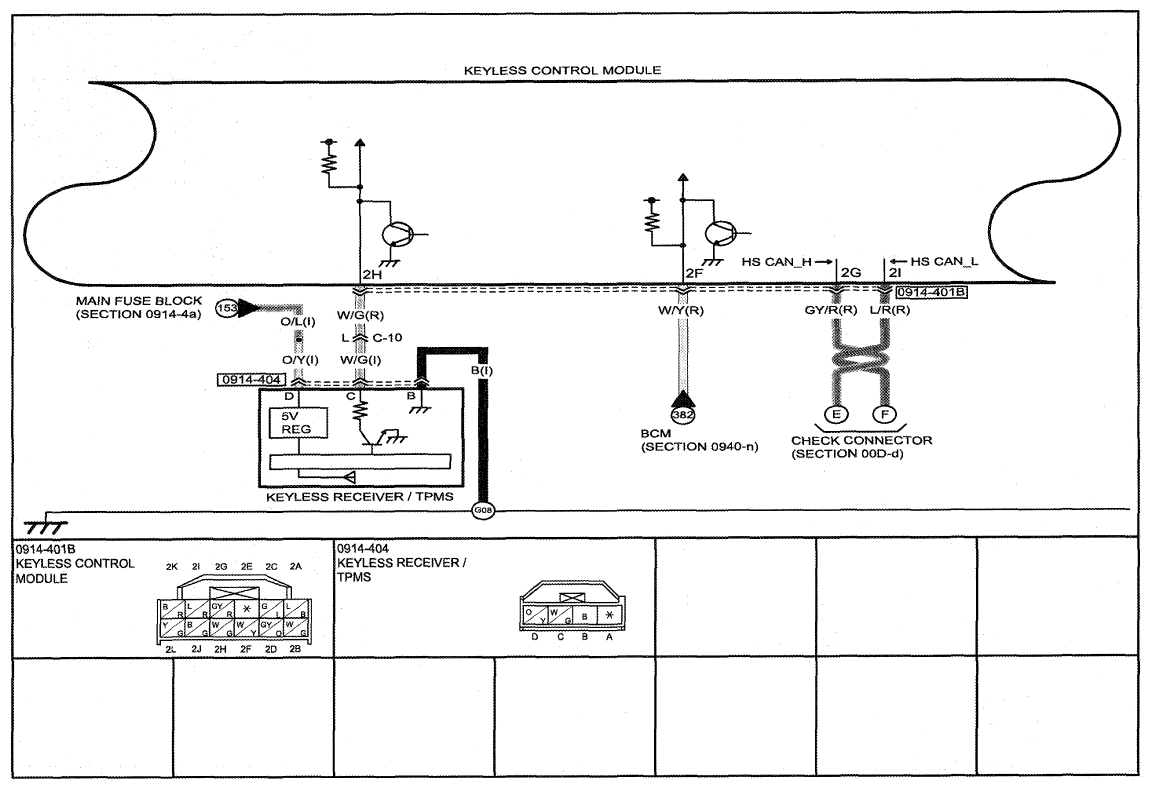

Fig 9: Advanced Keyless Entry And Push Button Start System (Includes TPMS Information) Wiring Diagram (0914-4e); 1 Of 2
Fig 10: Advanced Keyless Entry And Push Button Start System (Includes TPMS Information) Wiring Diagram (0914-4e); 2 Of 2
Fig 11: Advanced Keyless Entry And Push Button Start System (Includes TPMS Information) Wiring Diagram (0914-4f); 1 Of 2
Fig 12: Advanced Keyless Entry And Push Button Start System (Includes TPMS Information) Wiring Diagram (0914-4f); 2 Of 2

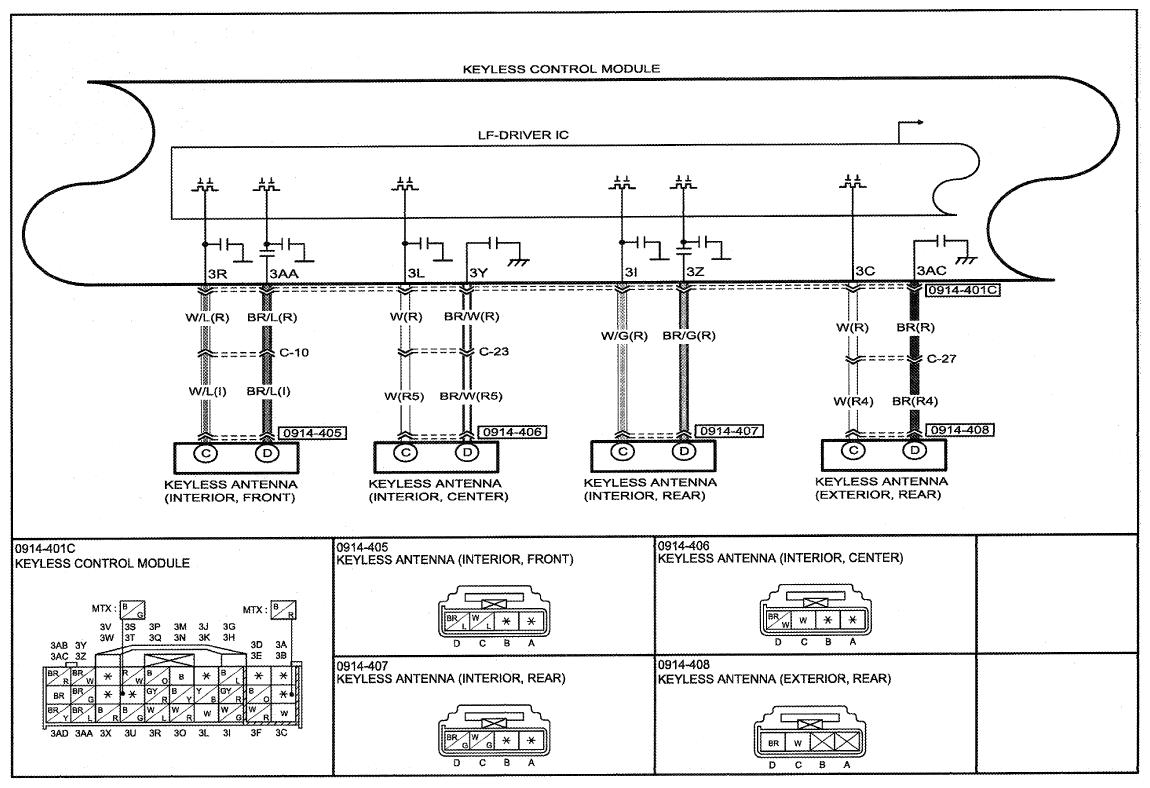

Fig 13: Advanced Keyless Entry And Push Button Start System (Includes TPMS Information) Wiring Diagram (0914-4g); 1 Of 2
Fig 14: Advanced Keyless Entry And Push Button Start System (Includes TPMS Information) Wiring Diagram (0914-4g); 2 Of 2
Fig 15: Advanced Keyless Entry And Push Button Start System (Includes TPMS Information) Wiring Diagram (0914-4h); 1 Of 2
Fig 16: Advanced Keyless Entry And Push Button Start System (Includes TPMS Information) Wiring Diagram (0914-4h); 2 Of 2

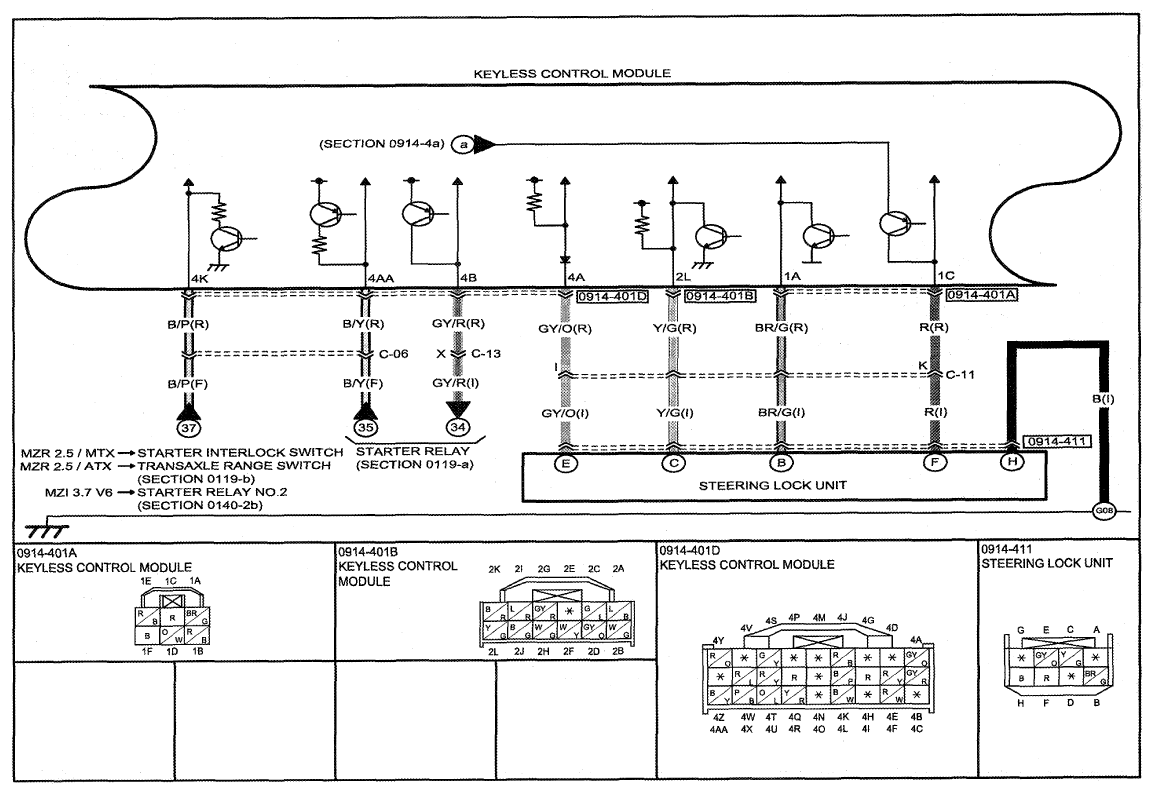

Fig 17: Advanced Keyless Entry And Push Button Start System (Includes TPMS Information) Wiring Diagram (0914-4i); 1 Of 2
Fig 18: Advanced Keyless Entry And Push Button Start System (Includes TPMS Information) Wiring Diagram (0914-4i); 2 Of 2
