(With Advanced Keyless Entry And Push Button Start System)

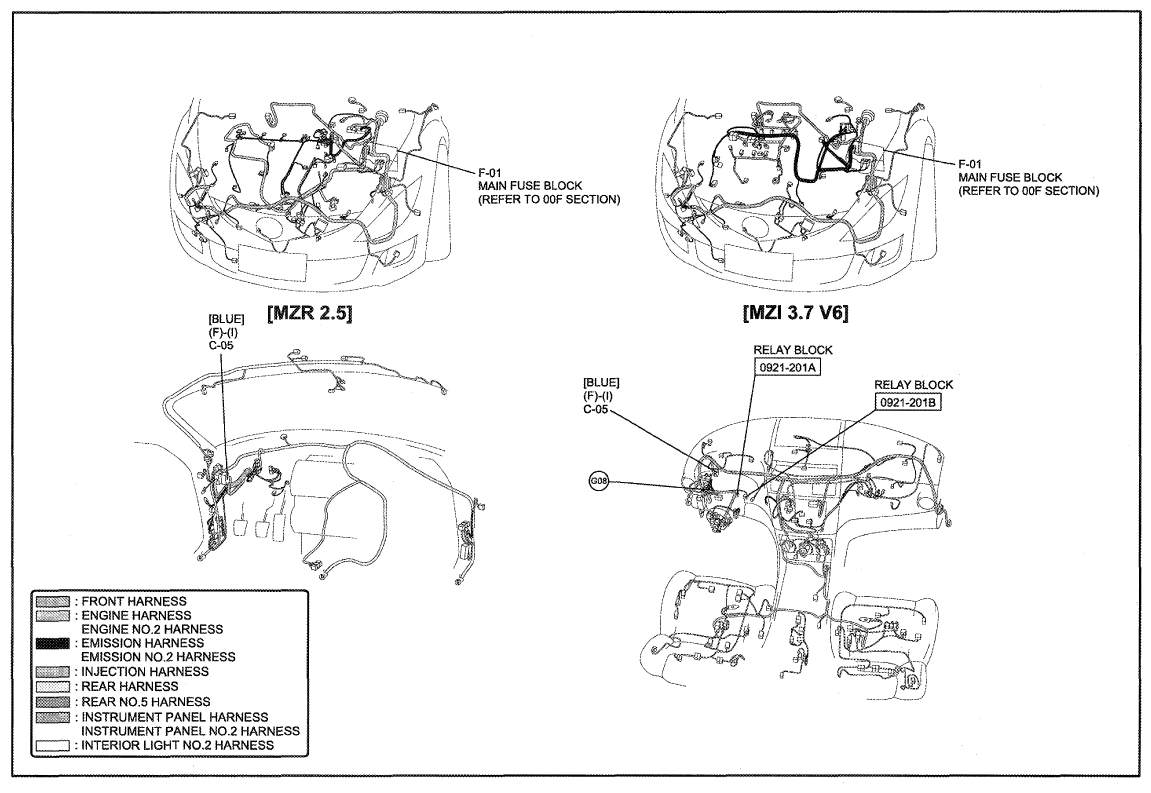

Fig 1: Power (With Advanced Keyless Entry And Push Button Start System) Wiring Diagram (0921-2a); 1 Of 2

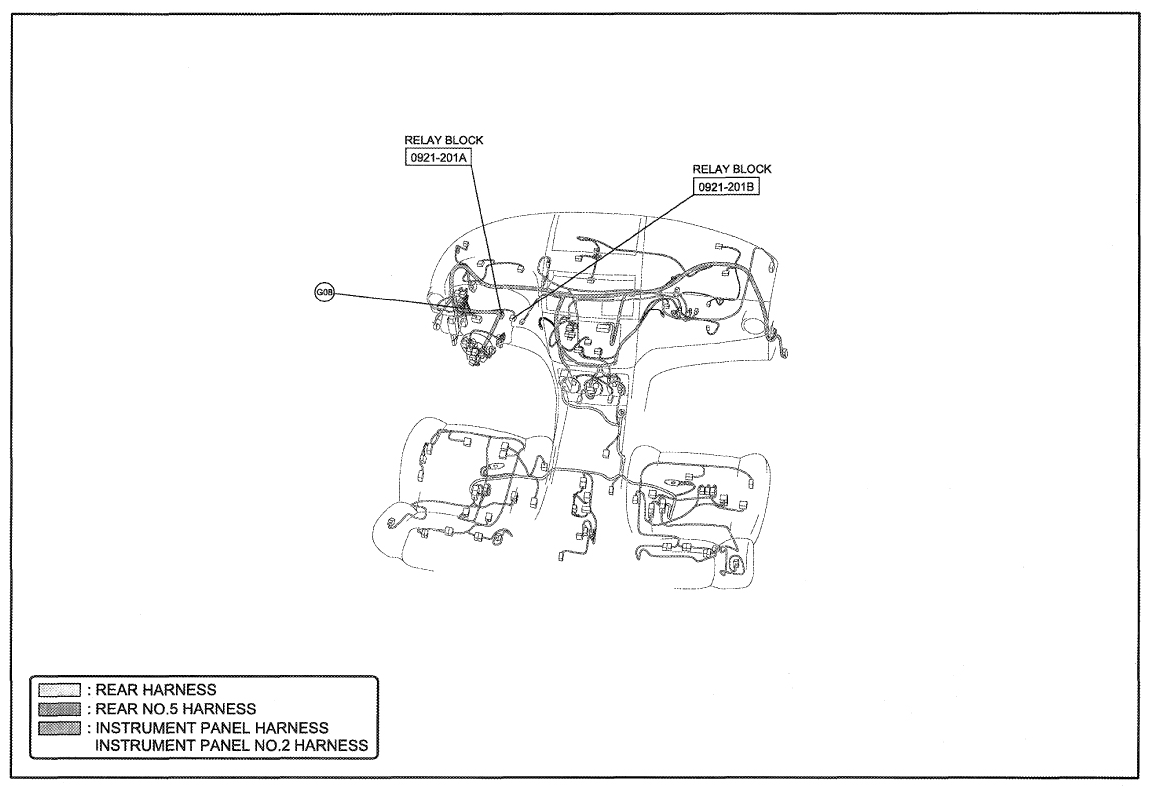

Fig 2: Power (With Advanced Keyless Entry And Push Button Start System) Wiring Diagram (0921-2a); 2 Of 2

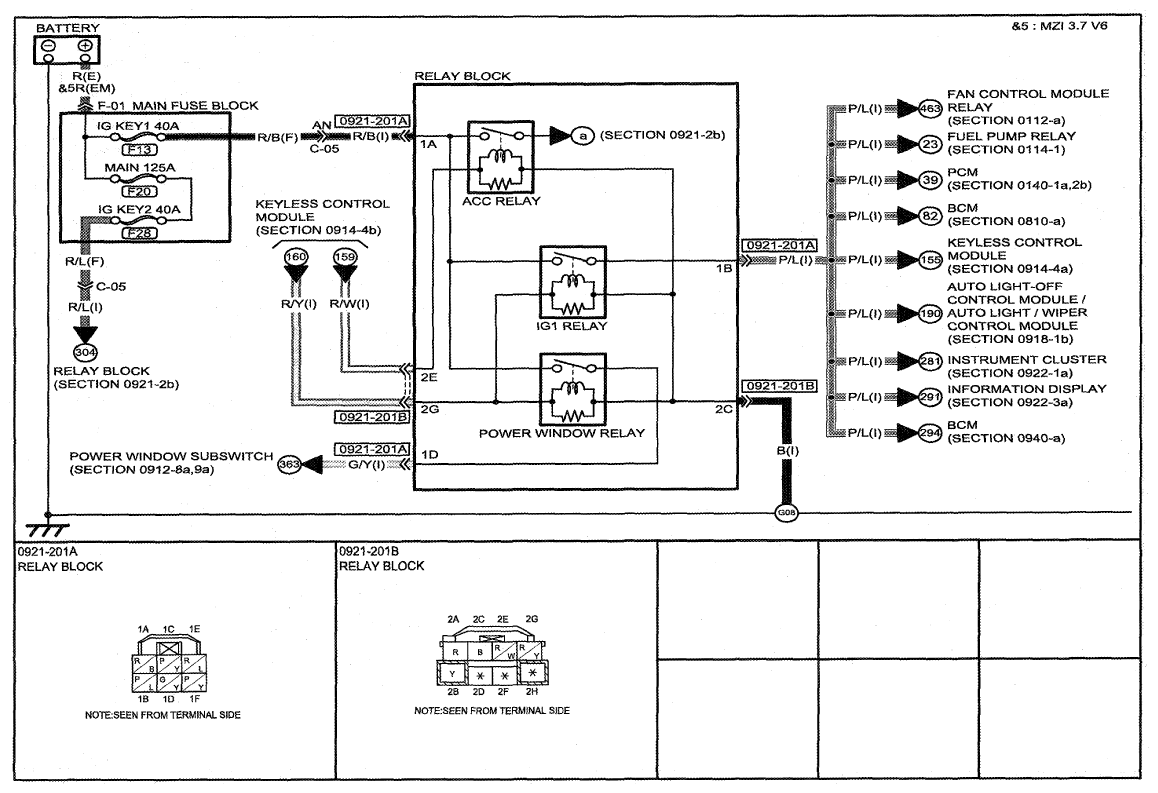

Fig 3: Power (With Advanced Keyless Entry And Push Button Start System) Wiring Diagram (0921-2b); 1 Of 2

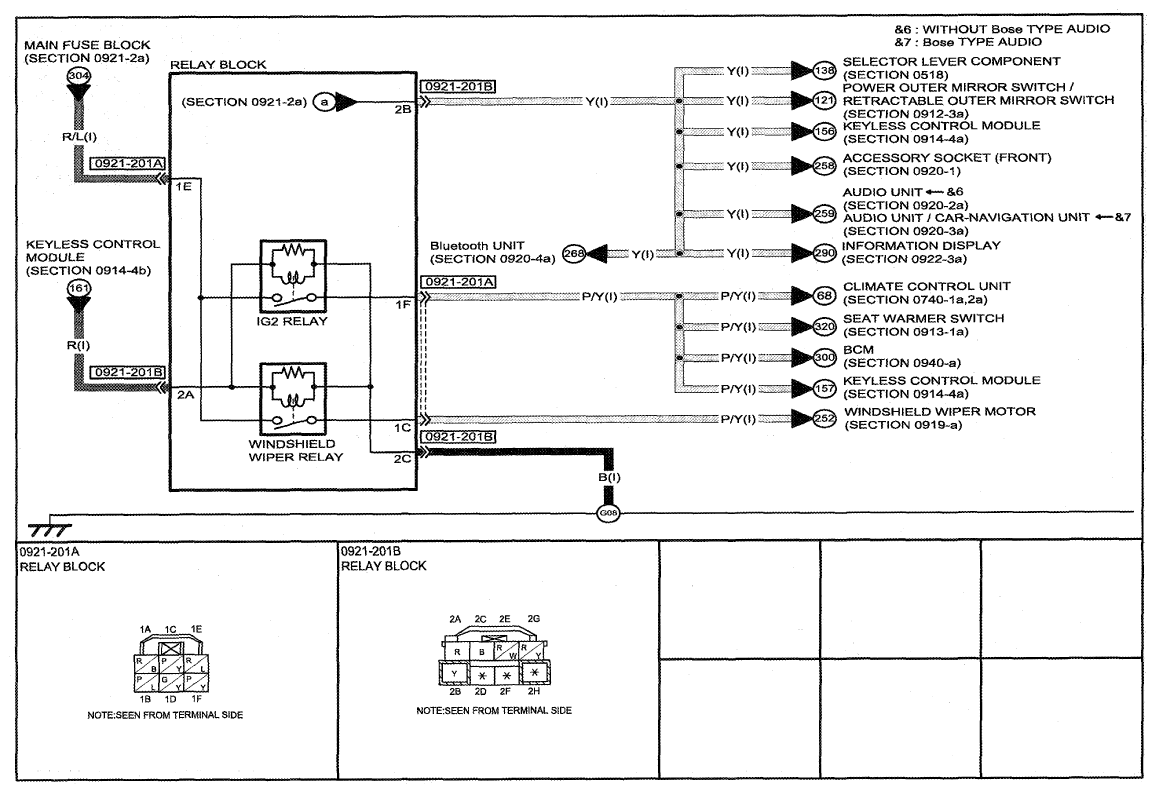

Fig 4: Power (With Advanced Keyless Entry And Push Button Start System) Wiring Diagram (0921-2b); 2 Of 2
