Electrical Troubleshooting Tools: Ohmmeter

CAUTION:
  • Do not connect the ohmmeter to any circuit where voltage is applied. This will damage the ohmmeter.
  • The ohmmeter is used to measure the resistance between two points in a circuit and to inspect for continuity and short circuits.

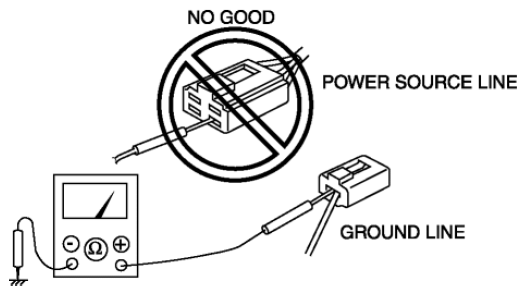

    Fig 1: Caution - Do Not Connect Ohmmeter To Any Circuit Where Voltage Is Applied
    G08140072
