Electrical System: Connectors: Inspection

CAUTION:

To prevent damage to the terminal, wrap a thin wire around the tester probe before inserting into terminal.
When a tester is used to inspect for continuity or measuring voltage, insert the tester probe from the wiring harness side.

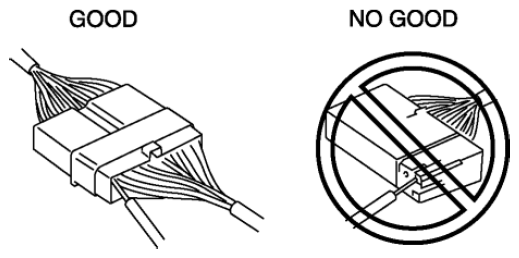

Fig 1: Caution - DO NOT Probe Connector Terminals, Backprobe Harness Where Possible
Inspect the terminals of waterproof connectors from the connector side since they cannot be accessed from the wiring harness side.

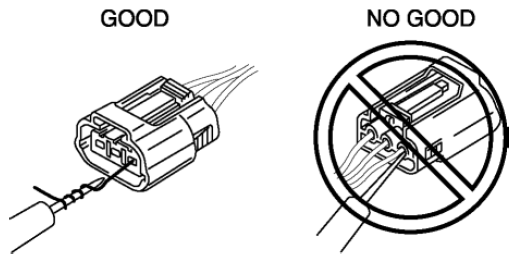

Fig 2: Caution - Inspect Terminals Of Waterproof Connectors From Connector Side
