Vehicle Interior

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the lower panel. (See LOWER PANEL REMOVAL/INSTALLATION .)
  3. Remove the trunk lid opener switch in the direction of the arrow (2) shown in the figure while pressing the trunk lid opener warning switch tabs in the direction of the arrow (1)

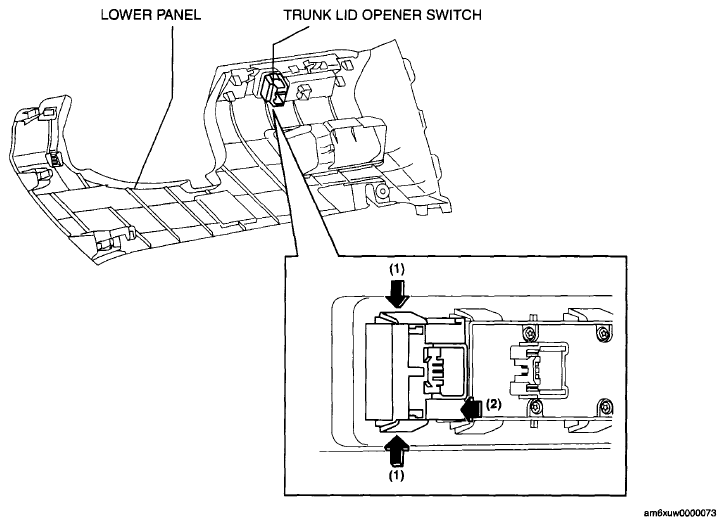

    Fig 1: Removing Trunk Lid Opener Switch
    G06201005Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
