Front Door Latch Switch Inspection

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. To access the glass installation bolt, position the front door glass so that the distance from the top of the front door glass to the upper part of the front beltline molding is approx. 80 mm {3.1 in}
    2. Fig 1: Positioning Front Door Glass
    G06200913Courtesy of MAZDA MOTORS CORP.
  2. Disconnect the negative battery cable.
  3. Remove the following parts:
    1. Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION .)
    2. Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
    3. Front door speaker (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION .)
    4. Front door glass (See FRONT DOOR GLASS REMOVAL/INSTALLATION .)
    5. Front door module panel (See FRONT DOOR MODULE PANEL REMOVAL/INSTALLATION .)
    6. Front door latch and lock actuator (See FRONT DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION )
  4. Press the latch in using a flathead screwdriver to inspect the latch lever condition.

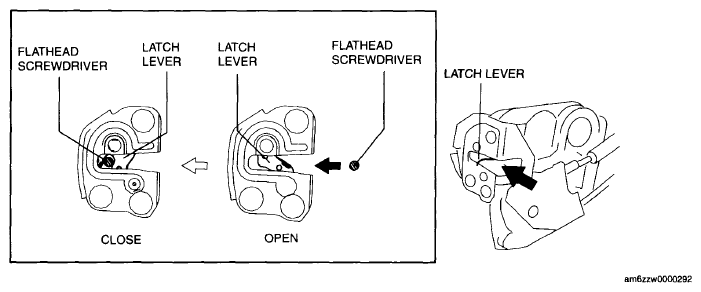

    Fig 2: Inspecting Latch Lever Condition
    G06200914Courtesy of MAZDA MOTORS CORP.
  5. Verify that the continuity is as indicated in the table.
    Fig 3: Identifying Door Latch Switch Circuits With Connectors
    G06200915Courtesy of MAZDA MOTORS CORP.
    • If not as indicated in the table, replace the front door latch and lock actuator.
    Fig 4: Door Latch Switch Continuity Table
    G06200916Courtesy of MAZDA MOTORS CORP.
