Parking/Front Turn Light Bulb Removal/Installation

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the fasteners and slightly bend back the mudguard.
  3. Rotate the parking/front turn light socket in the direction of the arrow (1) shown in the figure.

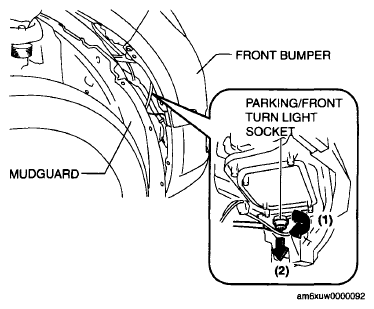

    4. Fig 1: Rotating Parking/Front Turn Light Socket
    G06201045Courtesy of MAZDA MOTORS CORP.
  4. Pull the parking/front turn light socket in the direction of the arrow (2) shown in the figure and remove it.
  5. Remove the parking/front turn light bulb.
    6. Fig 2: Removing Parking/Front Turn Light Bulb
    G06201046Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
