Inspection Using An Oscilloscope (Reference)
>>
CMP sensor signal
CMP sensor signal

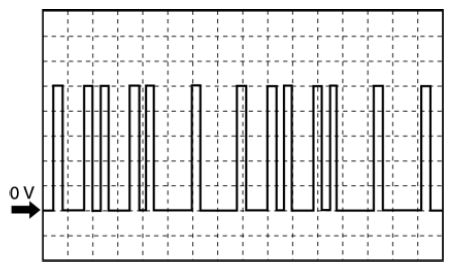

Fig 1: CMP Sensor Signal Waveform
PCM terminals
2S(+)-body ground(-)
Oscilloscope setting
1 V/DIV (Y), 25 ms/DIV (X), DC range
Vehicle condition
Idle (after warm up)
