Dynamic Stability Control

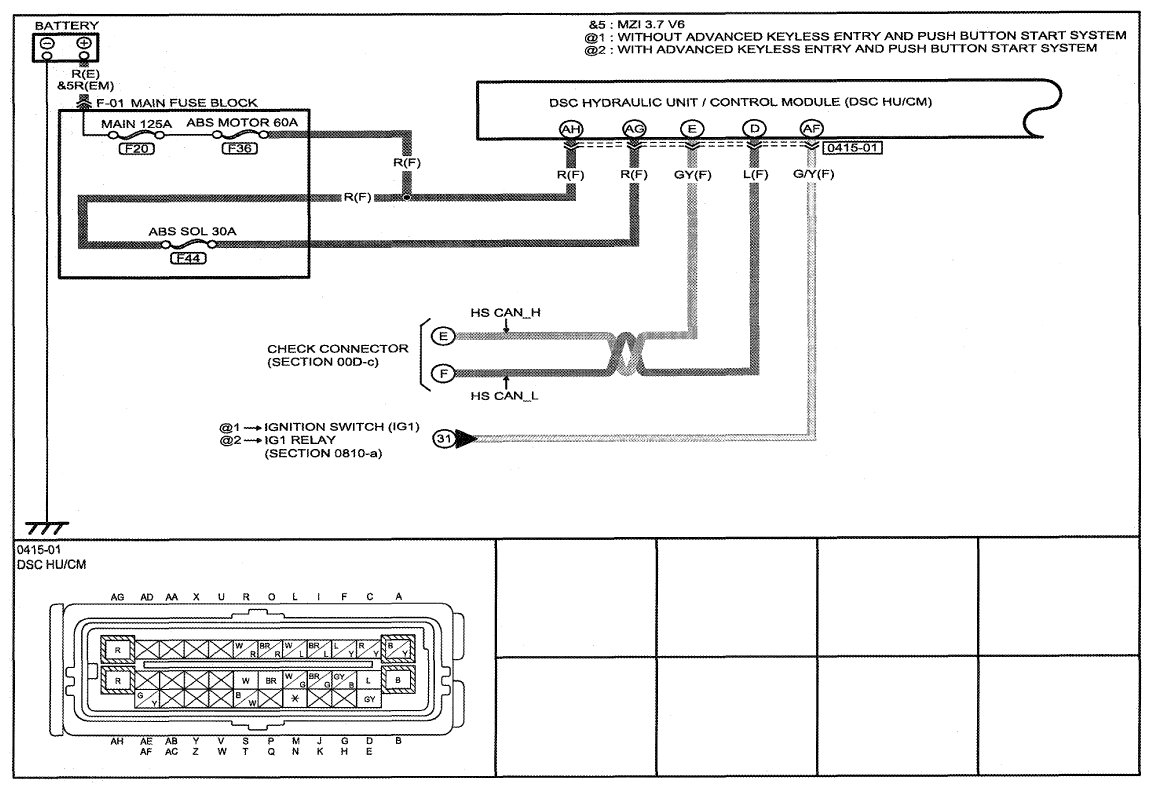

Fig 1: Dynamic Stability Control Wiring Diagram (0415-a); 1 Of 2
G09120522

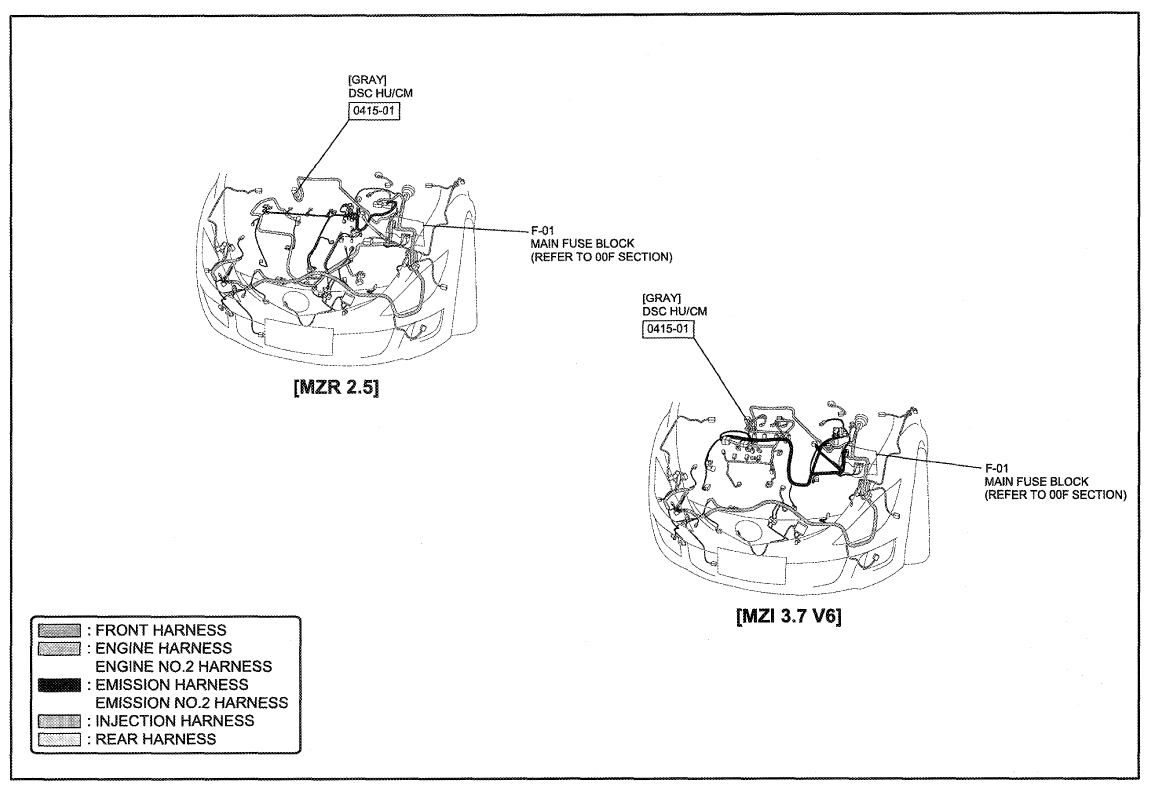

Fig 2: Dynamic Stability Control Wiring Diagram (0415-a); 2 Of 2
G09120523

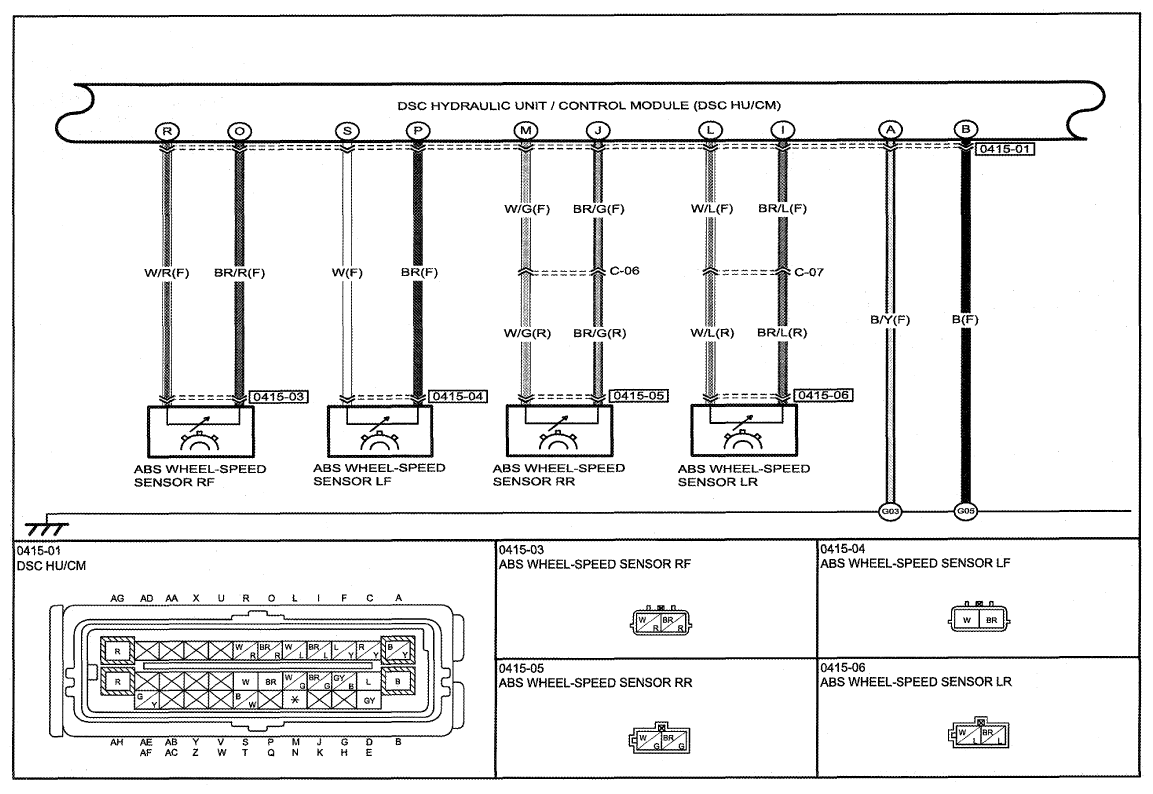

Fig 3: Dynamic Stability Control Wiring Diagram (0415-b); 1 Of 2
G09120524

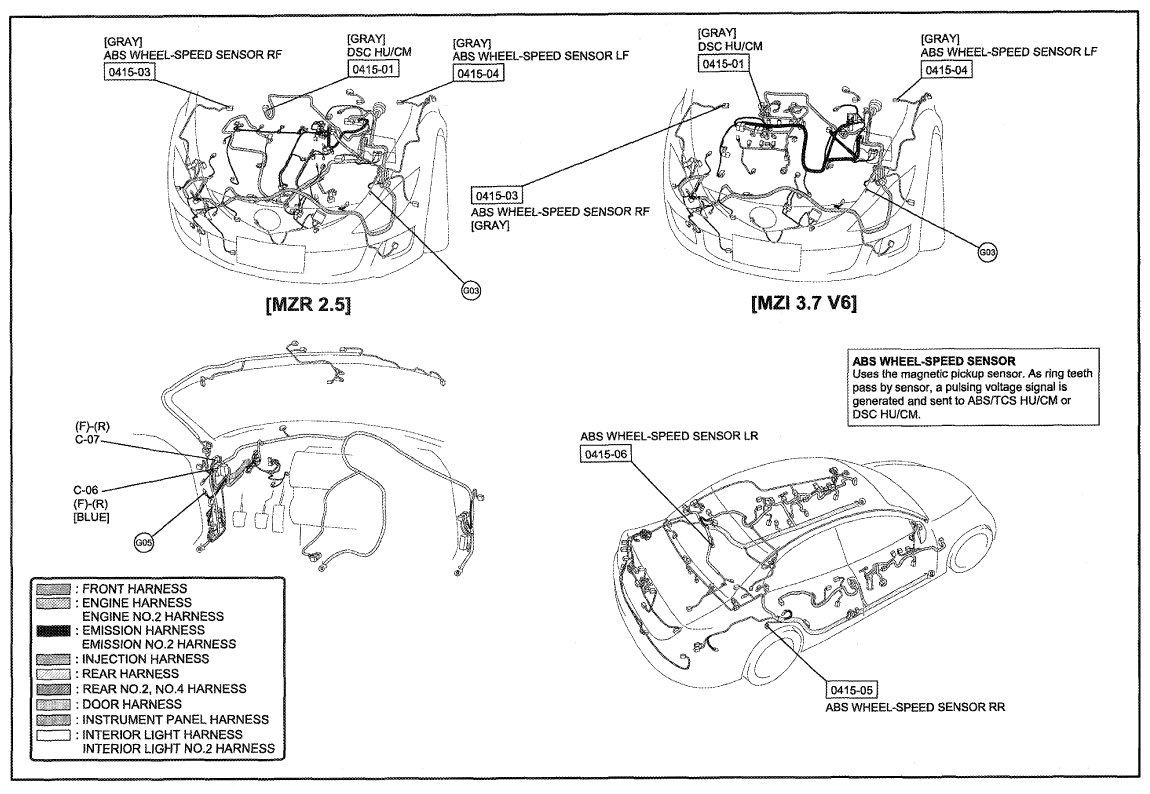

Fig 4: Dynamic Stability Control Wiring Diagram (0415-b); 2 Of 2
G09120525

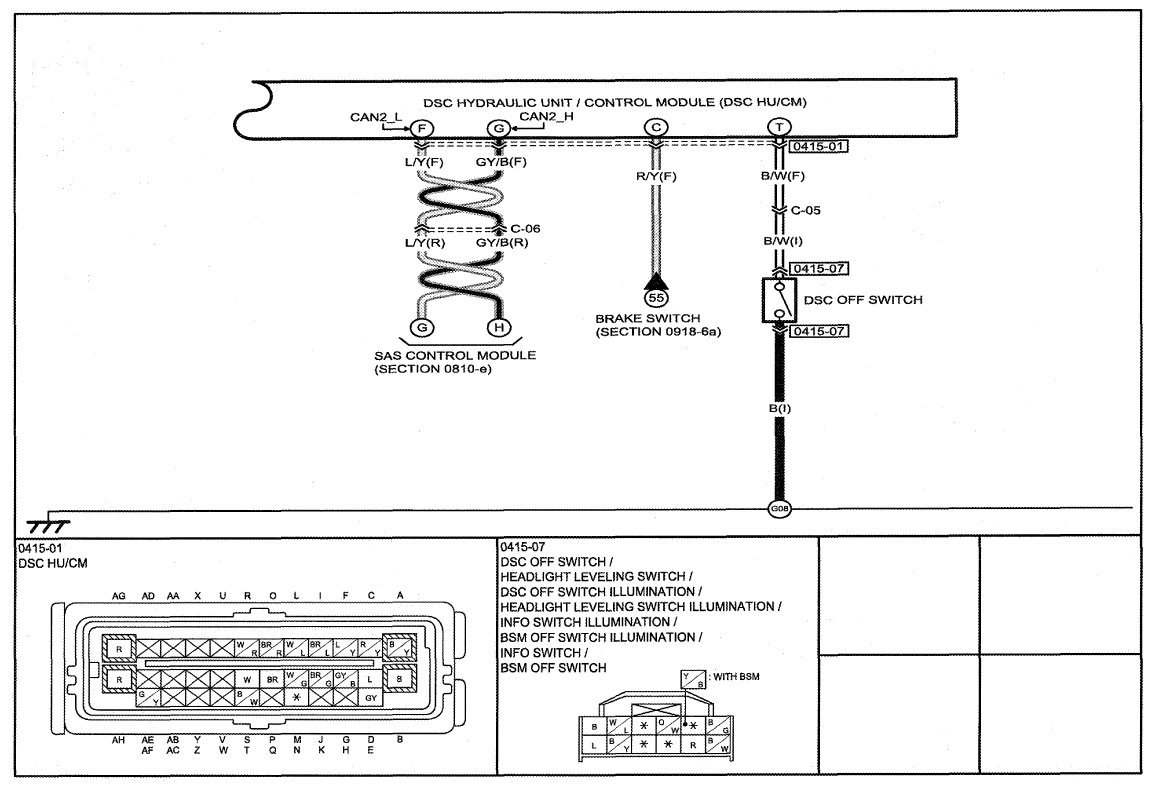

Fig 5: Dynamic Stability Control Wiring Diagram (0415-c); 1 Of 2
G09120526

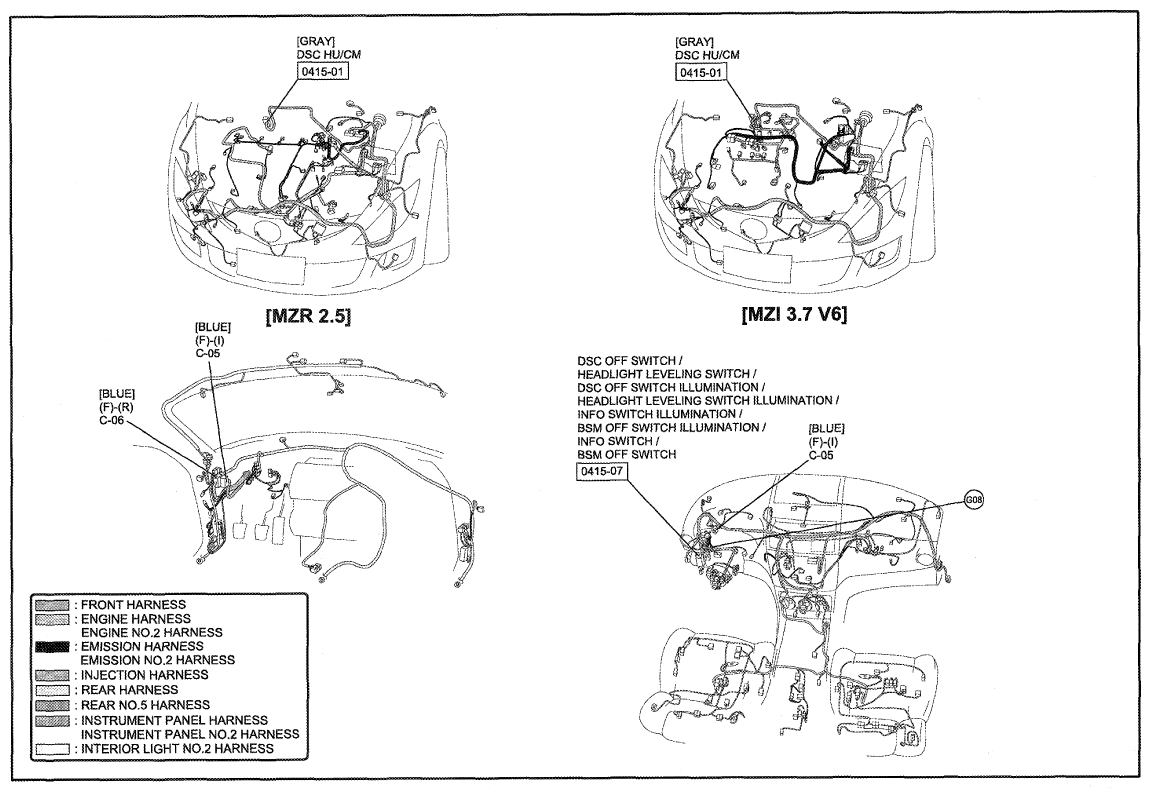

Fig 6: Dynamic Stability Control Wiring Diagram (0415-c); 2 Of 2
G09120527
