With Heated Outer Mirror

Disconnect the negative battery cable.
Remove the outer mirror glass. (See OUTER MIRROR GLASS REMOVAL .)
Verify that the resistance is as indicated in the table.

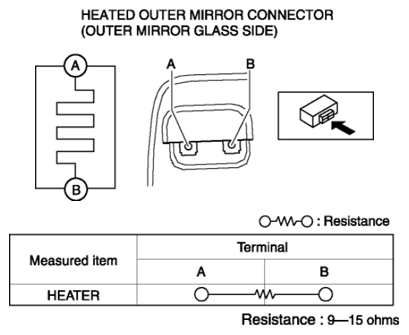

Fig 1: Heated Outer Mirror Connector Terminal Resistance Chart (Outer Mirror Glass Side)
- If not as indicated in the table, replace the outer mirror glass. (See OUTER MIRROR GLASS REMOVAL .) (See OUTER MIRROR GLASS INSTALLATION .)
