Wiper And Washer Switch Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION .)
  3. Remove in the order indicated in the table.

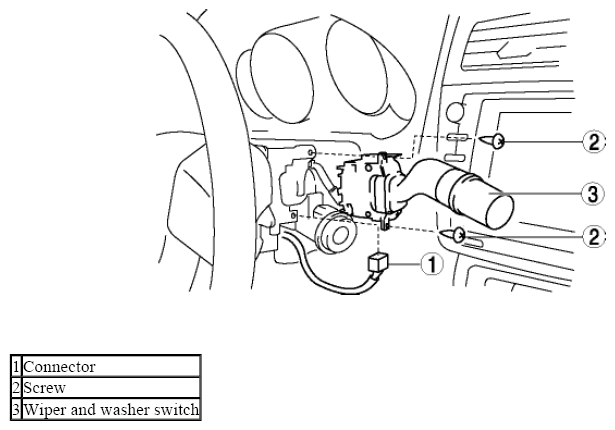

    Fig 1: Wiper And Washer Switch, Connector With Screw
    G08144916
  4. Install in the reverse order of removal.
