Windshield Wiper Arm And Blade Removal/Installation: Notes

  1. Remove in the order indicated in the table.
  2. Install in the reverse order of removal.
  3. Adjust the windshield wiper arm and blade. (See WINDSHIELD WIPER ARM AND BLADE ADJUSTMENT .)

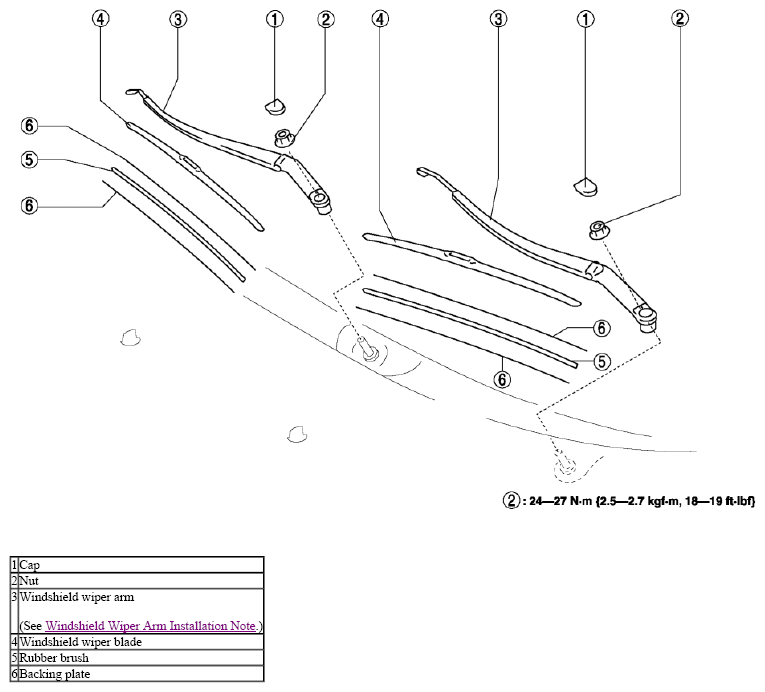

    Fig 1: Windshield Wiper Arm And Blade Replacement Components With Torque Specifications
    G08144899
