Windshield Washer Motor Inspection
- Disconnect the negative battery cable.
- Remove the front mudguard (RH). (See FRONT MUDGUARD REMOVAL/INSTALLATION .)
- Disconnect the windshield washer motor connector.

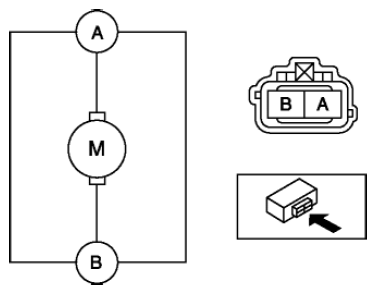

- After connecting washer motor terminal A to the positive battery terminal, and terminal B to the negative battery terminal, verify that washer fluid flows to the windshield washer hose.
- If there is any malfunction, replace the windshield washer motor. (See WINDSHIELD WASHER MOTOR REMOVAL/INSTALLATION .)
