Communication Devices
>>
Control System [Body Control Module]
>>
Body Control Module (BCM) Inspection
>>
Generated Pulse (Reference)
>>
Pattern 1
Pattern 1

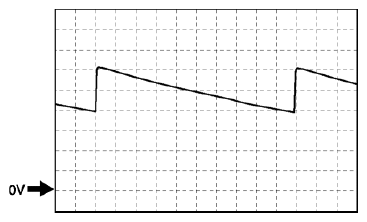

Fig 1: Generated Pulse - Pattern 1
Terminal: 8G (+) ↔ body ground (-)
Oscilloscope setting: 2 V/DIV (Y), 1 ms/DIV (X), DC range
