6 i Touring Plus
>>
Repair and Diagnosis (Single Page)
>>
Electrical
>>
Body Electrical
>>
OEM Wiring System
>>
Transmission/Transaxle
>>
Automatic Transaxle Shift Mechanism
>>
Key Interlock System/Shift-Lock System
Key Interlock System/Shift-Lock System

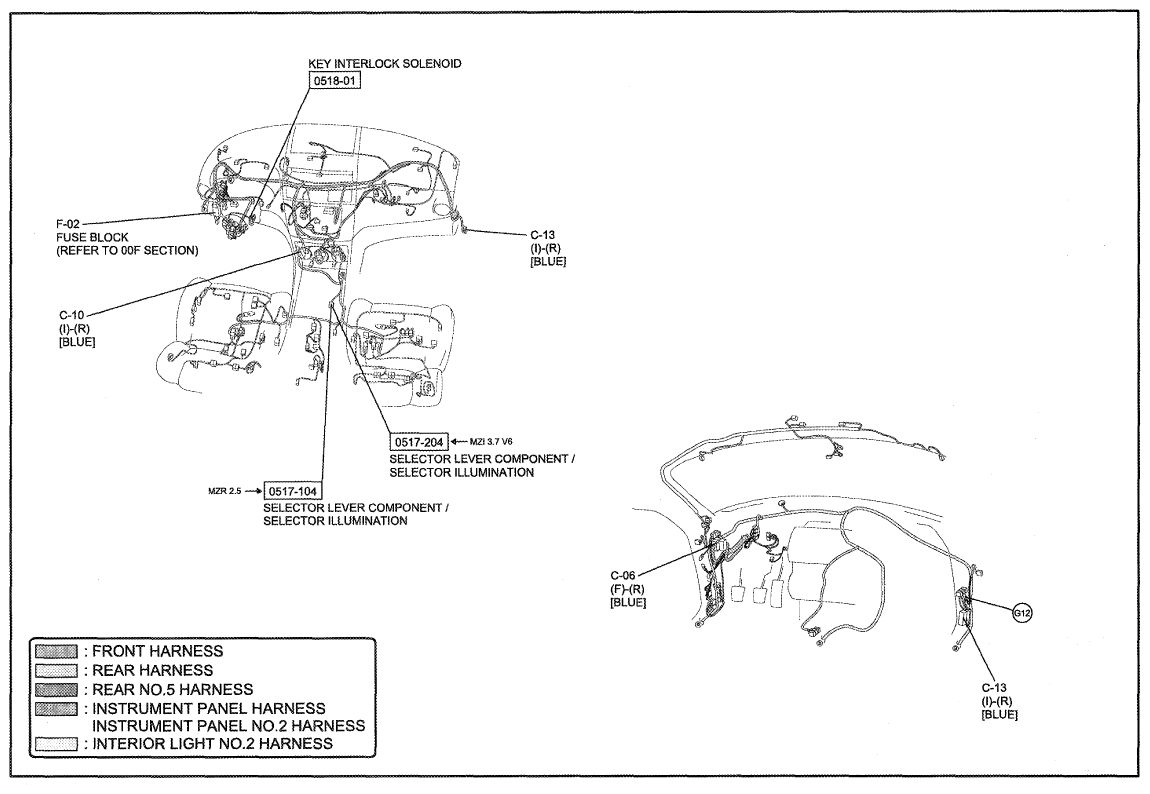

Fig 1: Key Interlock/Shift-Lock System Wiring Diagram (0518); 1 Of 2

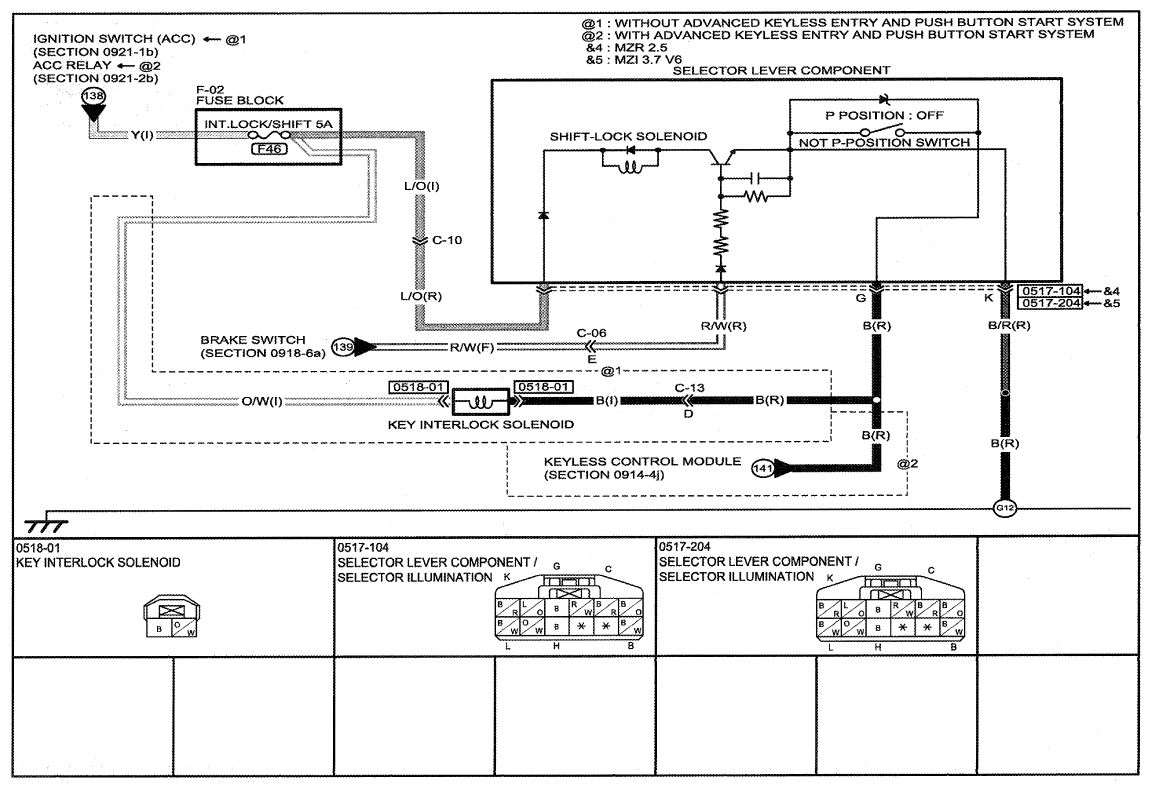

Fig 2: Key Interlock/Shift-Lock System Wiring Diagram (0518); 2 Of 2
