Power Window Main Switch

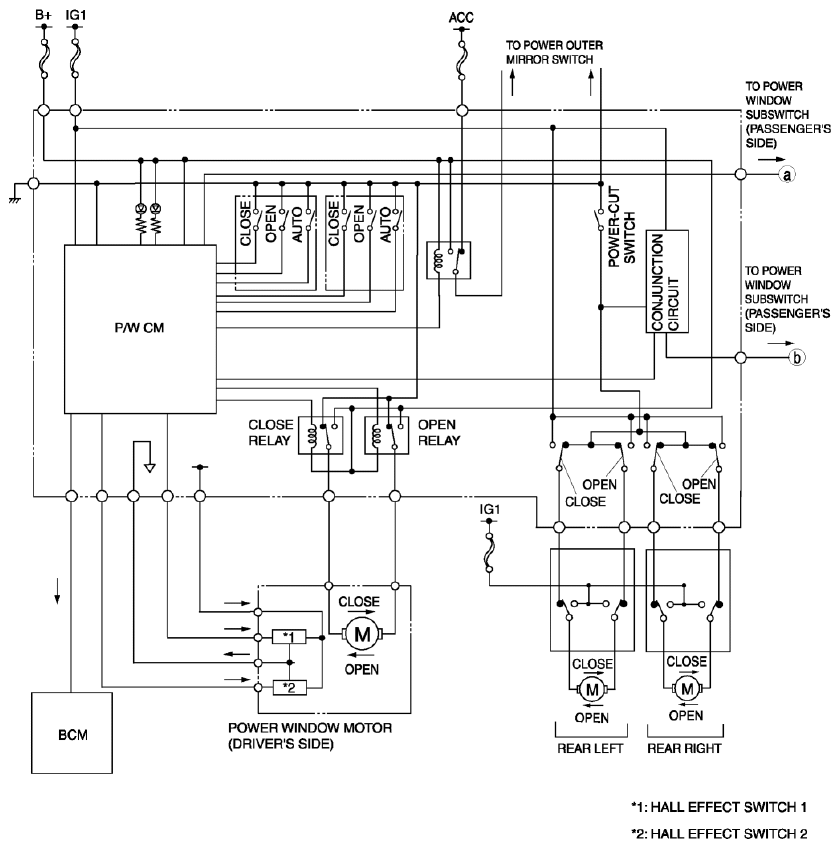

Fig 1: Power Window System Wiring Diagram - Power Window Main Switch (Auto-Open/Close Function)

G08144165
