Fuse Box

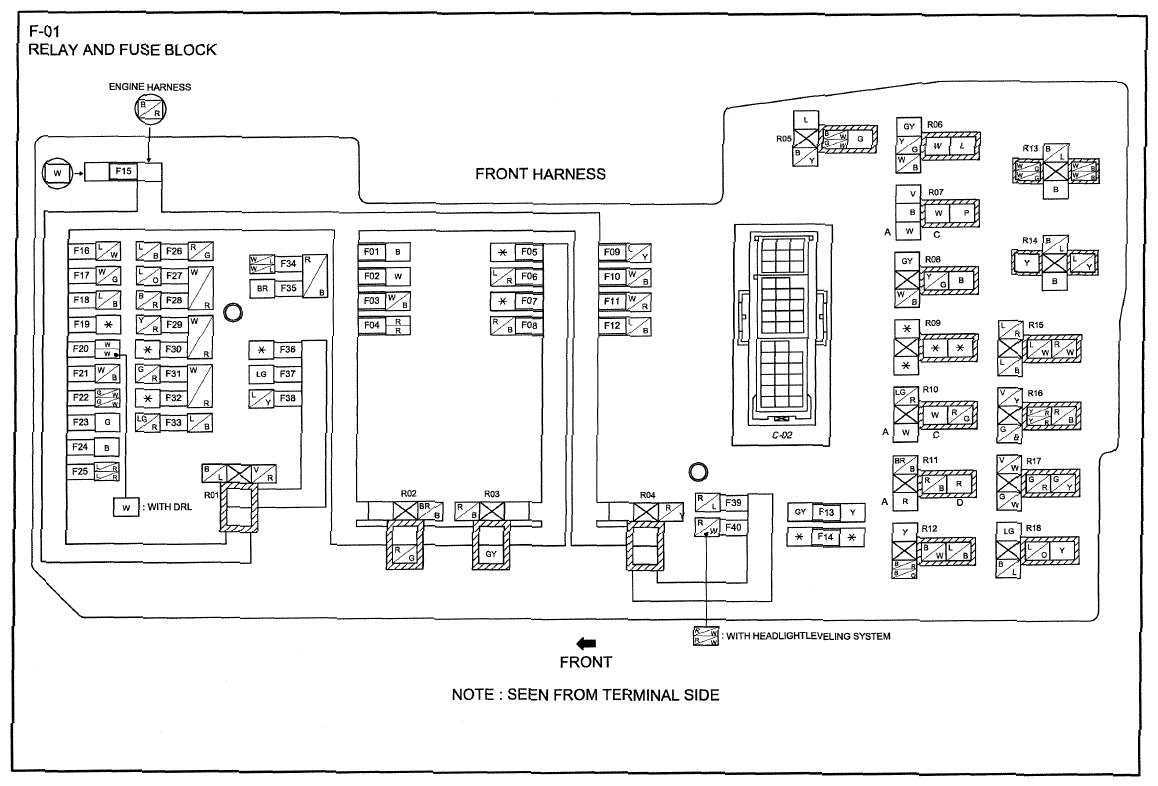

Fig 1: Identifying Fuse Box (00F-1a)

G09124929

Fig 2: Identifying Fuse Box (00F-1b)

G09124930

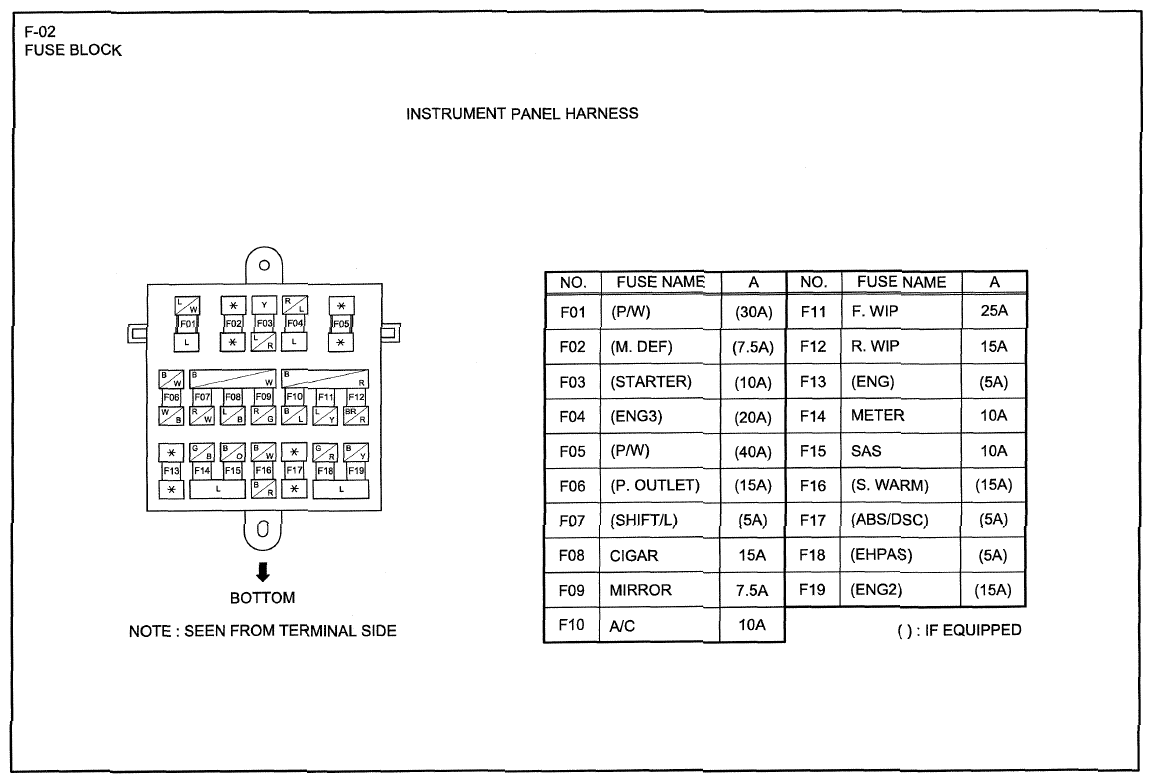

Fig 3: Identifying Fuse Box (00F-2)

G09124931

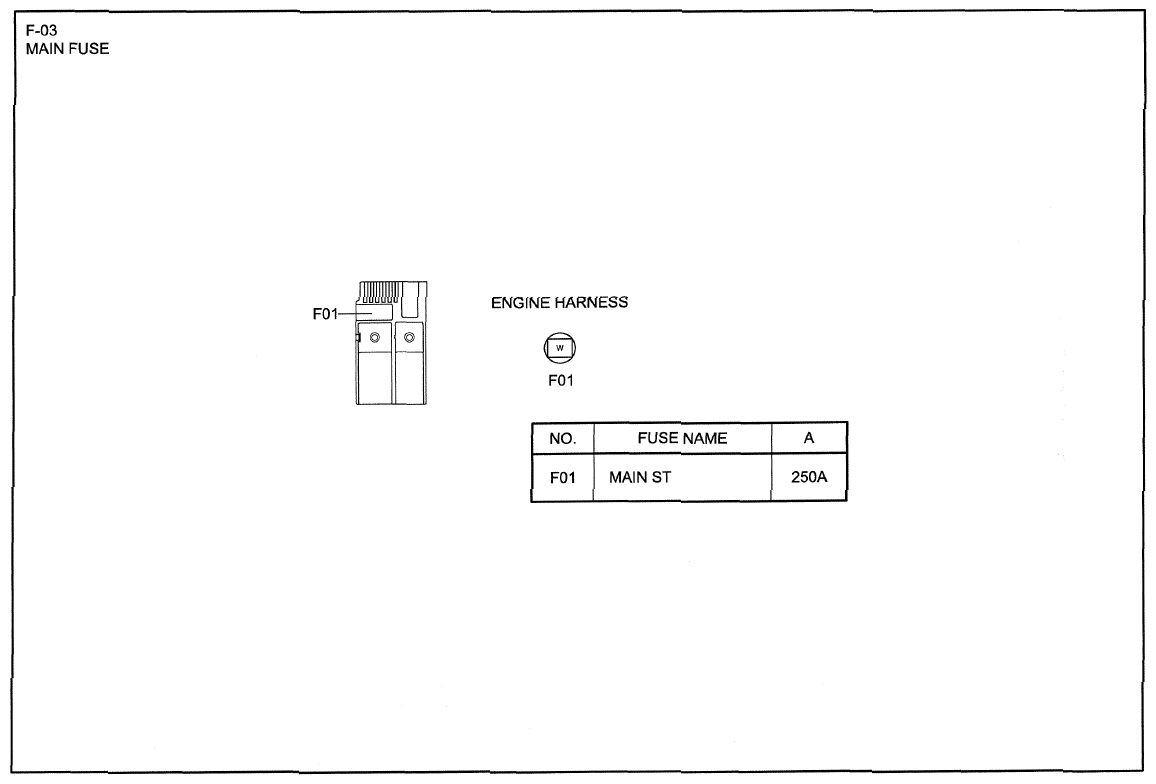

Fig 4: Identifying Fuse Box (00F-3)

G09124932
