Data Link Connector

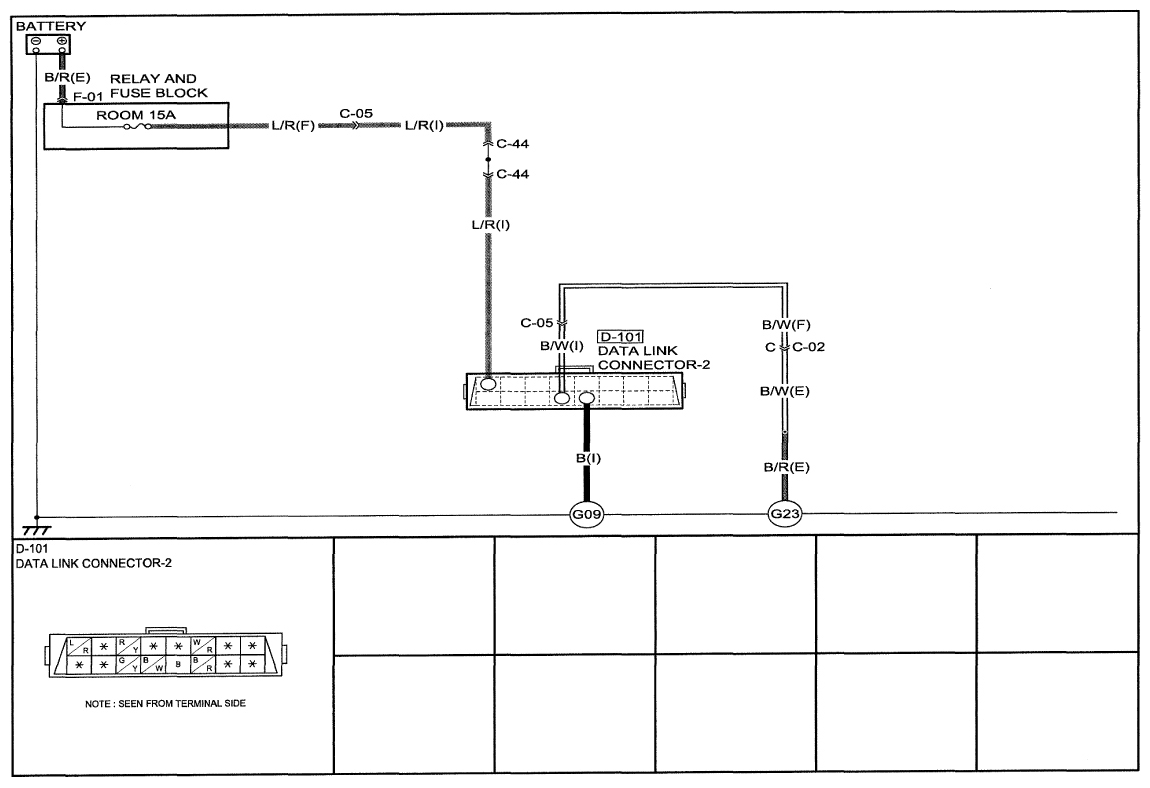

Fig 1: Data Link Connector Wiring Diagram (00D-1a); 1 Of 2
G09124981

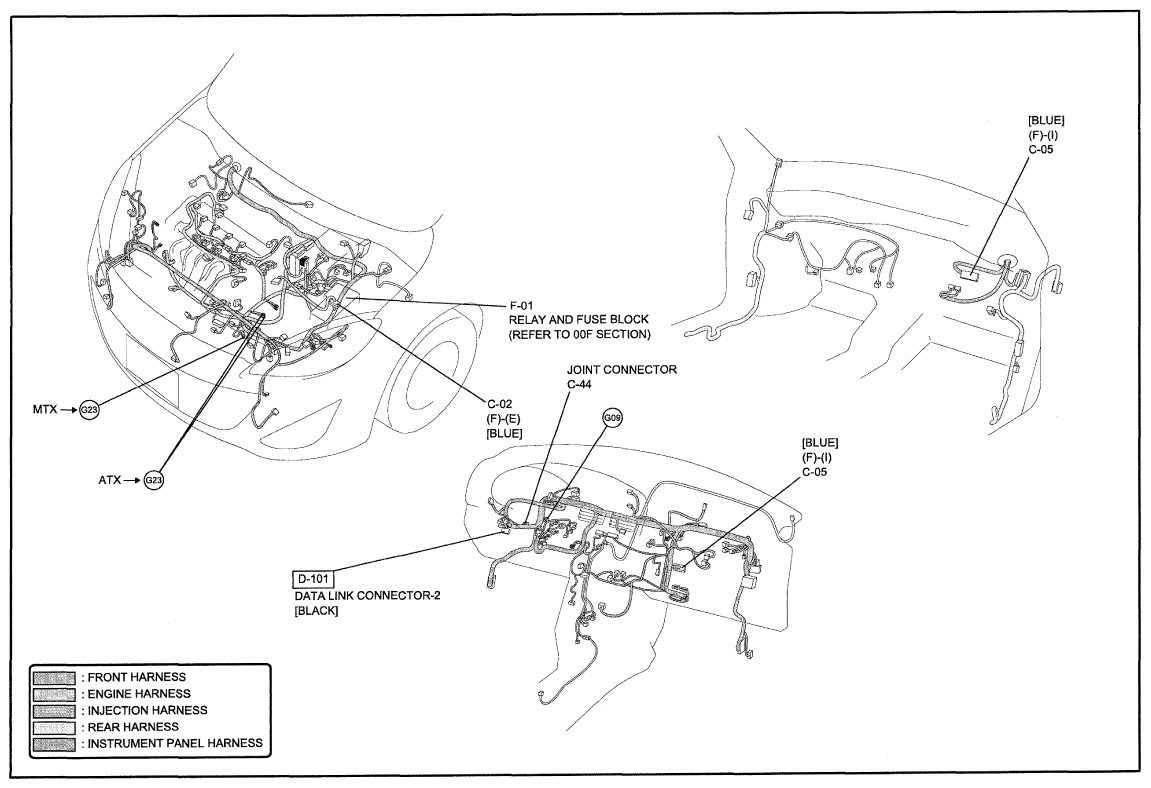

Fig 2: Data Link Connector Wiring Diagram (00D-1a); 2 Of 2
G09124982

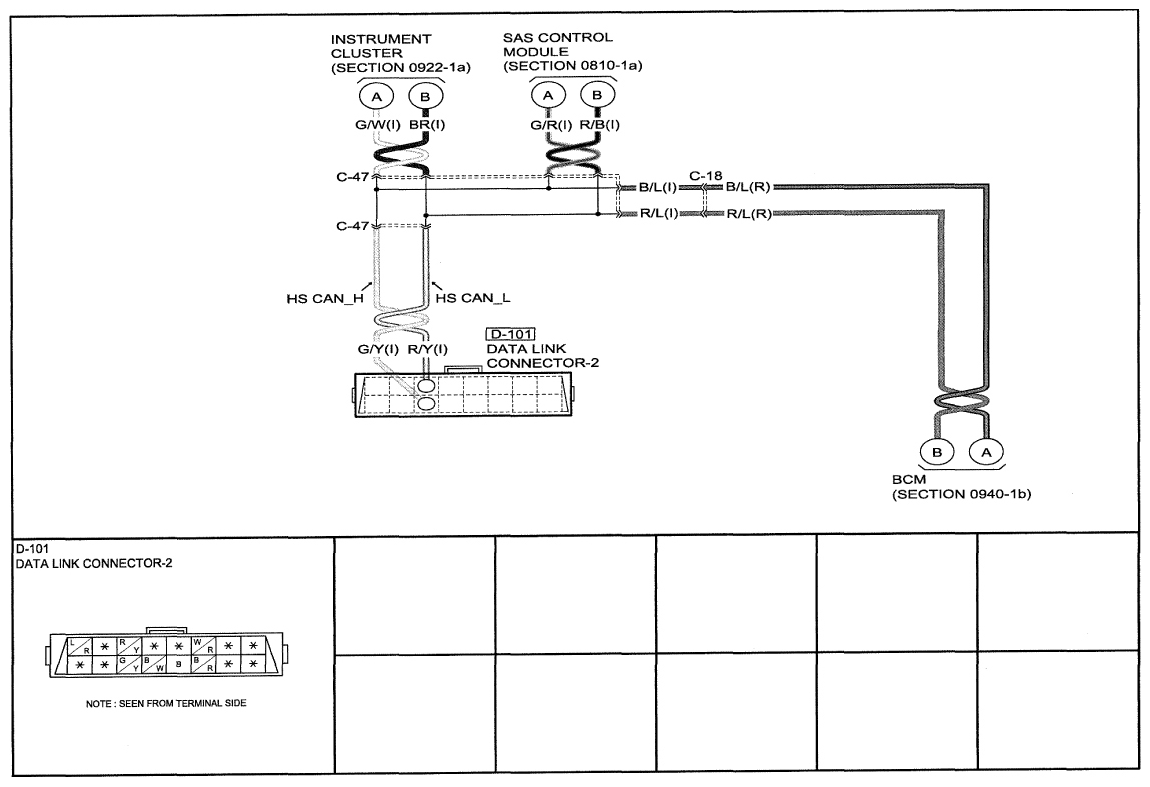

Fig 3: Data Link Connector Wiring Diagram (00D-1b); 1 Of 2
G09124983

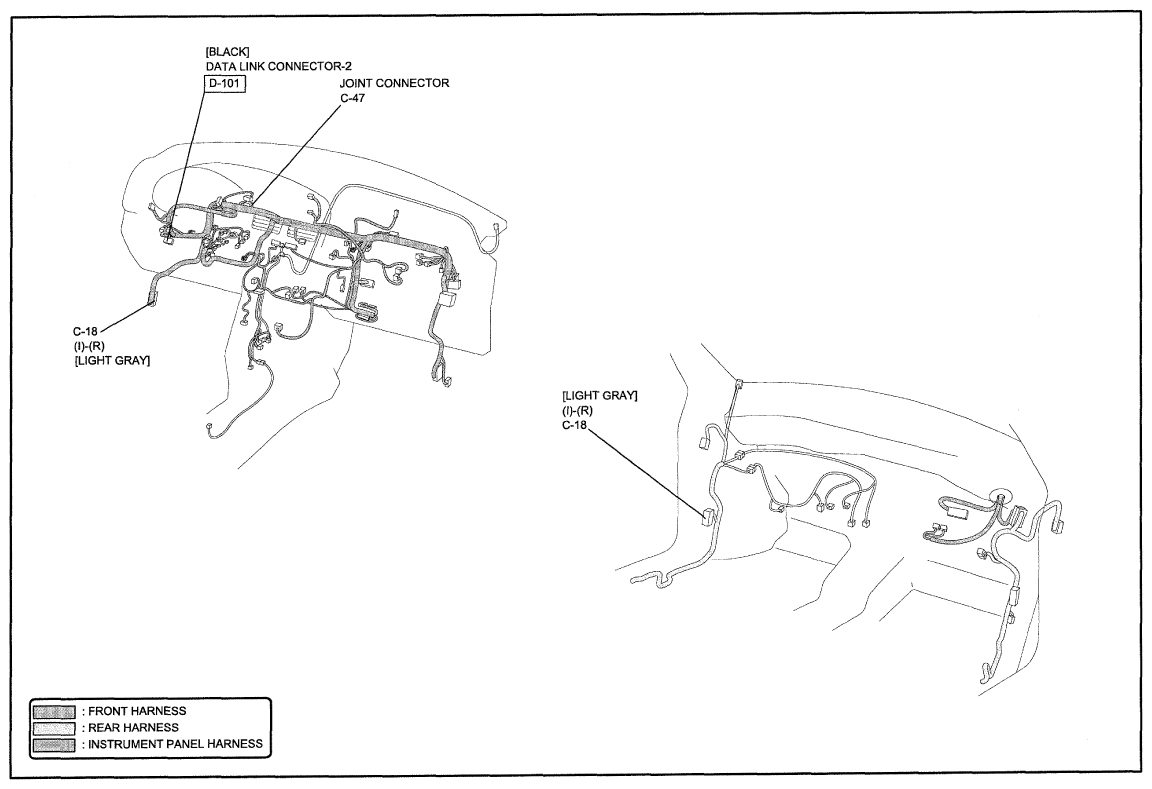

Fig 4: Data Link Connector Wiring Diagram (00D-1b); 2 Of 2
G09124984

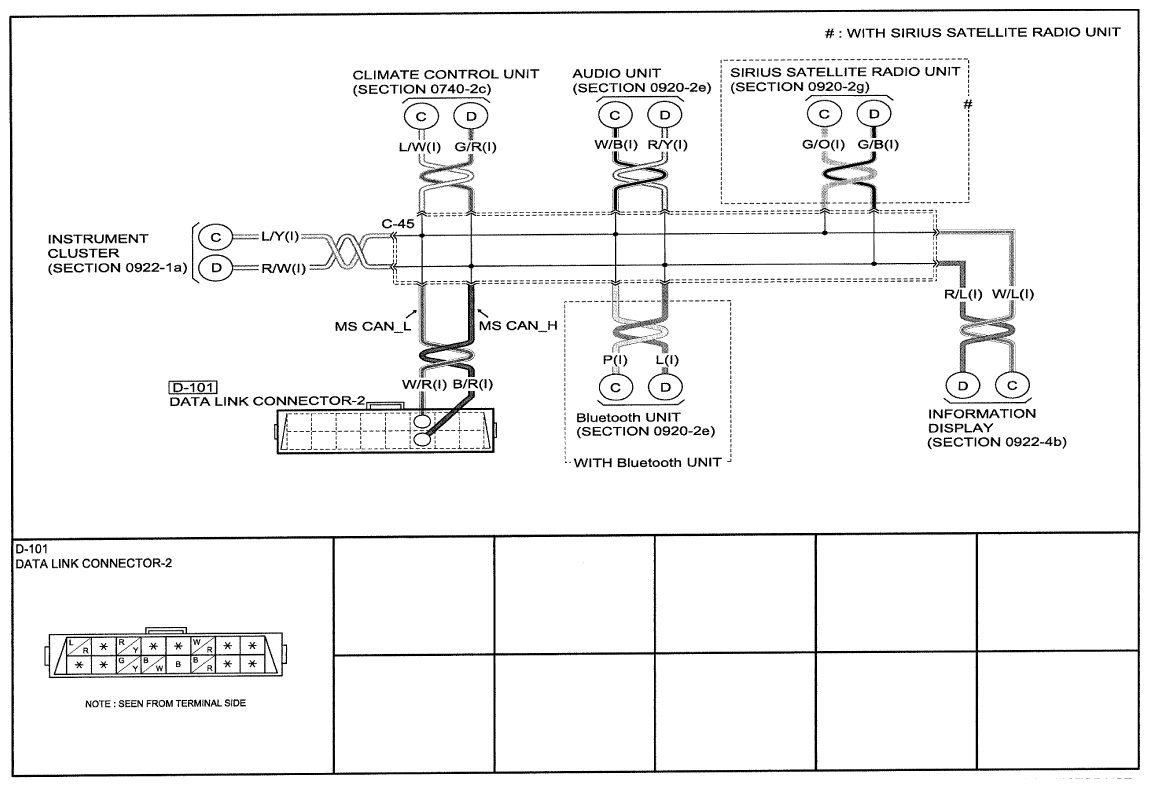

Fig 5: Data Link Connector Wiring Diagram (00D-1c); 1 Of 2
G09124985

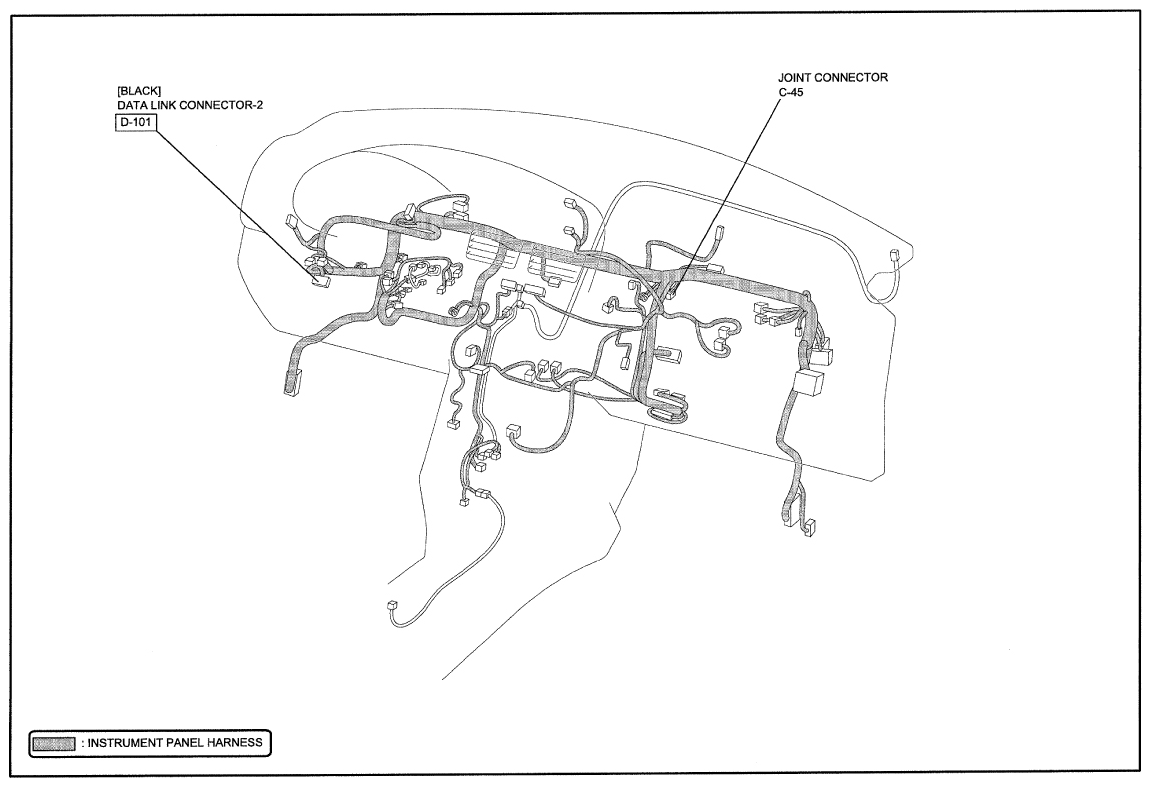

Fig 6: Data Link Connector Wiring Diagram (00D-1c); 2 Of 2
G09124986
