Power Window System
Power Window System

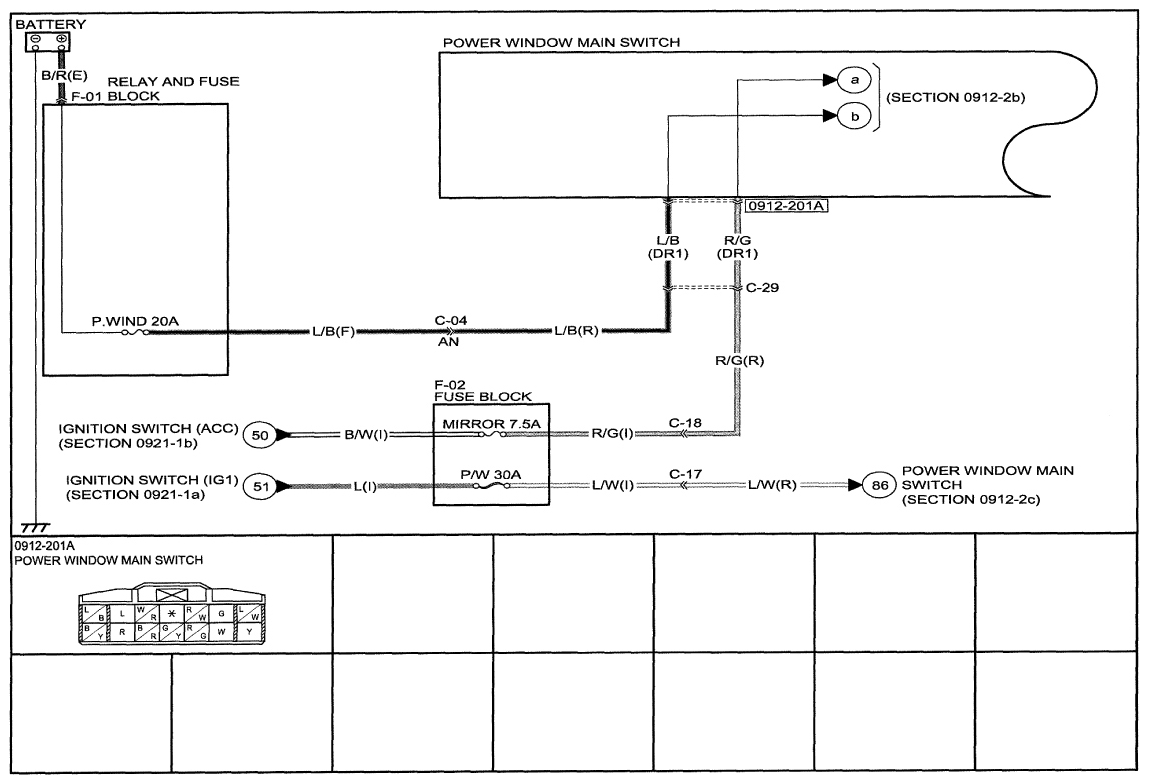

Fig 1: Power Window System Wiring Diagram - 0912-2a (1 Of 2)

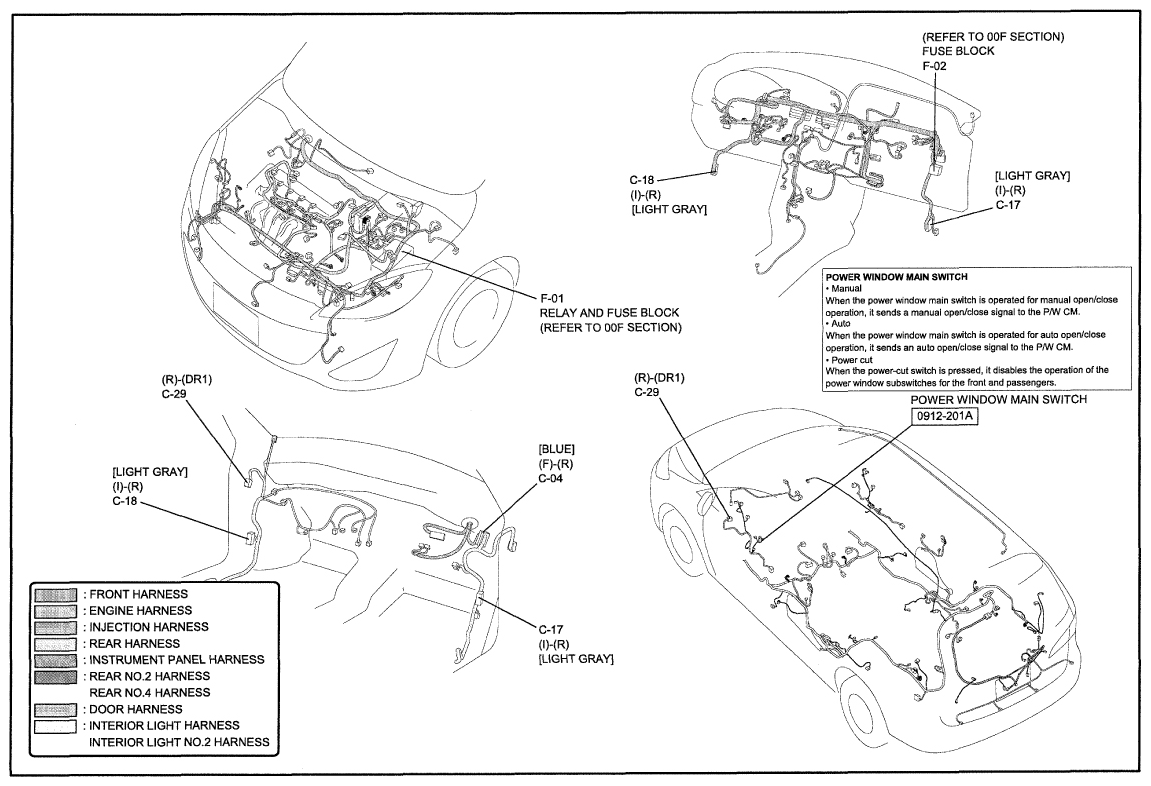

Fig 2: Power Window System Wiring Diagram - 0912-2a (2 Of 2)

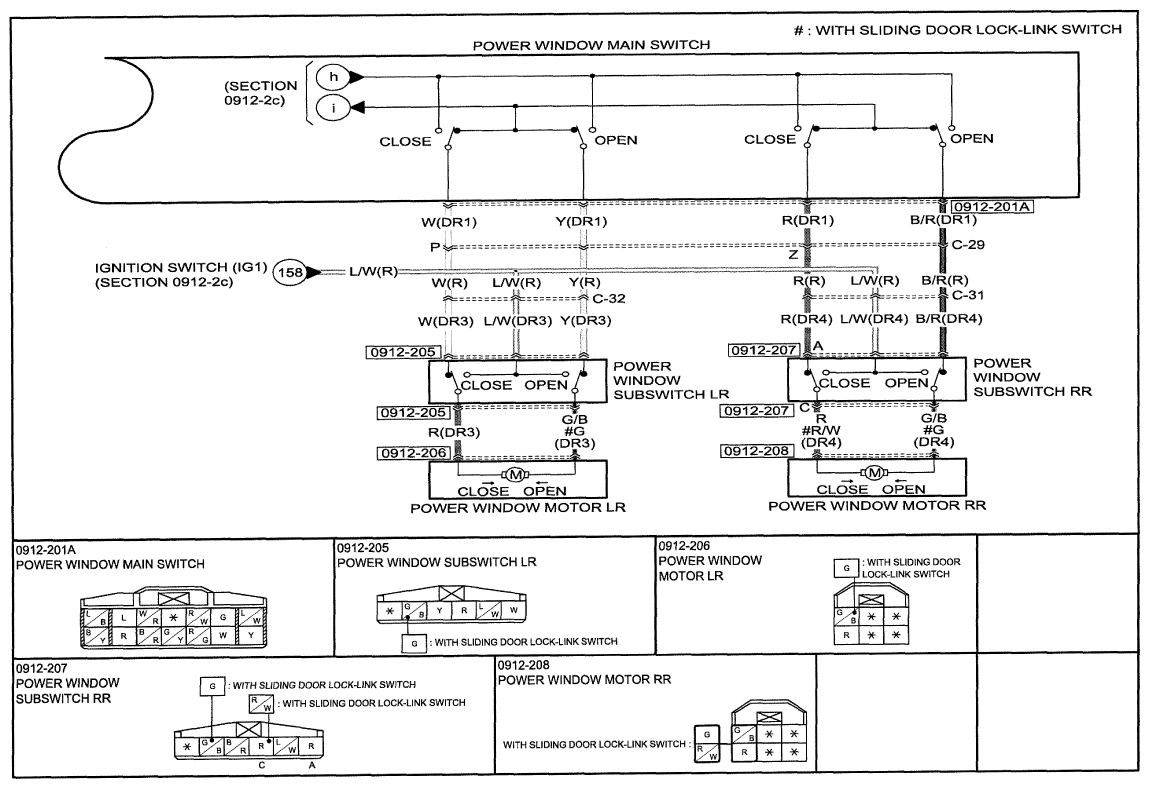

Fig 3: Power Window System Wiring Diagram - 0912-2b (1 Of 2)

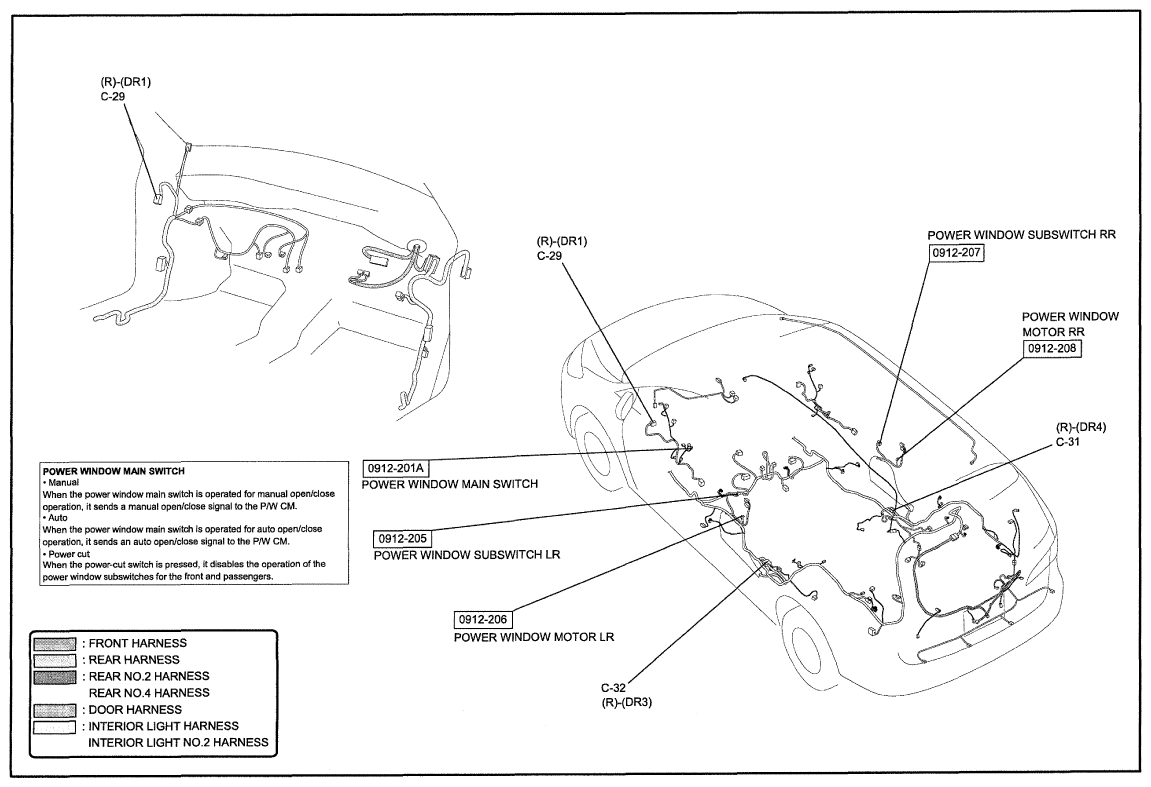

Fig 4: Power Window System Wiring Diagram - 0912-2b (2 Of 2)

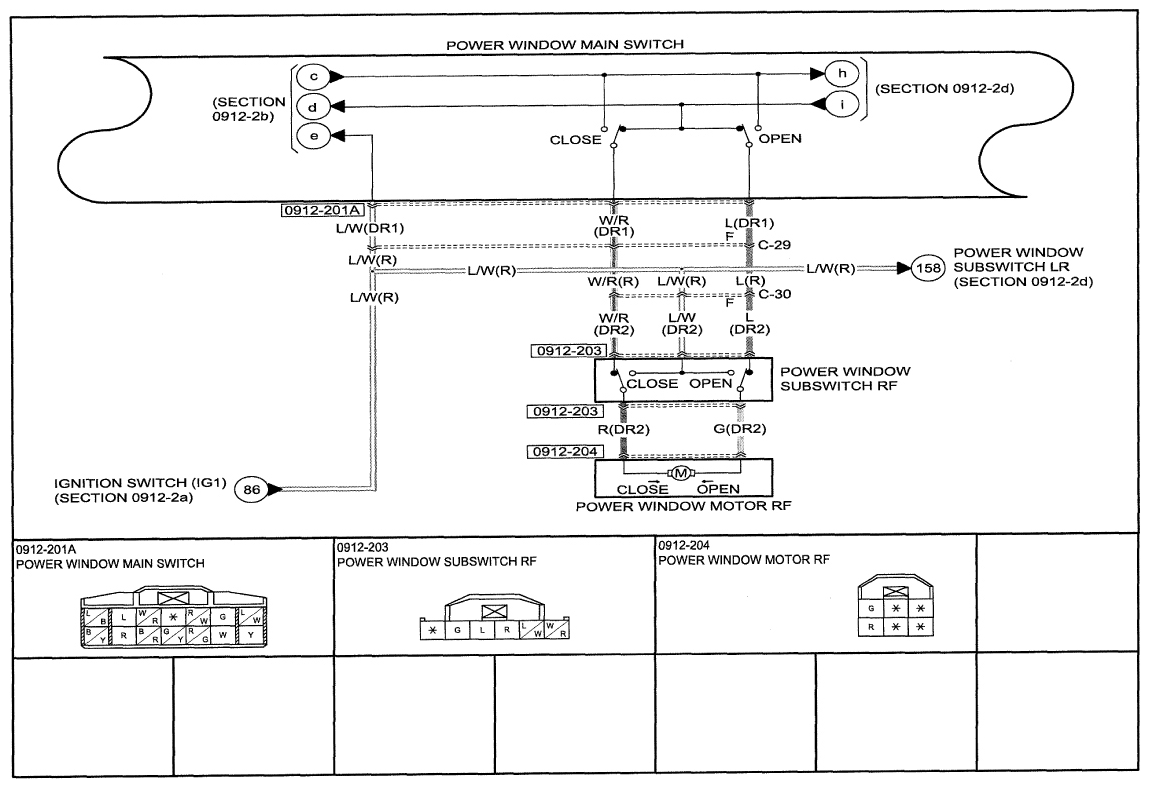

Fig 5: Power Window System Wiring Diagram - 0912-2c (1 Of 2)

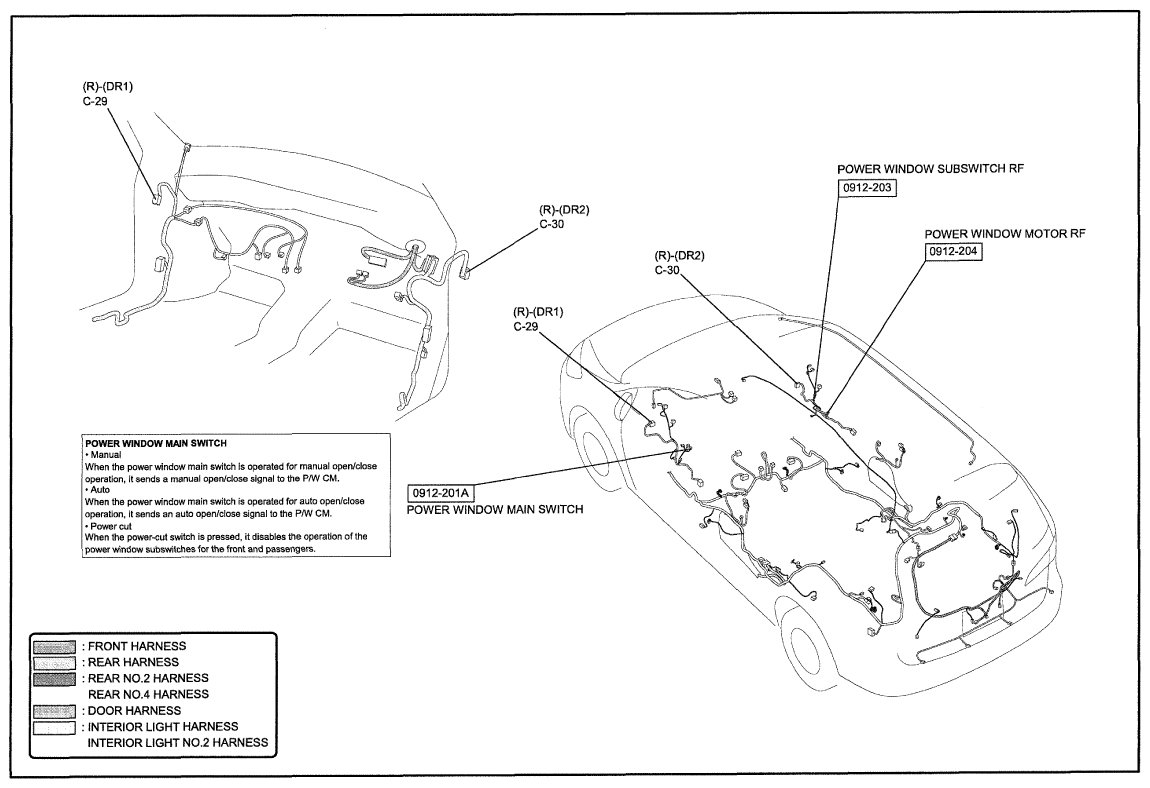

Fig 6: Power Window System Wiring Diagram - 0912-2c (2 Of 2)

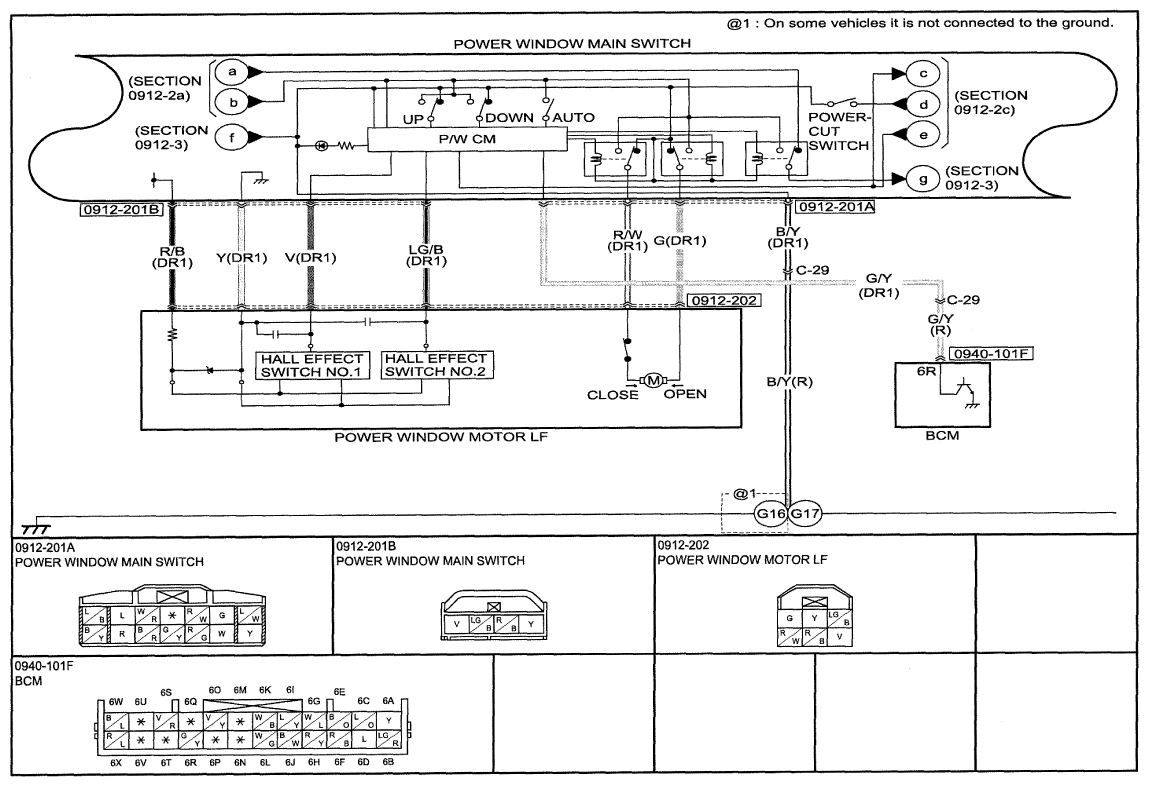

Fig 7: Power Window System Wiring Diagram - 0912-2d (1 Of 2)

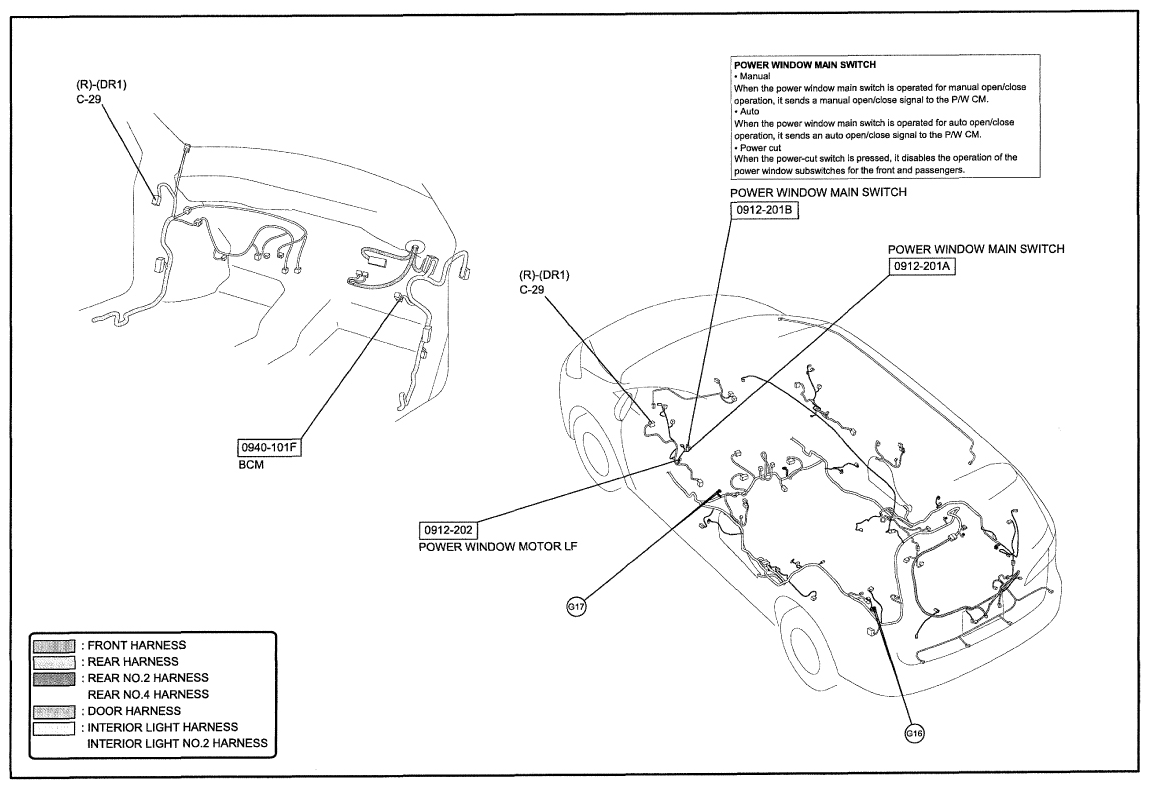

Fig 8: Power Window System Wiring Diagram - 0912-2d (2 Of 2)
