Fuel System

Fig 1: Fuel System Wiring Diagram - 0114-1 (1 Of 2)

G09124989

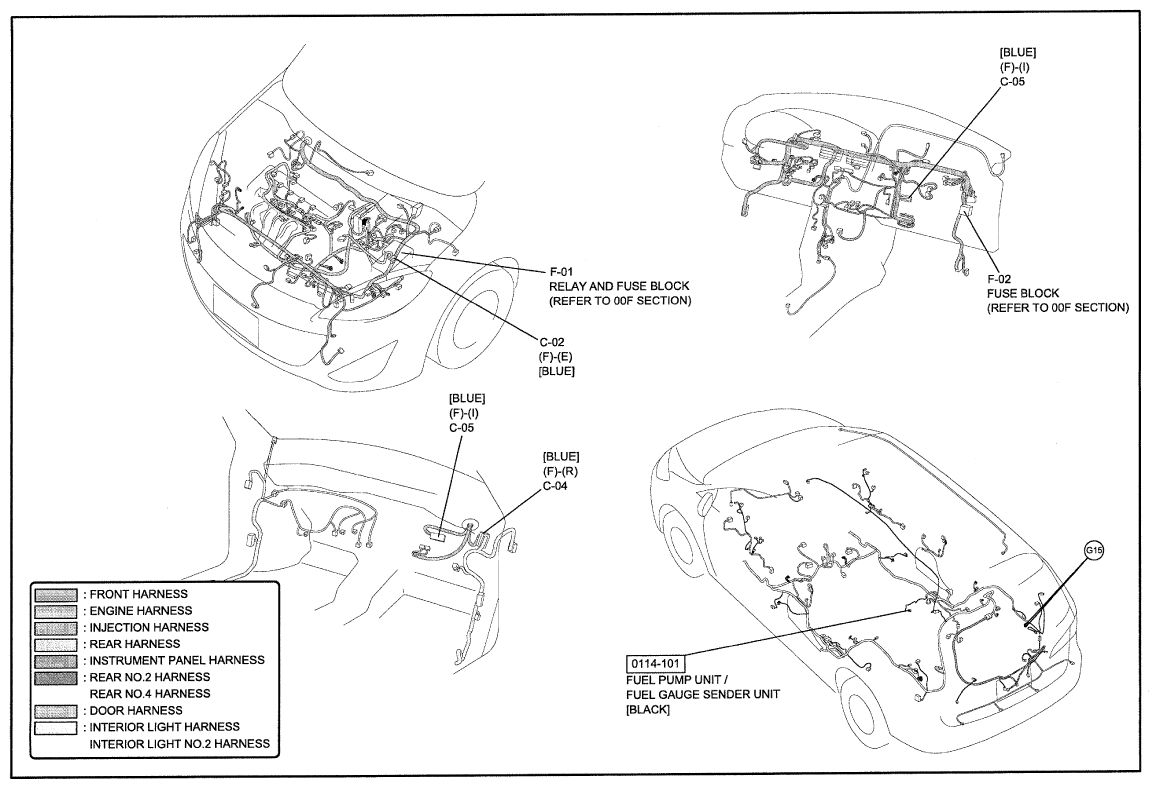

Fig 2: Fuel System Wiring Diagram - 0114-1 (2 Of 2)

G09124990
