Charging System

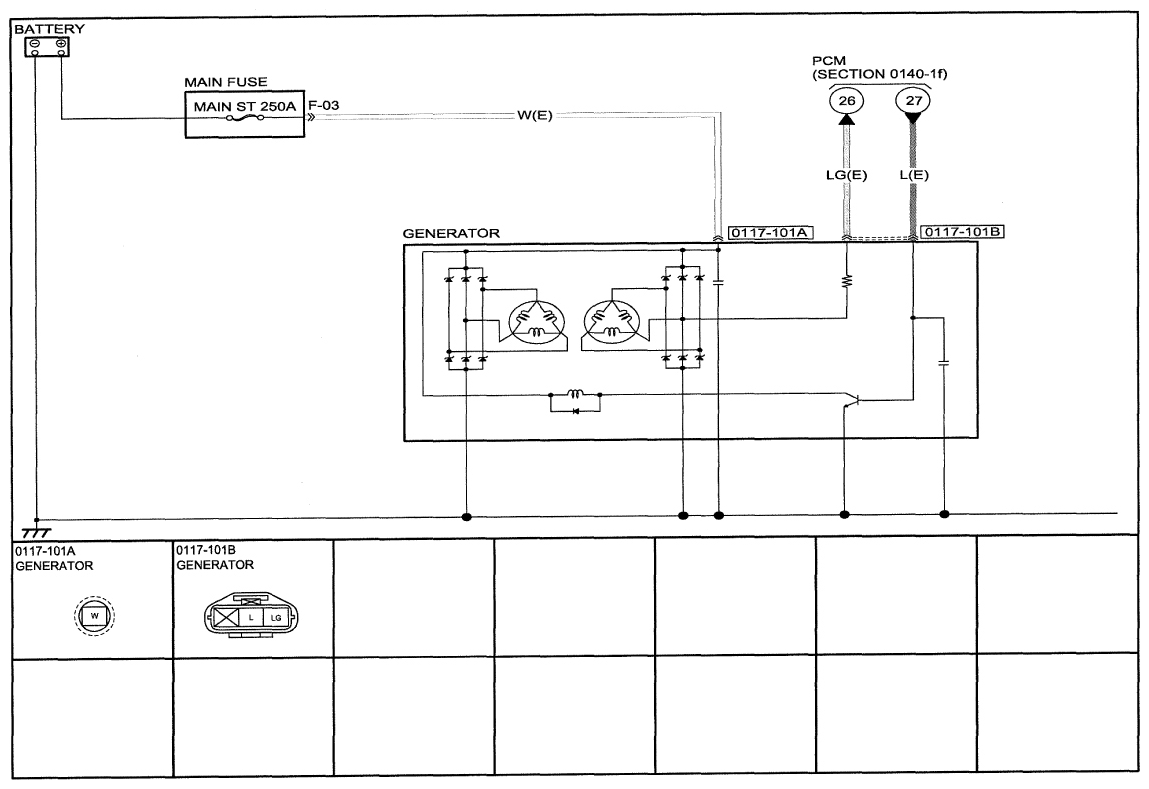

Fig 1: Charging System Wiring Diagram - 0117-1 (1 Of 2)

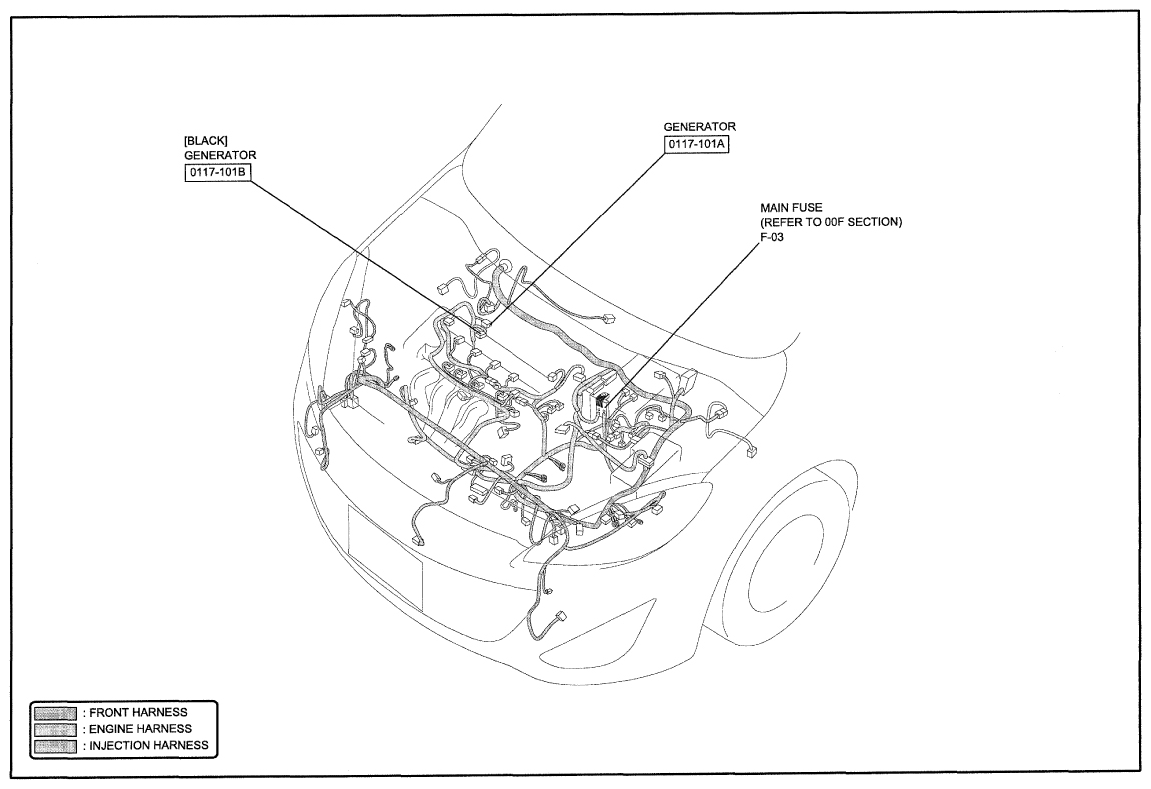

Fig 2: Charging System Wiring Diagram - 0117-1 (2 Of 2)
