Liftgate Latch And Lock Actuator Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the following parts:
    1. Liftgate upper trim (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION .)
    2. Liftgate side trim (See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION .)
    3. Liftgate recess (See LIFTGATE RECESS REMOVAL/INSTALLATION .)
    4. Liftgate lower trim (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION .)
  3. Remove the bolts.

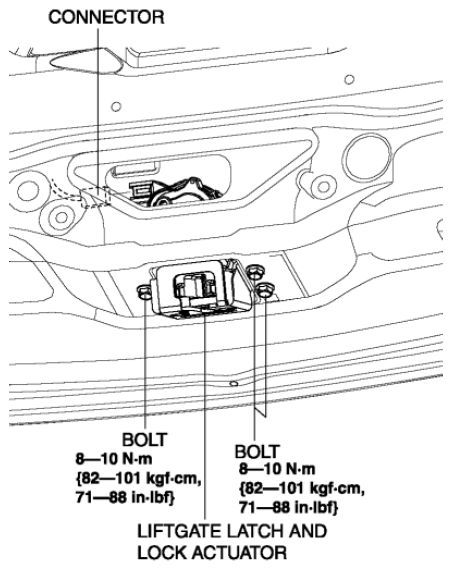

    Fig 1: Liftgate Latch And Lock Actuator, Connector And Bolts With Torque Specifications
    G08153096
  4. Disconnect the connector.
  5. Remove the liftgate latch and lock actuator.
  6. Install in the reverse order of removal.
