Sliding Door Inner Handle

  1. Disconnect the negative battery cable.
  2. Remove the side door garnish. (See SIDE DOOR GARNISH REMOVAL/INSTALLATION .)
  3. Remove the rear side trim. (See REAR SIDE TRIM REMOVAL/INSTALLATION .)
  4. Remove the sliding door trim. (See SLIDING DOOR TRIM REMOVAL/INSTALLATION .)
  5. Disconnect the rod link from the remote controller.

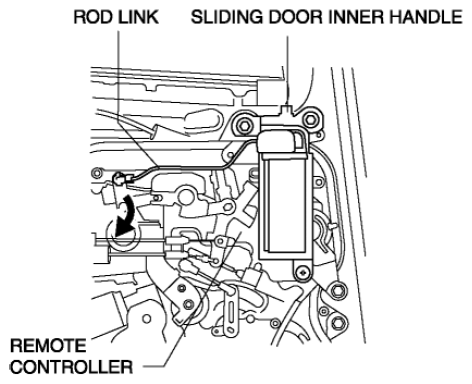

    Fig 1: Rod Link And Remote Controller
    G08153037
  6. Remove the bolts.

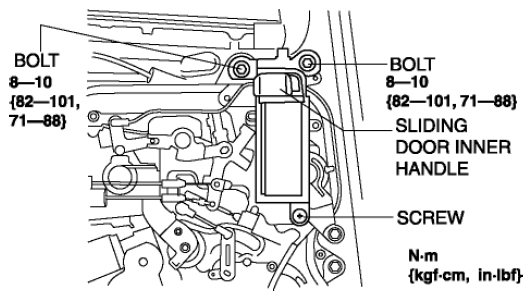

    Fig 2: Sliding Door Inner Handle Screw And Bolts With Torque Specifications
    G08153038
  7. Remove the screw.
  8. Remove the sliding door inner handle.
  9. Install in the reverse order of removal.
