Hood Release Cable Removal/Installation

  1. Open the hood.
  2. Remove the hood release lever. (See HOOD LATCH AND RELEASE LEVER REMOVAL/INSTALLATION .)
  3. Disconnect the hood release cable from the hood latch.

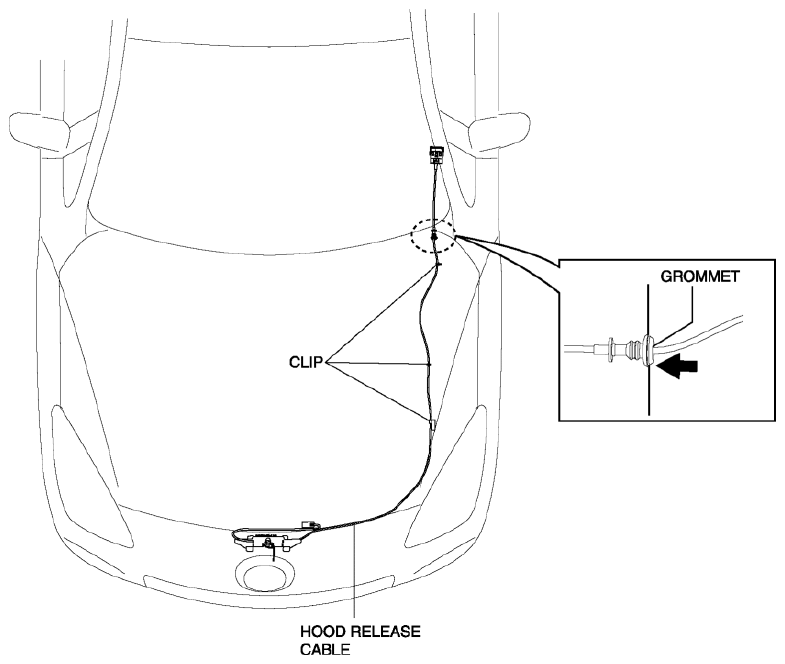

    Fig 1: Removing Hood Release Cable From Clips
    G08153046
  4. Remove the hood release cable from the clips.
  5. Remove the grommet.
  6. Remove the hood release cable from the cabin side.
  7. Install in the reverse order of removal.
