Sliding Door Lock-Link Switch Inspection

  1. Disconnect the negative battery cable.
  2. Remove the following parts:
    1. Side door garnish (See SIDE DOOR GARNISH REMOVAL/INSTALLATION .)
    2. Rear side trim (See REAR SIDE TRIM REMOVAL/INSTALLATION .)
    3. Sliding door trim (See SLIDING DOOR TRIM REMOVAL/INSTALLATION .)
    4. Sliding door inner handle (See INNER HANDLE REMOVAL/INSTALLATION .)
    5. Remote controller (See REMOTE CONTROLLER REMOVAL/INSTALLATION .)
    6. Sliding door lock actuator (See SLIDING DOOR LOCK ACTUATOR REMOVAL/INSTALLATION .)
  3. Operate the door lock-link and verify that the continuity at the lock/unlock position is as indicated in the table.

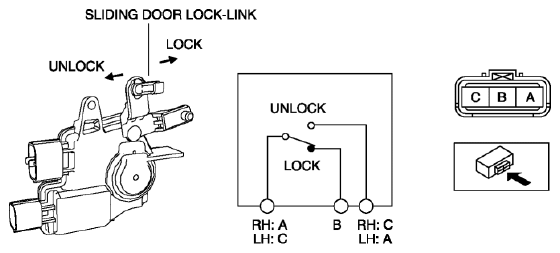

    Fig 1: Inspecting Sliding Door Lock-Link Switch Lock/Unlock Position
    G08153079
    • If not as indicated in the table, replace the sliding door lock actuator.
      Fig 2: Sliding Door Lock-Link Switch Continuity Chart
      G08153080
