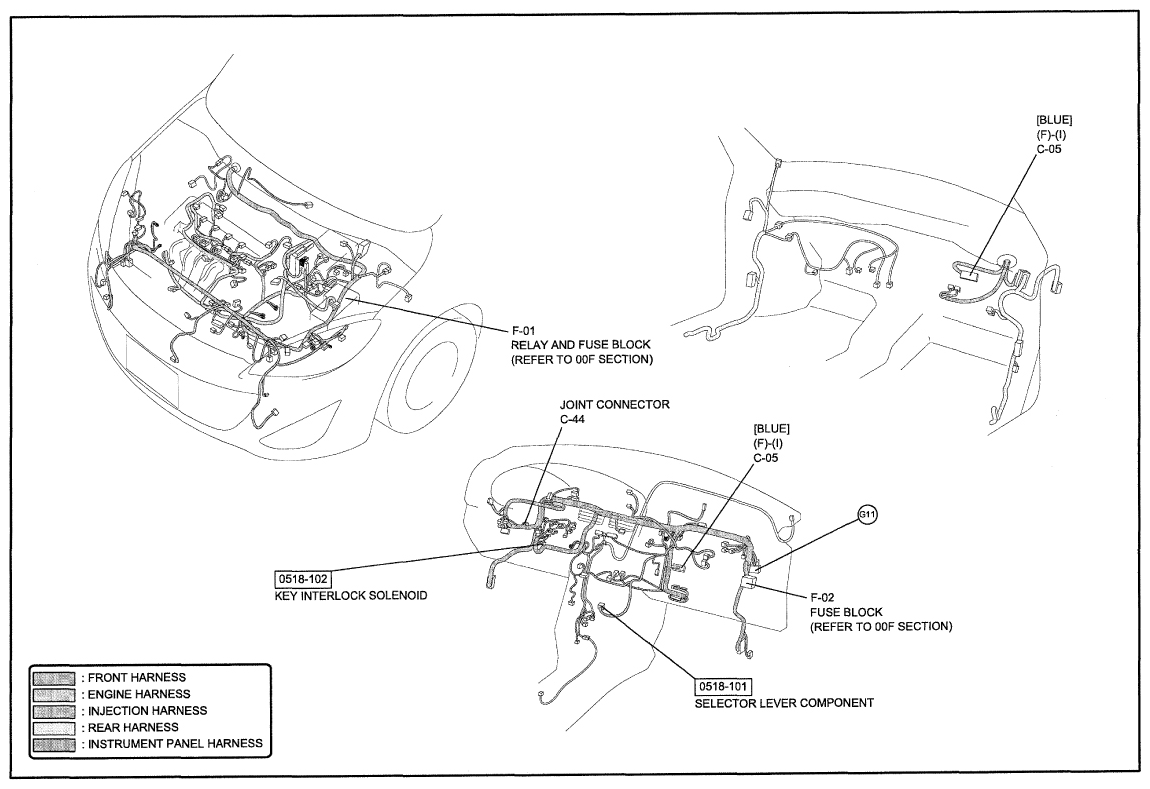

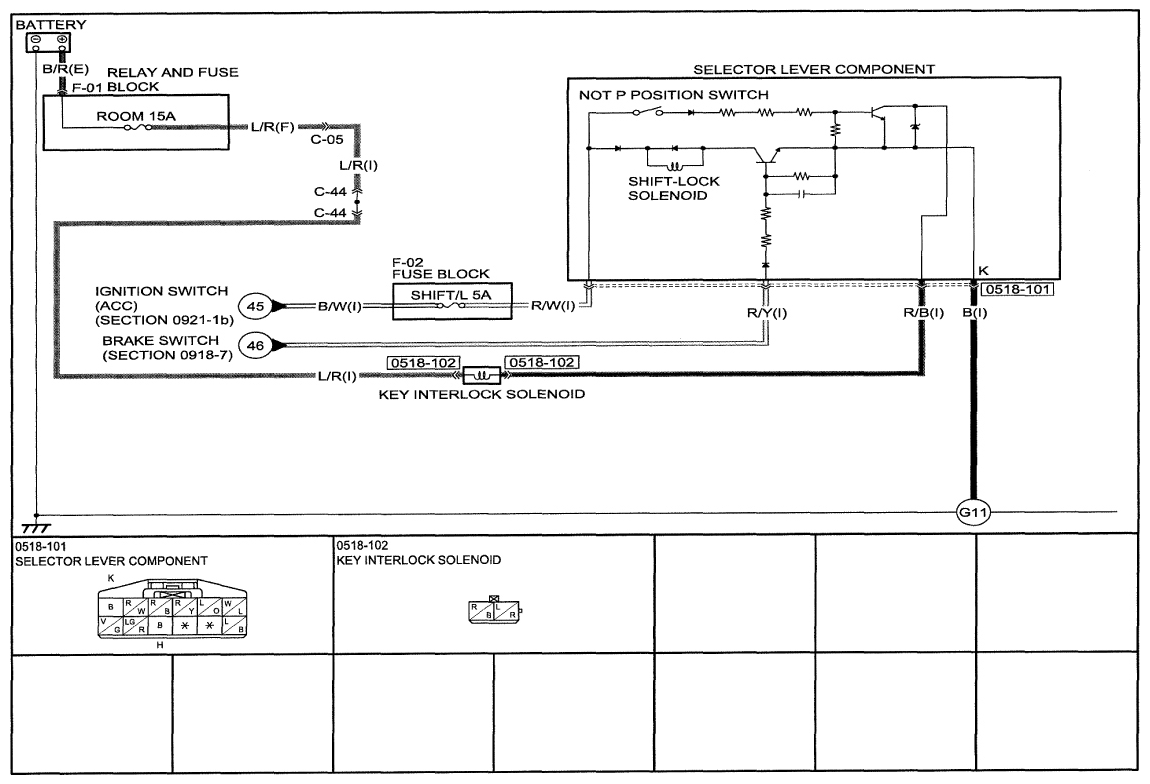

Home >> Mazda >> 2013 >> 5 Touring >> Repair and Diagnosis (Single Page) >> Quick Lookups >> Wiring Diagrams >> OEM Wiring System >> Transmission/Transaxle >> Automatic Transaxle Shift Mechanism >> Key Interlock System/Shift-Lock System
