Variable Tumble Shutter Valve Position Sensor Connector End View

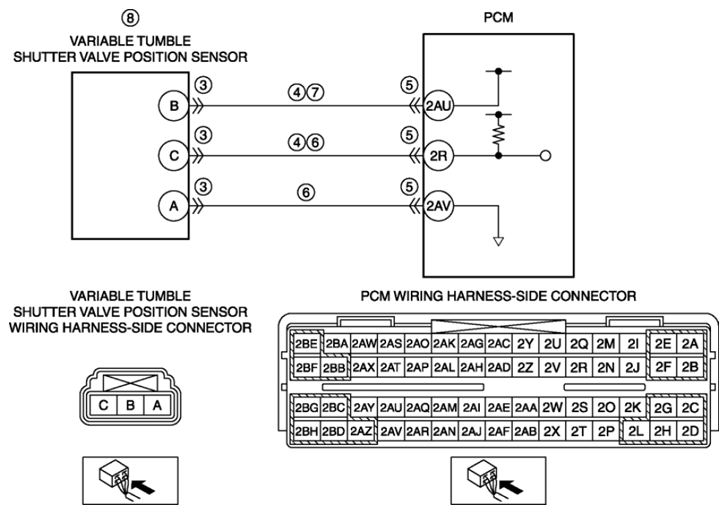

Fig 1: Variable Tumble Shutter Valve Position Sensor Connector End View
G08150075Courtesy of MAZDA MOTORS CORP.
