Front Fog Light Switch Connector End View

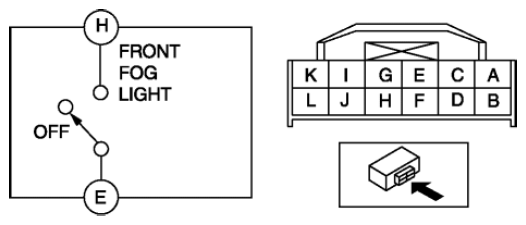

Fig 1: Front Fog Light Switch Connector End View

G08153354

Courtesy of MAZDA MOTORS CORP.
