Driver-Side Air Bag Module Connector End View

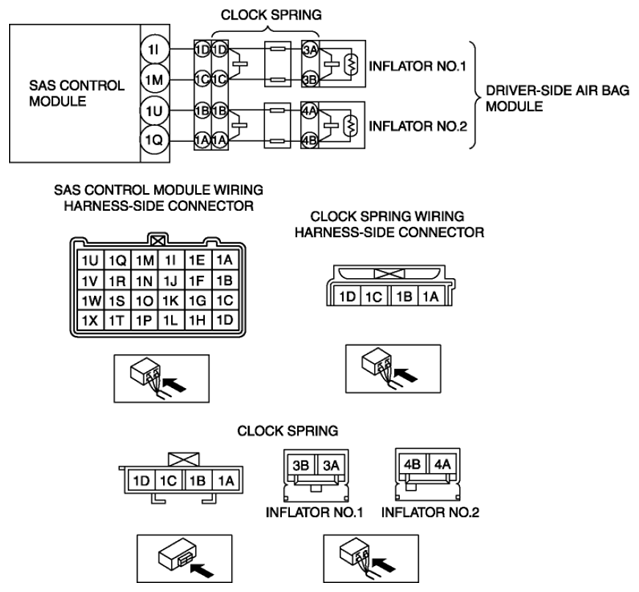

Fig 1: Driver-Side Air Bag Module Connector End View

G08152395

Courtesy of MAZDA MOTORS CORP.
