Rain Sensor Removal/Installation: Notes

Disconnect the negative battery cable.
Open the rain sensor cover in the direction of the arrow and remove it while releasing rain sensor cover tab A.

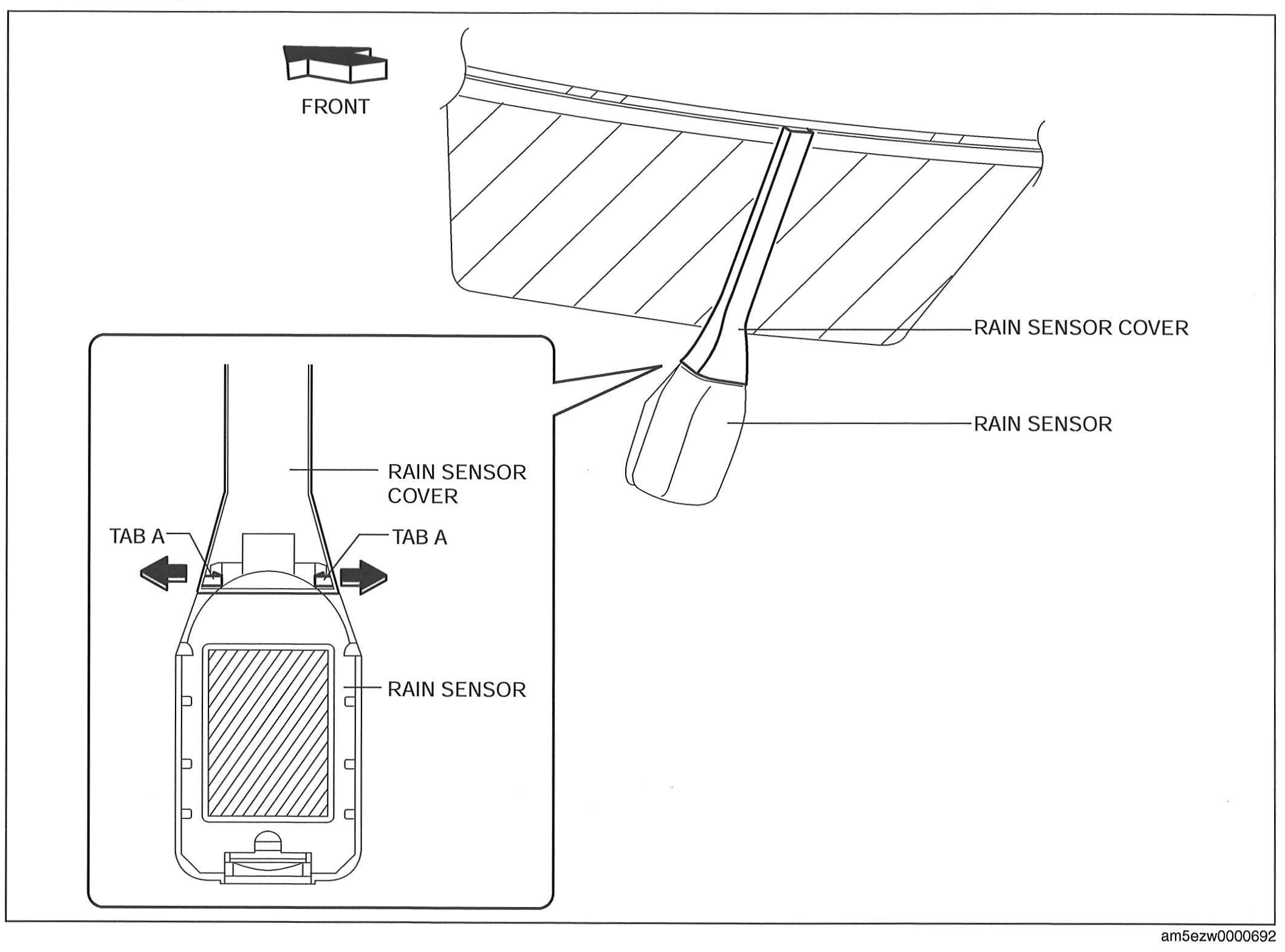

Fig 1: Identifying Rain Sensor Tabs, Cover And Removal Direction
Courtesy of MAZDA MOTORS CORP.
Disconnect the rain sensor connector.

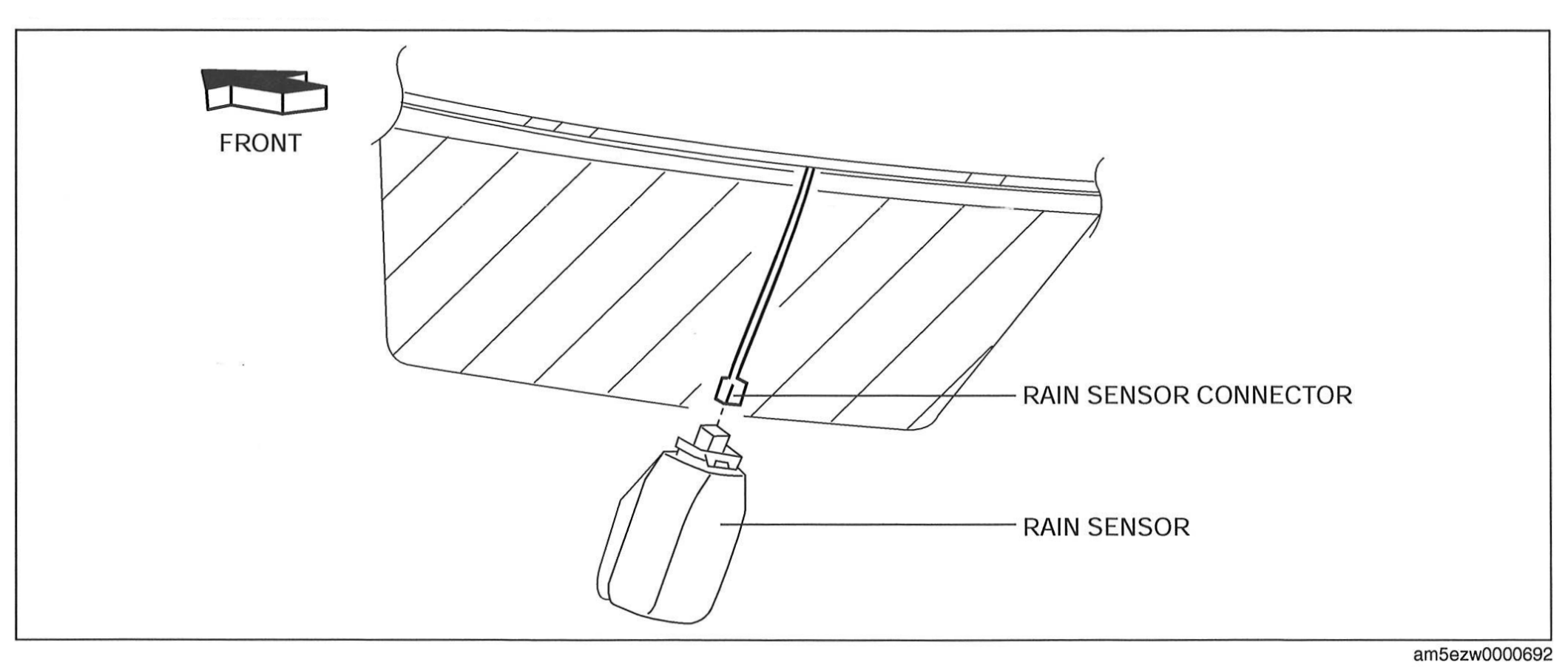

Fig 2: Rain Sensor Connector Removal
Courtesy of MAZDA MOTORS CORP.
Slide the rain sensor tab B in the direction of the arrow shown in the figure and detach tab B.

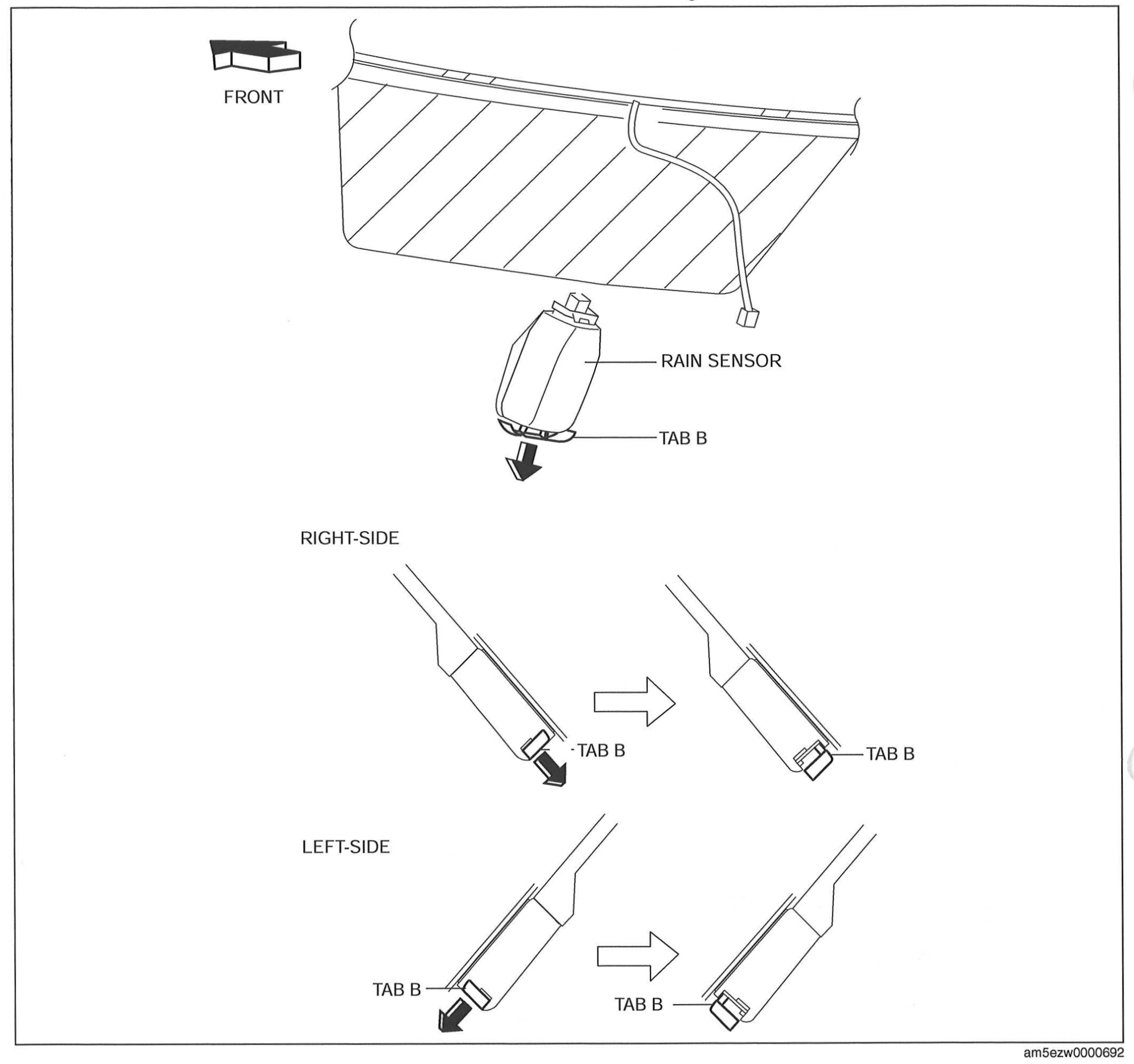

Fig 3: Identifying Rain Sensor And Tab B
Courtesy of MAZDA MOTORS CORP.
Remove the rain sensor in the direction of the arrow shown in the figure.

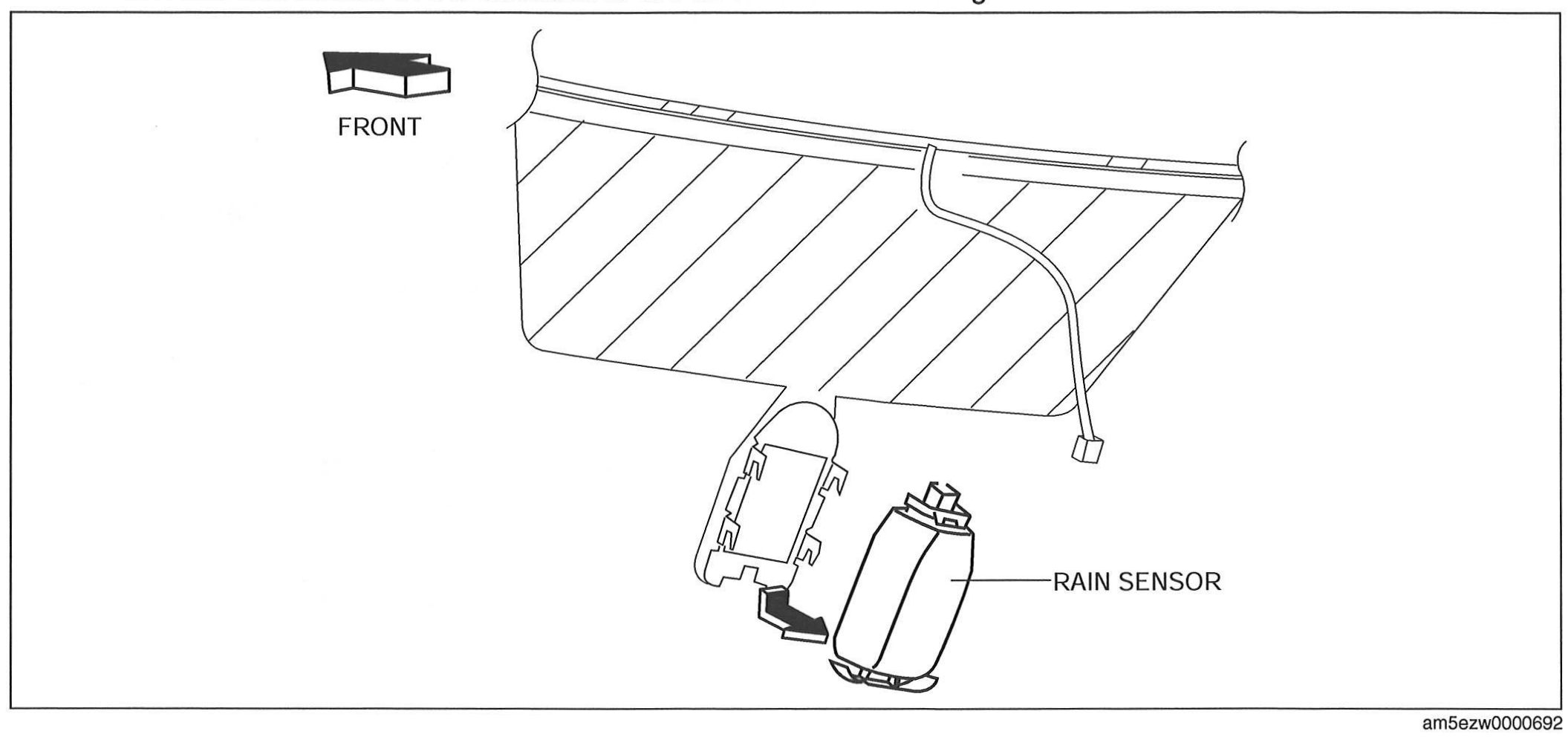

Fig 4: Rain Sensor Removal Procedure
Courtesy of MAZDA MOTORS CORP.
Peel off the rain sensor protective sheet from the rain sensor.
Install in the reverse order of removal. (See Rain Sensor Installation Note .)

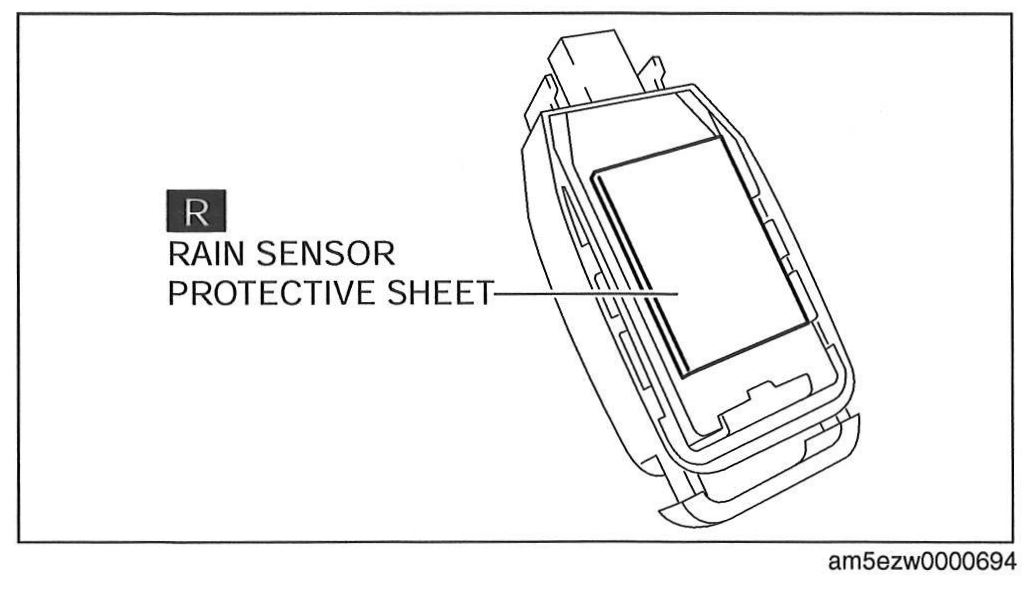

Fig 5: Rain Sensor Protective Sheet
Courtesy of MAZDA MOTORS CORP.
