Ground Point

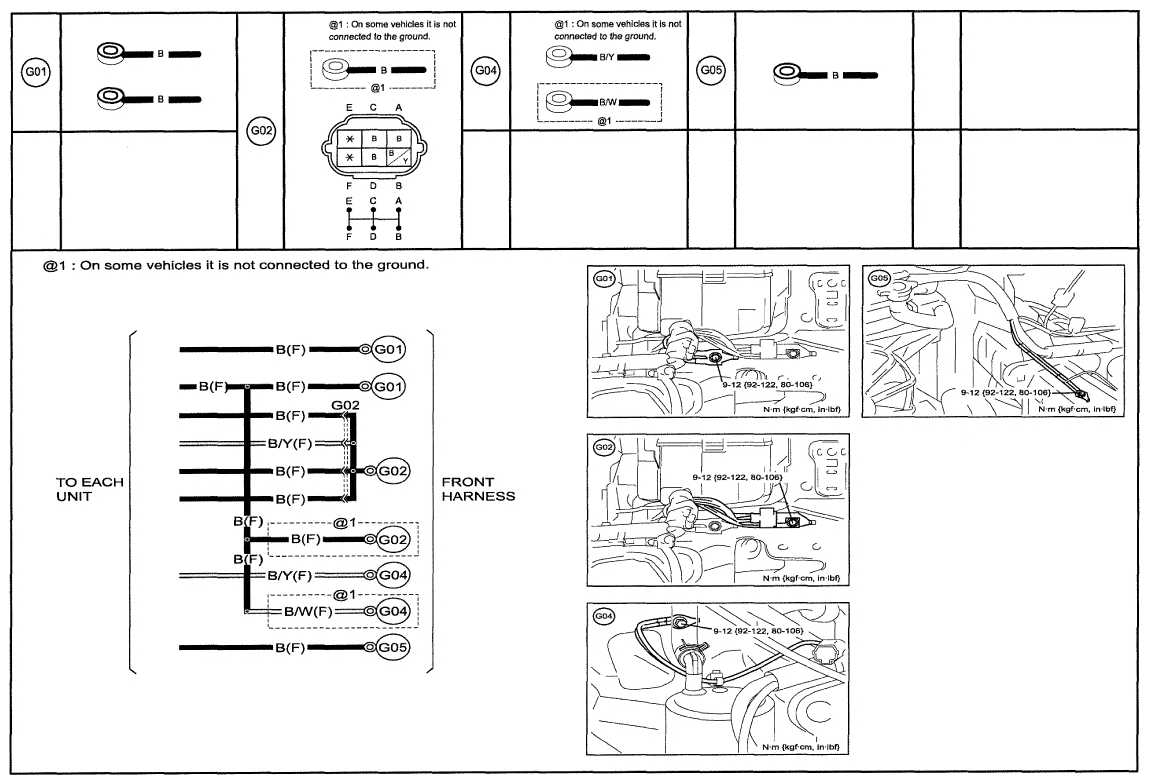

Fig 1: Ground Point Locations (00G-1a)

G09124967

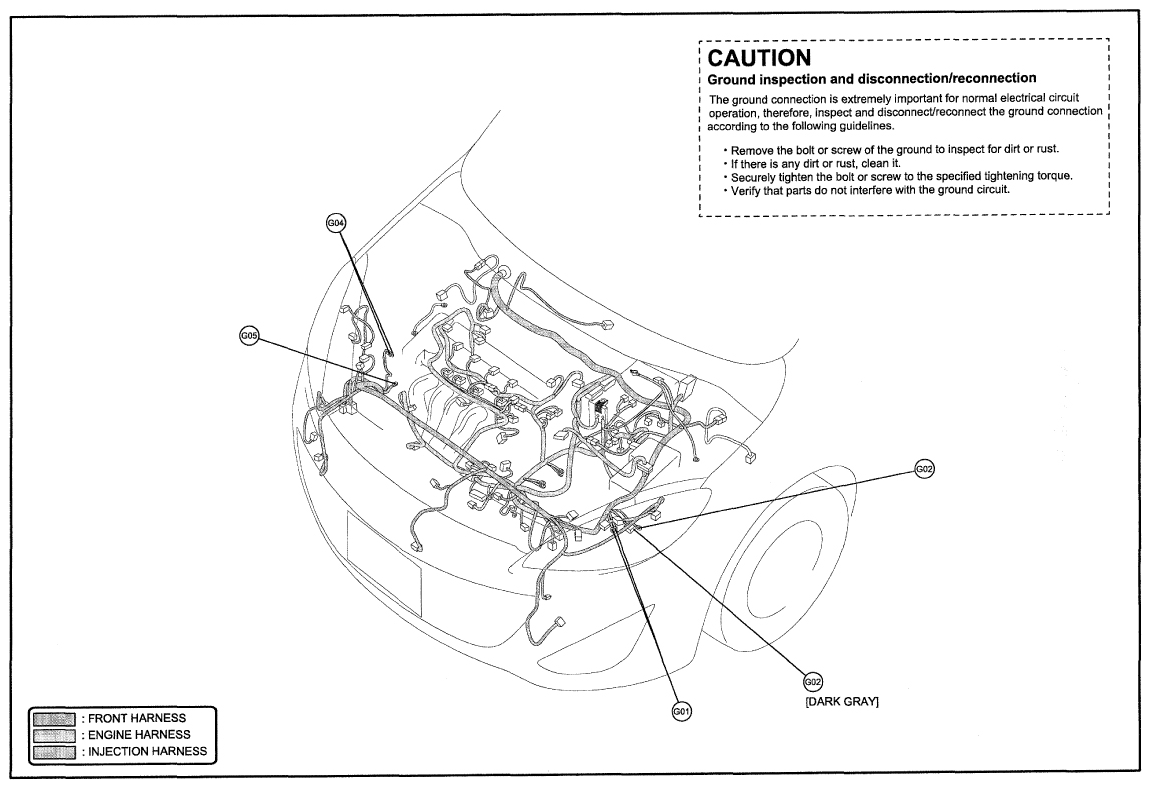

Fig 2: Ground Point Harness Locations (00G-1a)

G09124968

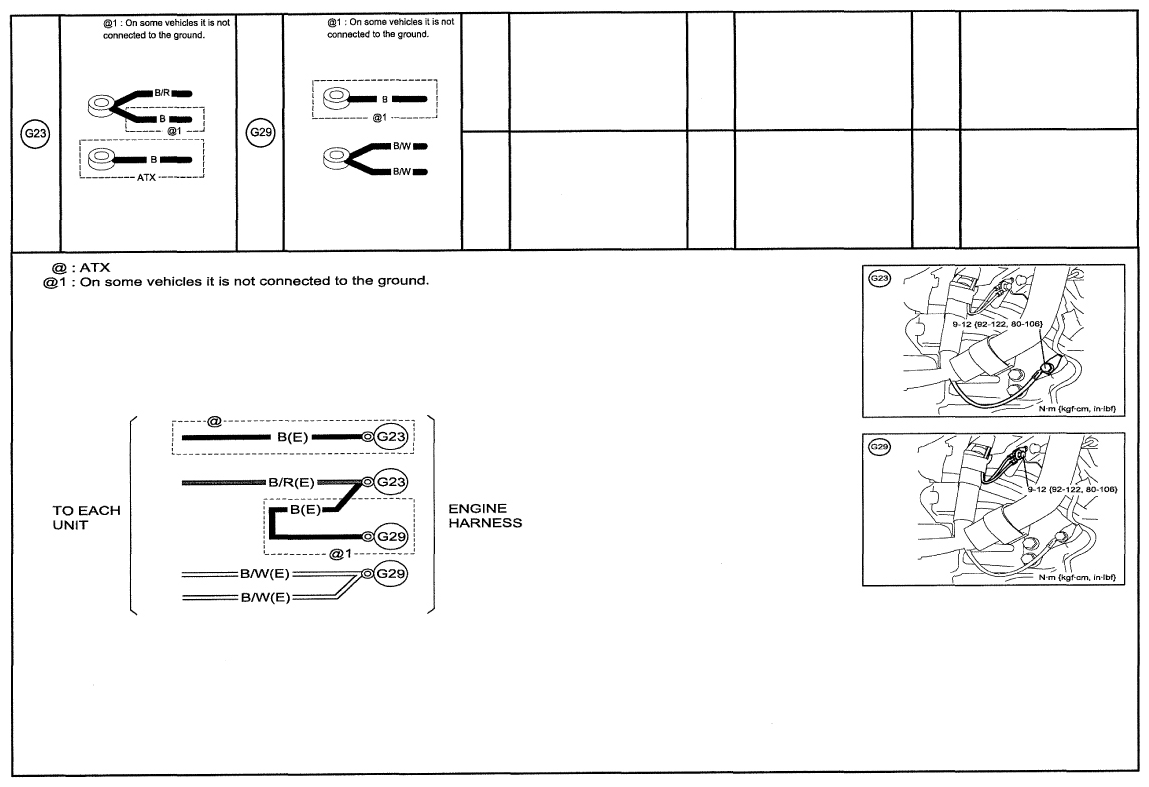

Fig 3: Ground Point Locations (00G-1b)

G09124969

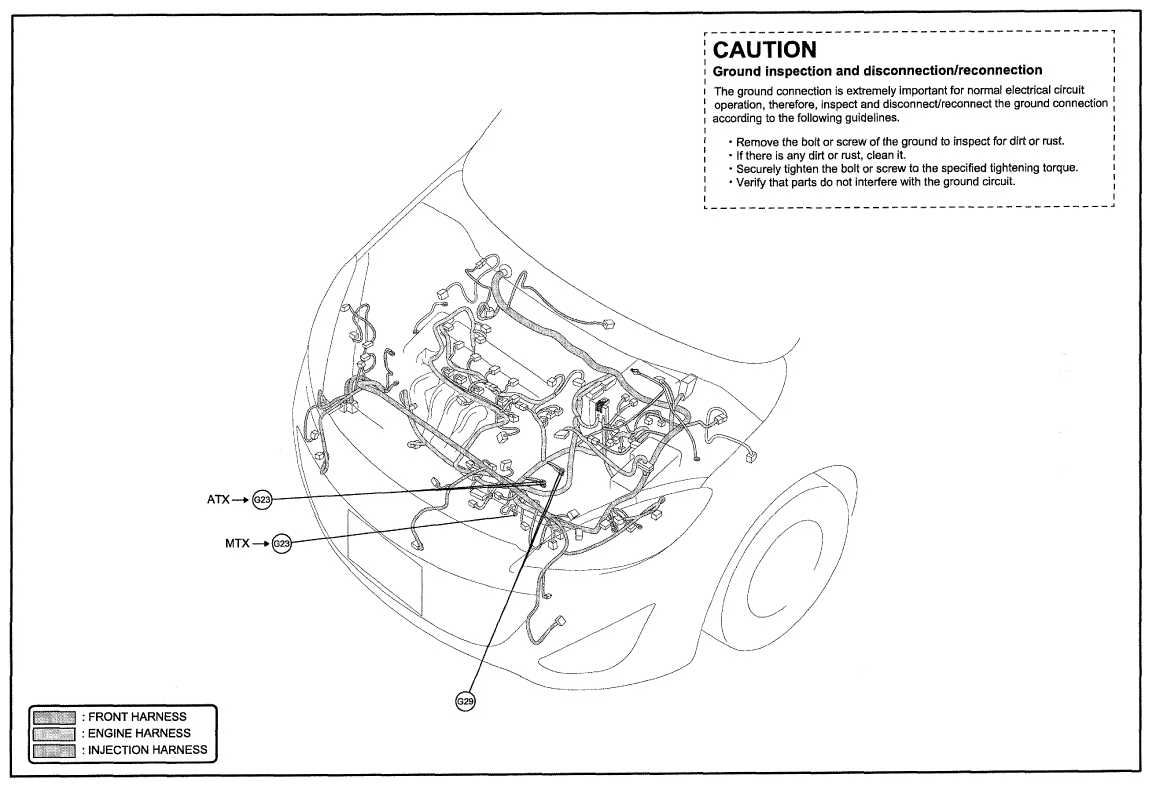

Fig 4: Ground Point Harness Locations (00G-1b)

G09124970

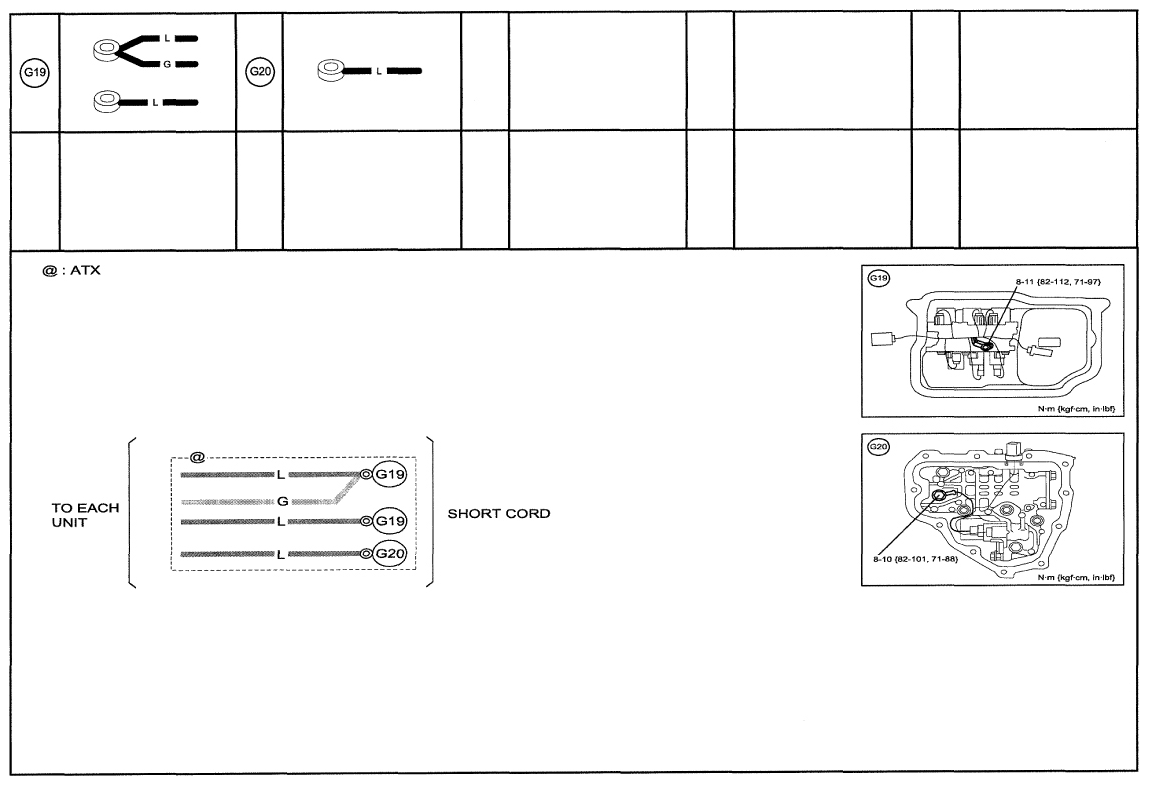

Fig 5: Ground Point Locations (00G-1c)

G09124971

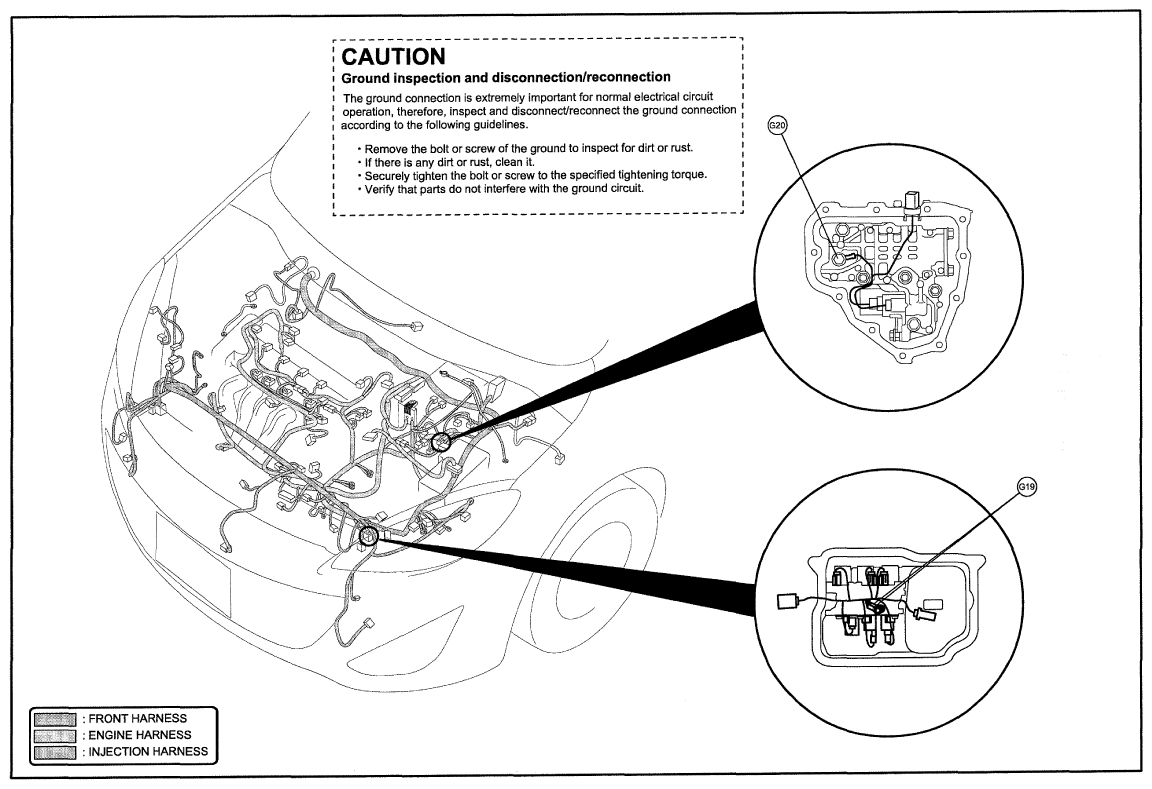

Fig 6: Ground Point Harness Locations (00G-1c)

G09124972

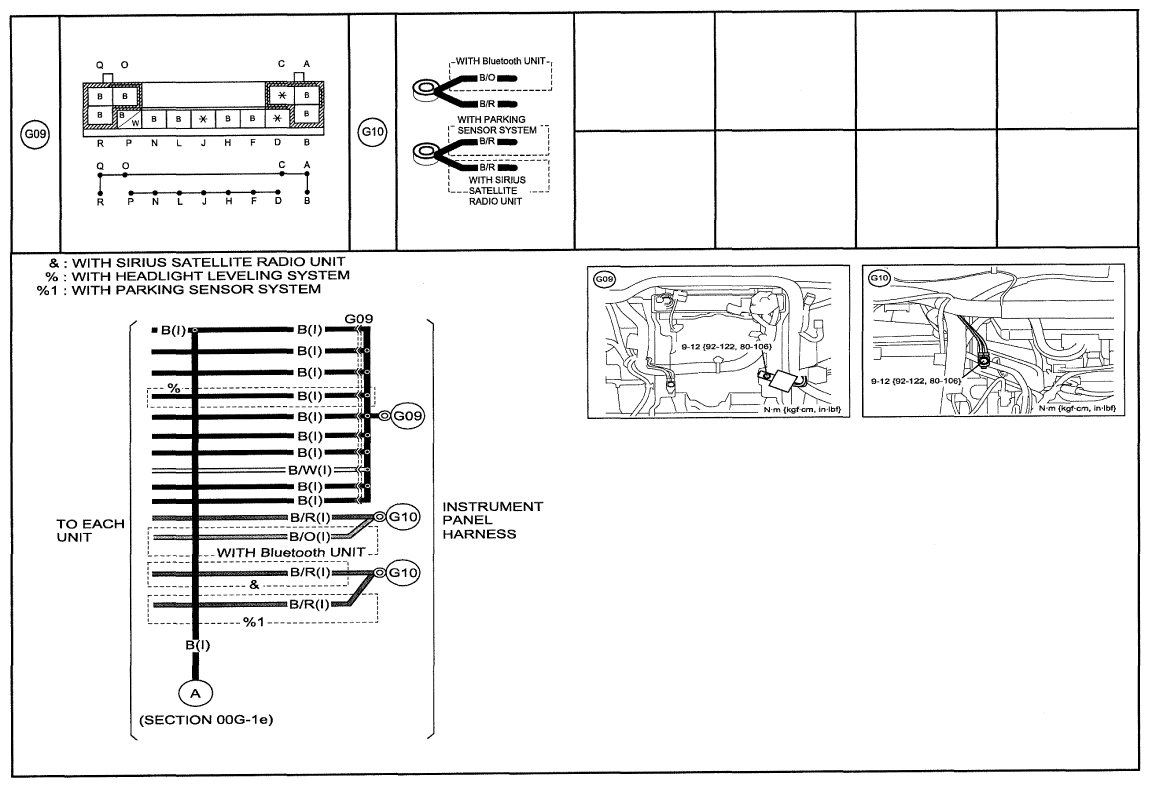

Fig 7: Ground Point Locations (00G-1d)

G09124973

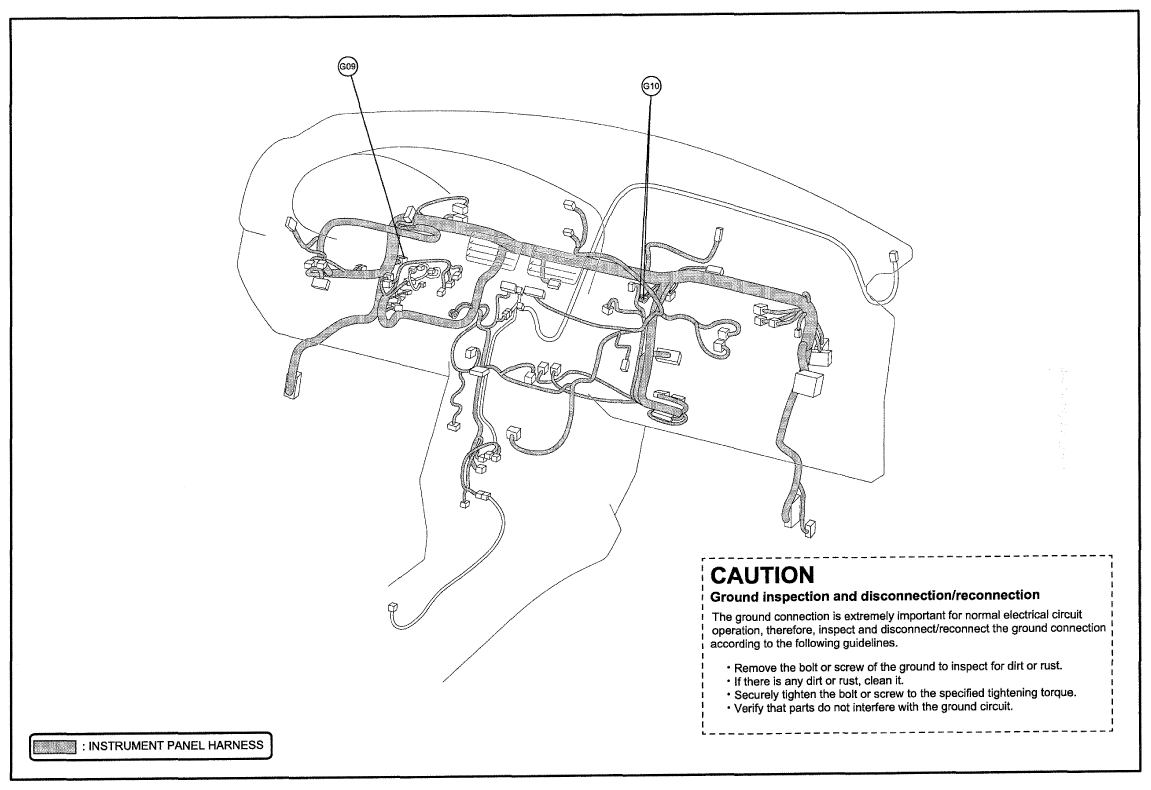

Fig 8: Ground Point Harness Locations (00G-1d)

G09124974

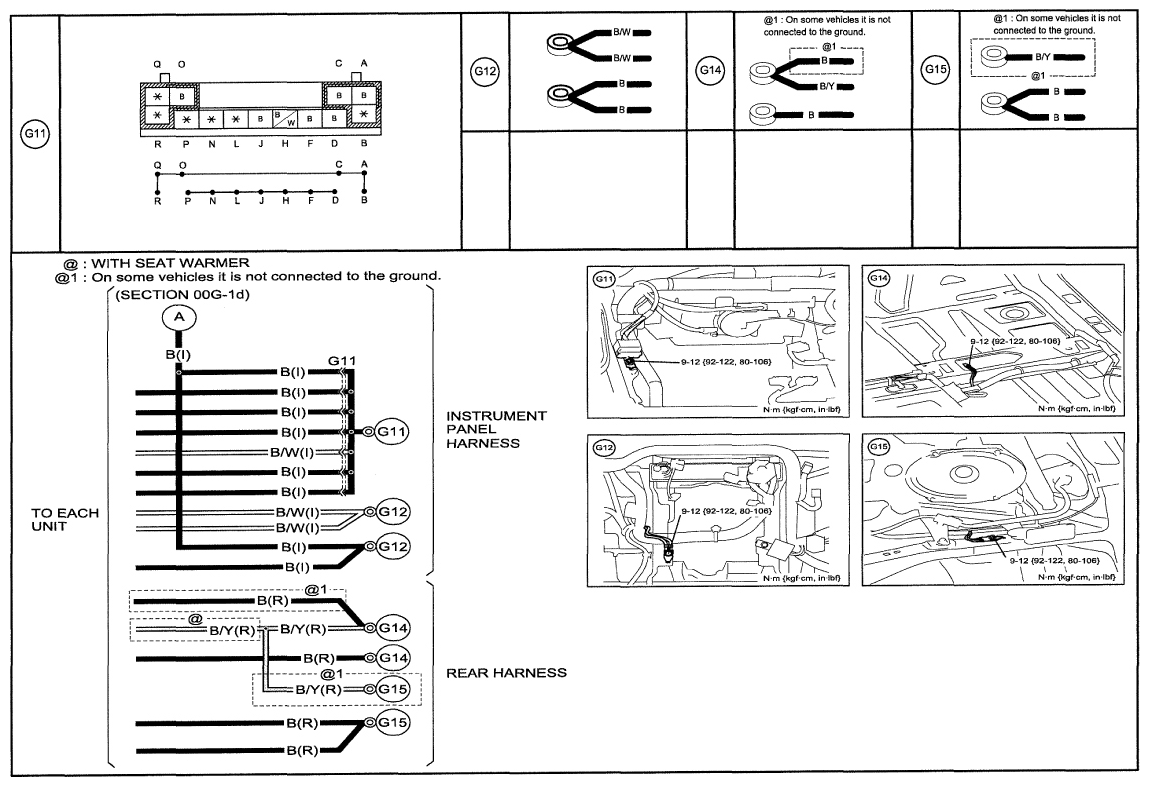

Fig 9: Ground Point Locations (00G-1e)

G09124975

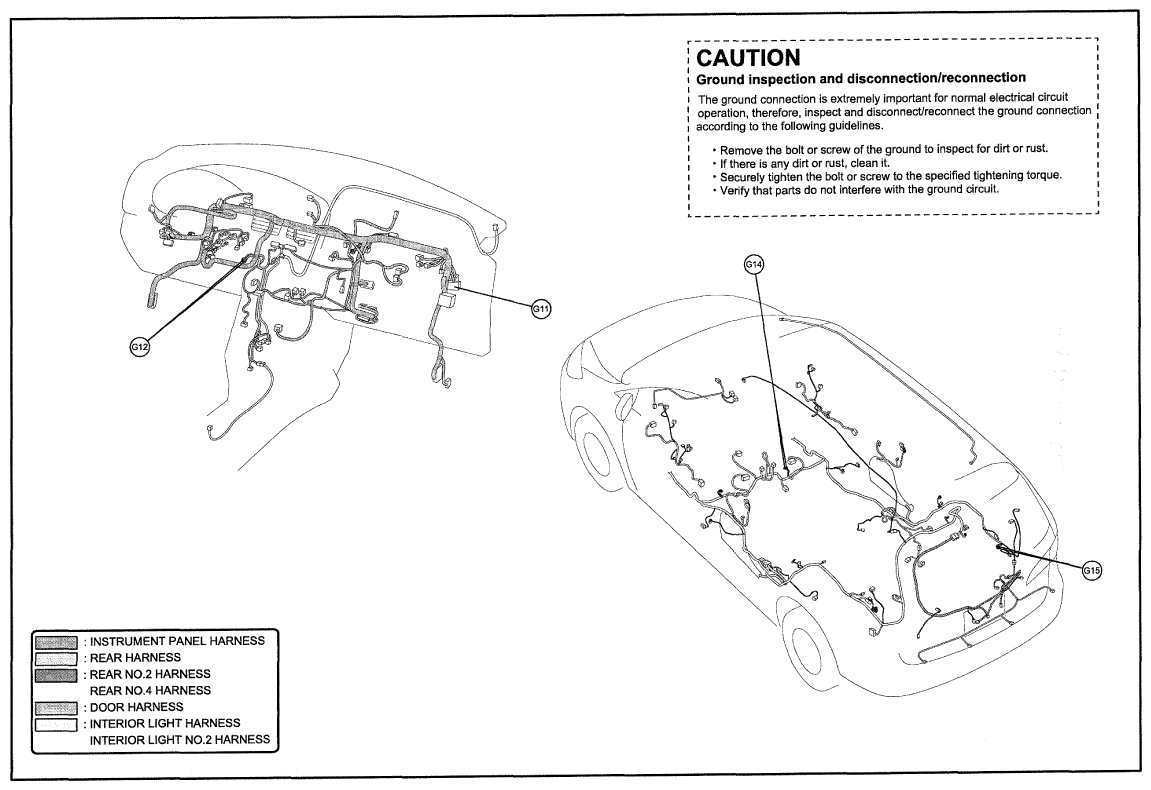

Fig 10: Ground Point Harness Locations (00G-1e)

G09124976

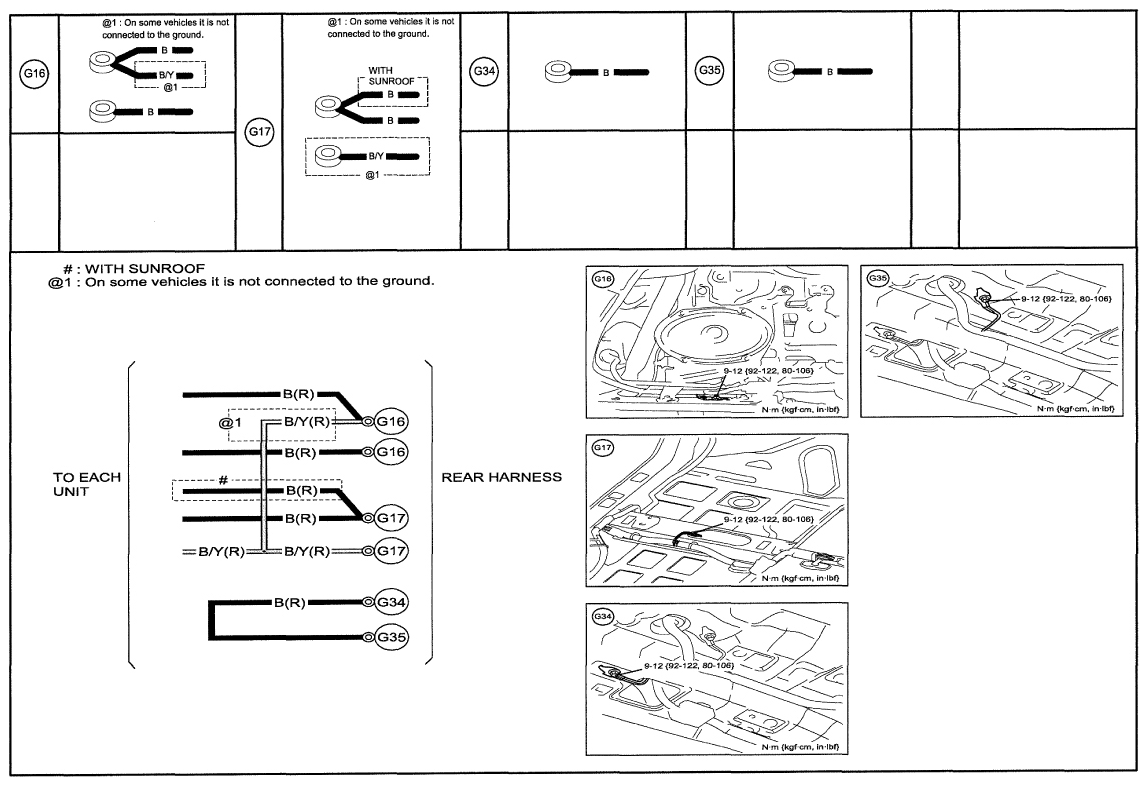

Fig 11: Ground Point Locations (00G-1f)

G09124977

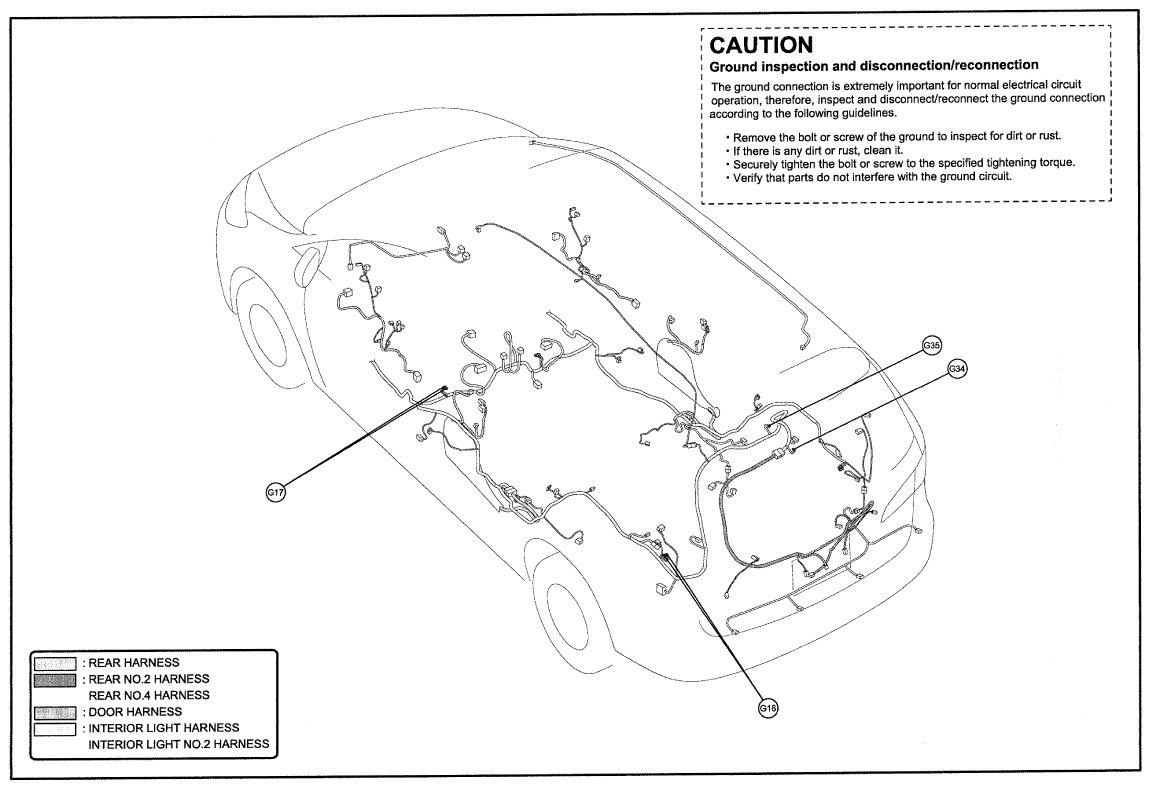

Fig 12: Ground Point Harness Locations (00G-1f)

G09124978

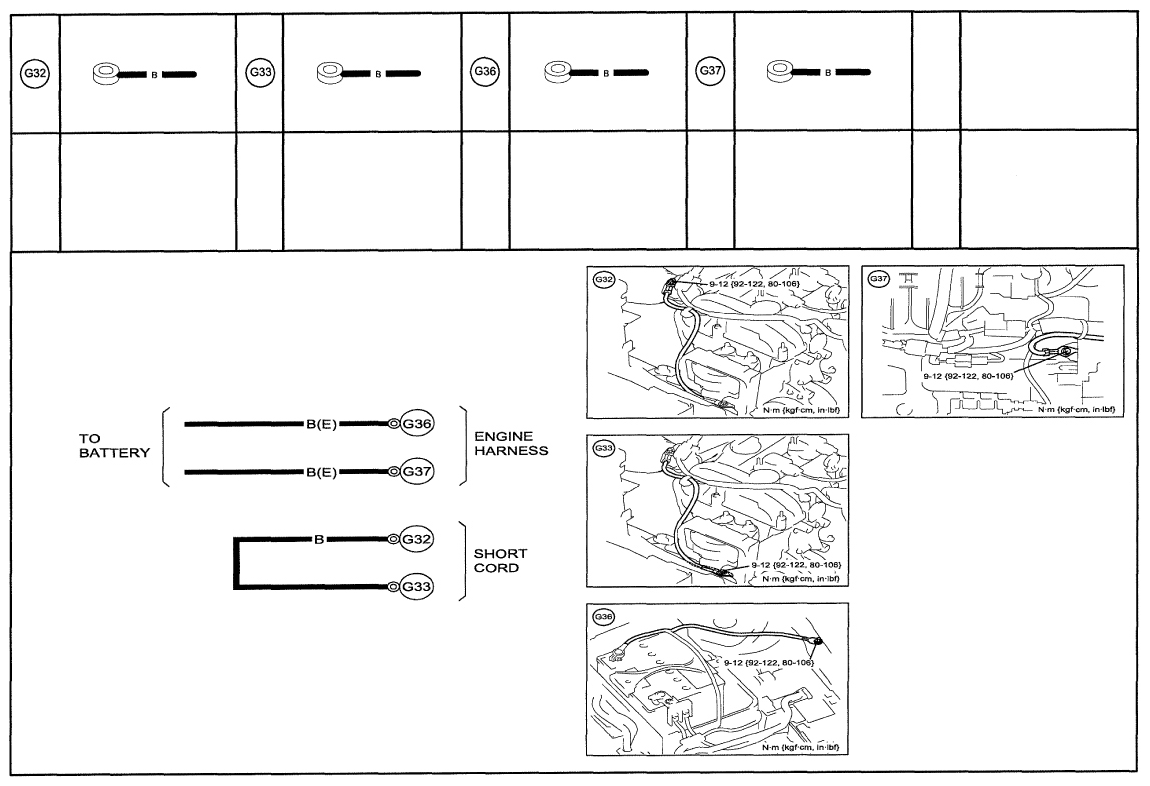

Fig 13: Ground Point Locations (00G-1g)

G09124979

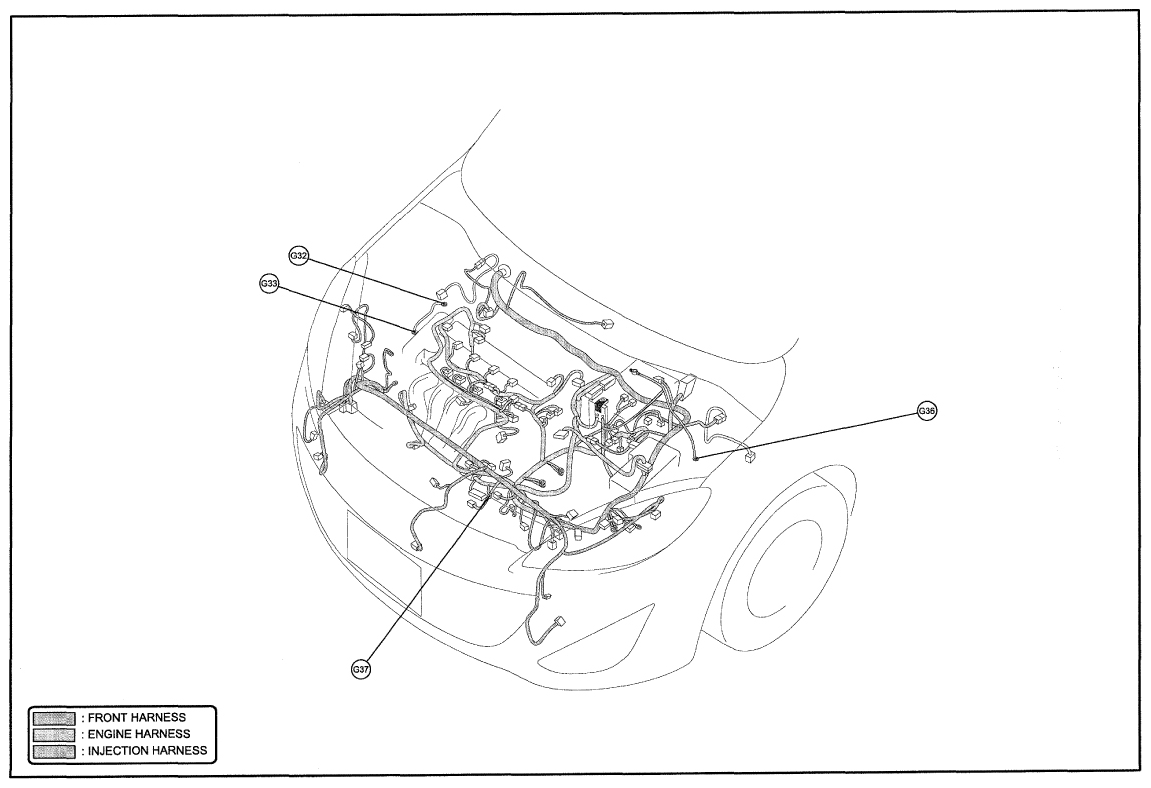

Fig 14: Ground Point Harness Locations (00G-1g)

G09124980
