Rearview Mirror Removal

  1. Insert a tape-wrapped flathead screwdriver into the position shown in the figure, press the center part of the spring (1), and pull out the rearview mirror in the direction of the arrow (2) while detaching the spring.

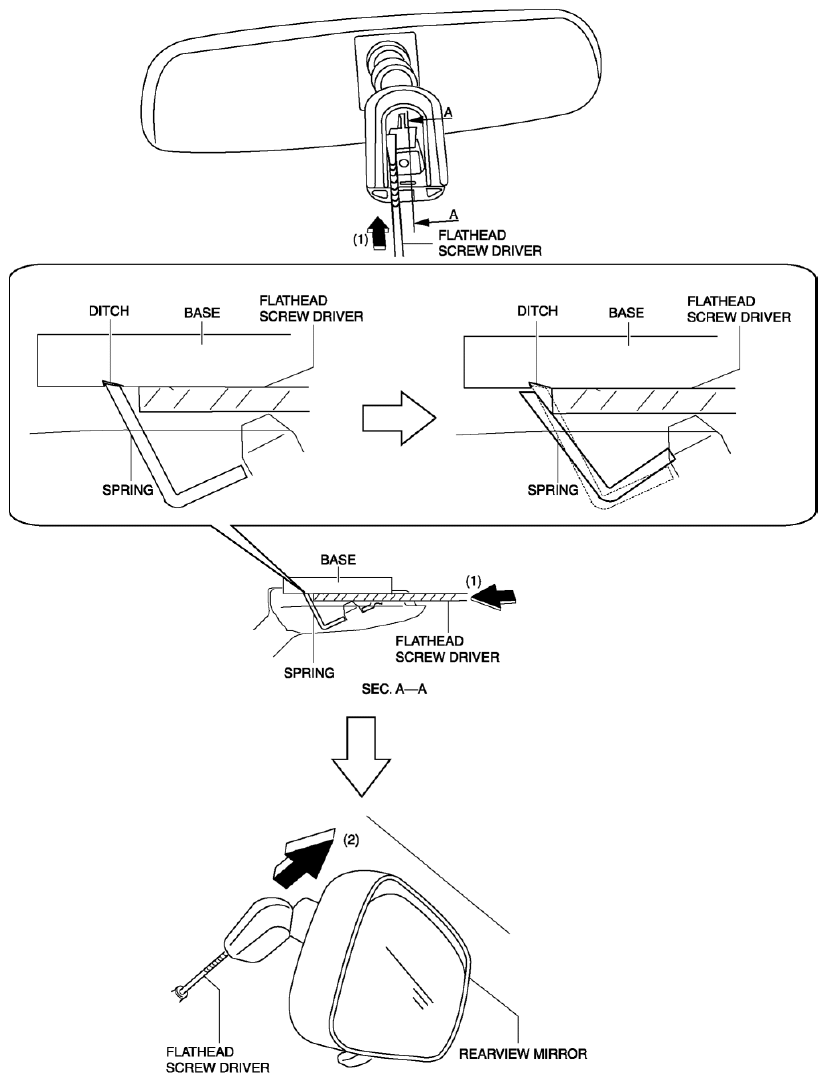

    Fig 1: Pressing Center Part Of Spring
    G08152893
    CAUTION:
    • Hold the rearview mirror with your hands and be careful not to allow it come into contact with the headliner. When removing the rearview mirror, it may hit the headliner and cause a damage.
