Sliding Door Latch Removal/Installation

  1. Fully close the sliding door glass.
  2. Disconnect the negative battery cable.
  3. Remove the following parts:
    1. Side door garnish (See SIDE DOOR GARNISH REMOVAL/INSTALLATION .)
    2. Rear side trim (See REAR SIDE TRIM REMOVAL/INSTALLATION .)
    3. Sliding door trim (See SLIDING DOOR TRIM REMOVAL/INSTALLATION .)
    4. Sliding door glass guide (See SLIDING DOOR GLASS REMOVAL/INSTALLATION .)
  4. Disconnect the cable from the lock-link.

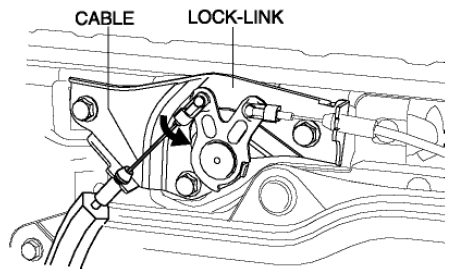

    Fig 1: Disconnecting Cable From Lock-Link
    G08153087
    CAUTION:
    • Do not rotate the lock-link for operations other than the lock release for the inner/outer handle. If the lock is released by rotating the lock-link, the cable could deform.
  5. Disconnect the cable from the remote controller.

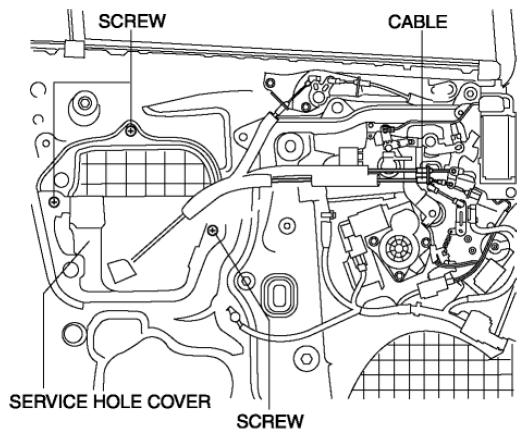

    Fig 2: Identifying Service Hole Cover And Screws
    G08153088
  6. Remove the screws.
  7. Remove the service hole cover.
  8. Remove the screws.

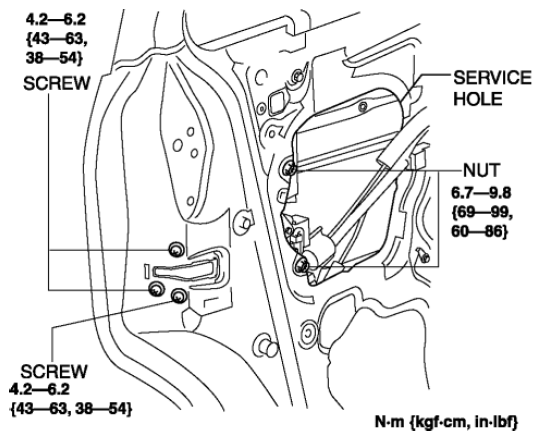

    Fig 3: Service Hole, Screws And Nut With Torque Specifications
    G08153089
  9. Remove the nuts.
  10. Remove the sliding door latch from the service hole.
  11. Install in the reverse order of removal.
