Liftgate Lock Striker Removal/Installation

  1. Remove the trunk end trim. (See TRUNK END TRIM REMOVAL/INSTALLATION .)
  2. Remove the bolts, then remove the liftgate lock striker.

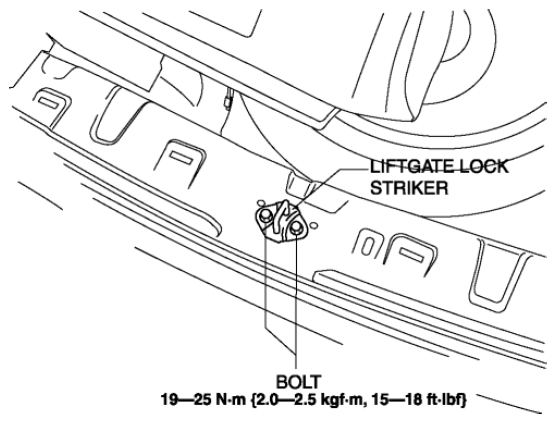

    Fig 1: Liftgate Lock Striker And Bolts With Torque Specifications
    G08153102
  3. Install in the reverse order of removal.
  4. Adjust the liftgate lock striker. (See LIFTGATE ADJUSTMENT .)
