Liftgate Lock Actuator Inspection

  1. Disconnect the negative battery cable.
  2. Remove the following parts:
    1. Liftgate upper trim (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION .)
    2. Liftgate side trim (See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION .)
    3. Liftgate recess (See LIFTGATE RECESS REMOVAL/INSTALLATION .)
    4. Liftgate lower trim (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION .)
    5. Liftgate latch and lock actuator (See LIFTGATE LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION .)
  3. Press in the latch lever using a flathead screwdriver to make the latch lever in latch condition.

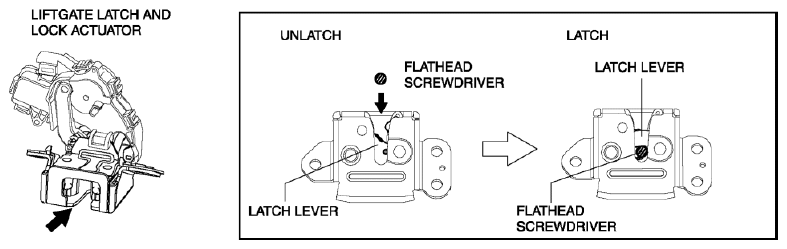

    Fig 1: Pressing Latch Lever Using Flathead Screwdriver
    G08153098
  4. Connect terminal D to the positive battery voltage, connect terminal B to the ground, and verify that the latch lever is released and the condition changes to the unlatch condition.

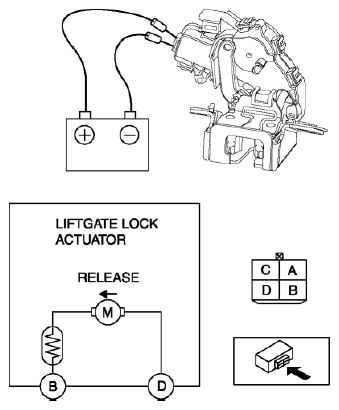

    Fig 2: Connecting Terminal D To Positive Battery Voltage
    G08153099
    • If the operation cannot be verified, replace the liftgate latch and lock actuator.
