Front Door Inner Handle

  1. Disconnect the negative battery cable.
  2. Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
  3. Insert a small flathead screwdriver into the tab position shown in the figure.

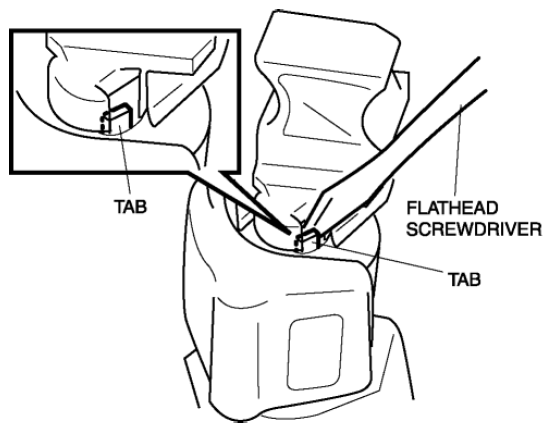

    Fig 1: Inserting Small Flathead Screwdriver Into Tab Position
    G08153034
  4. Release the lock while pulling the flathead screwdriver in the direction of arrow (1), pull the shaft up 5 mm {0.2 in}  in the direction of arrow (2), and detach it from the inner handle.

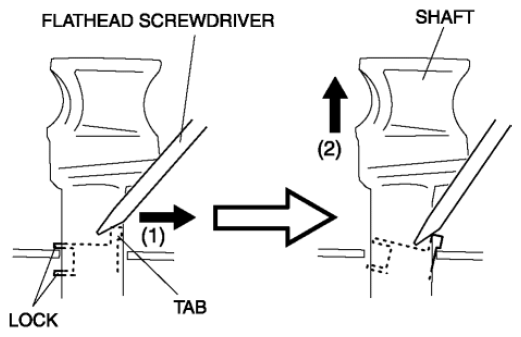

    Fig 2: Releasing Front Door Inner Handle Lock
    G08153035
  5. Pull the shaft up, remove the inner handle (pin) from the door module (installation hole), and remove the shaft.

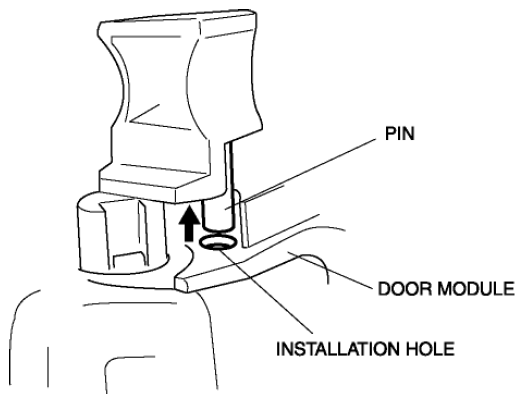

    Fig 3: Removing Inner Handle (Pin) From Door Module (Installation Hole)
    G08153036
  6. Remove the inner handle from the door module and remove the door lock knob cable and inner handle cable.
  7. Install in the reverse order of removal.
