Front Door Key Cylinder Switch Inspection

  1. Disconnect the negative battery cable.
  2. Remove the following parts:
    1. Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION .)
    2. Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
    3. Front door speaker (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION .)
    4. Front door glass (See FRONT DOOR GLASS REMOVAL/INSTALLATION .)
    5. Front inner handle (See INNER HANDLE REMOVAL/INSTALLATION .)
    6. Front door module panel (See FRONT DOOR MODULE PANEL REMOVAL/INSTALLATION .)
    7. Front door latch and lock actuator (See FRONT DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION .)
  3. Move the rod of the door key cylinder switch in the direction of the arrow shown in the figure, and verify that the continuity is as indicated in the table.

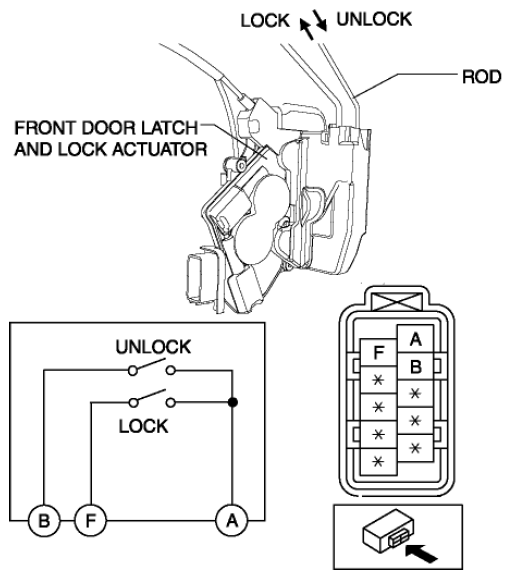

    Fig 1: Moving Rod Of Door Key Cylinder Switch
    G08153061
    • If not as indicated in the table, replace the front door latch and lock actuator.
      Fig 2: Front Door Key Cylinder Switch Continuity Chart
      G08153062
